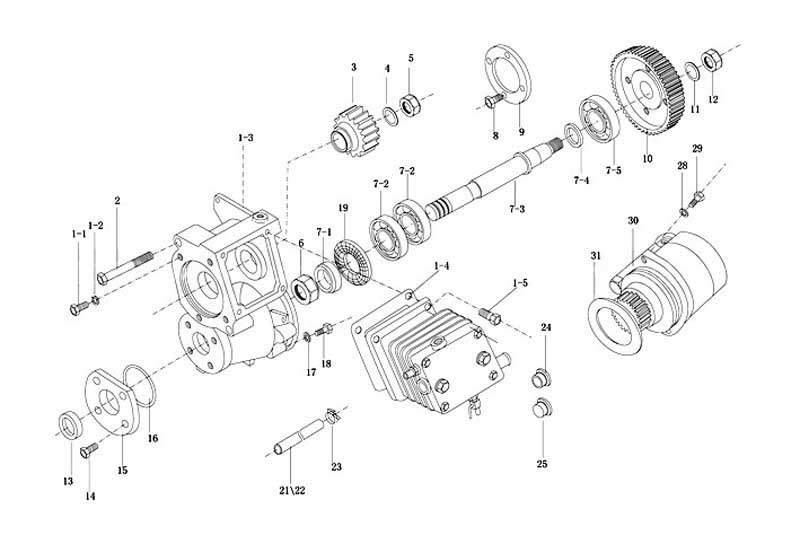

| AIR COMPRESSOR | ||
| WEICHAI WD615 ENGINE PARTS CATALOG | ||
| Serial | Part No. | Name |
| 1 | 612600130177 | Aircompussor |
| 1-1 | 90003802411 | Bolt |
| 1-2 | 90003930261 | Washer |
| 1-3 | AZ1560130063 | Crankcase |
| 1-4 | 61500130080 | Shim |
| 1-5 | 90003802438 | Bolt |
| 2 | 90003802561 | Bolt |
| 2 | 90003800569 | Bolt |
| 3 | 612600130173 | Gear |
| 4 | 609070161 | Flat washer shaft |
| 5 | 612600130001 | Nut |
| 6 | 612600130046 | Nut |
| 7 | 612600130124 | Drive shaft |
| 7-1 | 612600130047 | Bush |
| 7-2 | 61500080158 | Beating |
| 7-3 | 612600130122 | Drive shaft |
| 7-4 | 612600130123 | Block |
| 7-5 | 90003320154 | Bearing |
| 8 | 90003802432 | Bolt |
| 9 | 61500080165 | Cover |
| 10 | AZ1560130064 | Gear |
| 11 | 409020045 | Shim |
| 12 | 612600130001 | Nut |
| 13 | 90003070092 | Oil seal |
| 14 | 90003802415 | Bolt |
| 15 | 61500130097 | Oil seal seat |
| 16 | 192320002 | Seal ring |
| 17 | 90003932023 | Washer |
| 18 | 90003802419 | Bolt |
| 19 | 612600130073 | Plate |
| 20 | 90003098014 | Seal washer |
| 21 | 612600130025 | Rubber pipe |
| 22 | 612600130027 | Rubber pipe |
| 23 | 90003989336 | Clamp |
| 24 | B29114 | Cover |
| 25 | B29112 | Cover |
| 26 | 90003800035 | Bolt |
| 27 | 90003800458 | Bolt |
| 28 | 90003932023 | Spring washer |
| 29 | 90003802438 | Bolt |
| 30 | 61500130037 | Hydraulic pump |
| 31 | 81500130068 | Seal ring |
