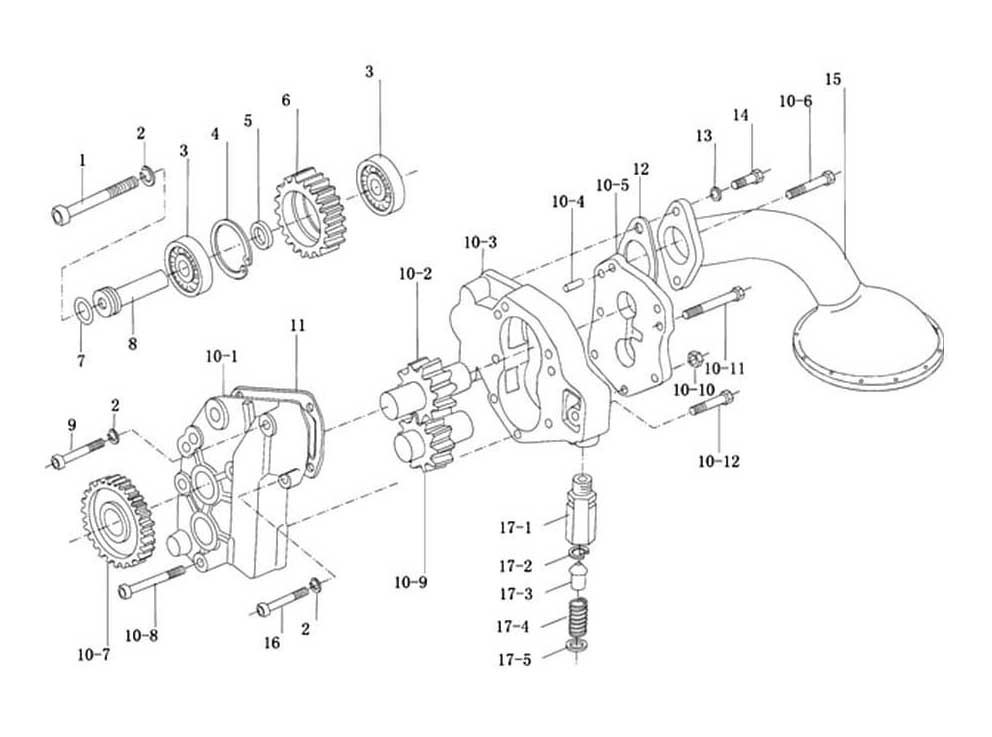

OIL PUMP & FILTER -ONE
WEICHAI WD615 ENGINE PARTS CATALOG
Serial Part No. Name
1 90003802578 Bolt
2 90003931122 Spring washer
3 900033114lO Bearing
4 90003934732 Snap ring
5 6140749 Ring
6 61407006l Gear
7 614070155 Seal ring
8 6140756 Gear shaft
9 90003800551 Bolt
10 AZl500070021A Oil pump
11 614070055 Shim
12 614070078 Shim
13 90003930271 Washer
14 90003802523 Bolt
15 61800070051 Filter
16 90003802527 Bolt
17 61500070099 Release valve C
10-1 61500070029 Front cover
10-10 90012210003 Nut
10-11 90003800458 Bolt
10-12 90003800441 Bolt
10-2 AZ1500070019A Gear assy
10-3 AZ1500070015A Housing
10-4 90003901420 Pin
10-5 61500070024 Rear cover
10-6   Screw
10-7 614070060 Gear
10-8 90003802569 Bolt
10-9 AZ1500070020A Gear
17-1 61500070098 Valve body
17-2 AZ9003930011 Snap ring
17-3 614070130 Valve
17-4 614070131 Spring
17-5 681270027 Shim
