INTERCOOLER INTAKE COVER & CRANKSHAFT VENTILATION CASE

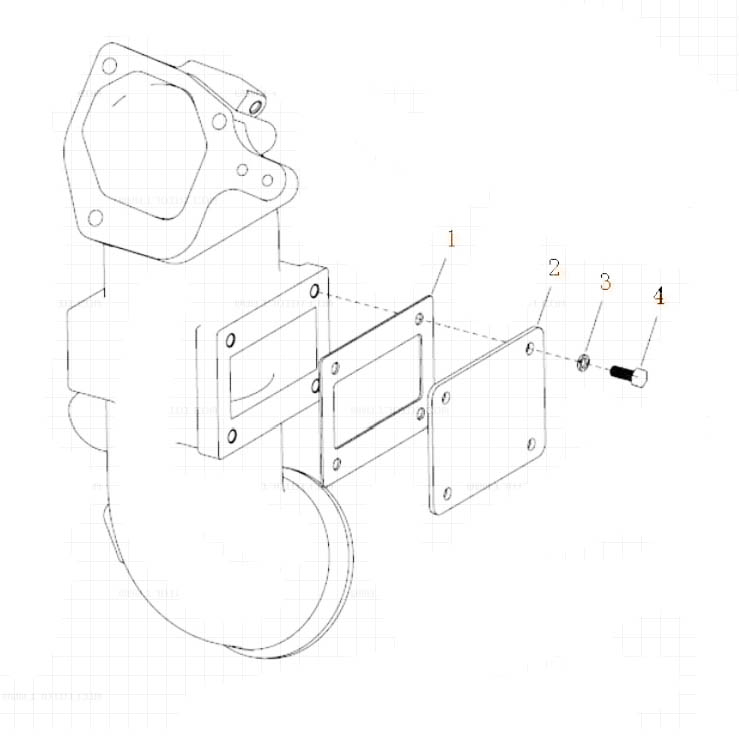

| INTERCOOLER INTAKE COVER | ||
| SINOTRUK MC11 ENGINE CATALOG | ||
| Serial | Part Number | Name |
| 4 | Q150B0616 | Hex bolt |
| 3 | Q40306 | Gasket |
| 2 | 202V08901-0188 | Cover |
| 1 | 202V08901-0189 | Gasket |

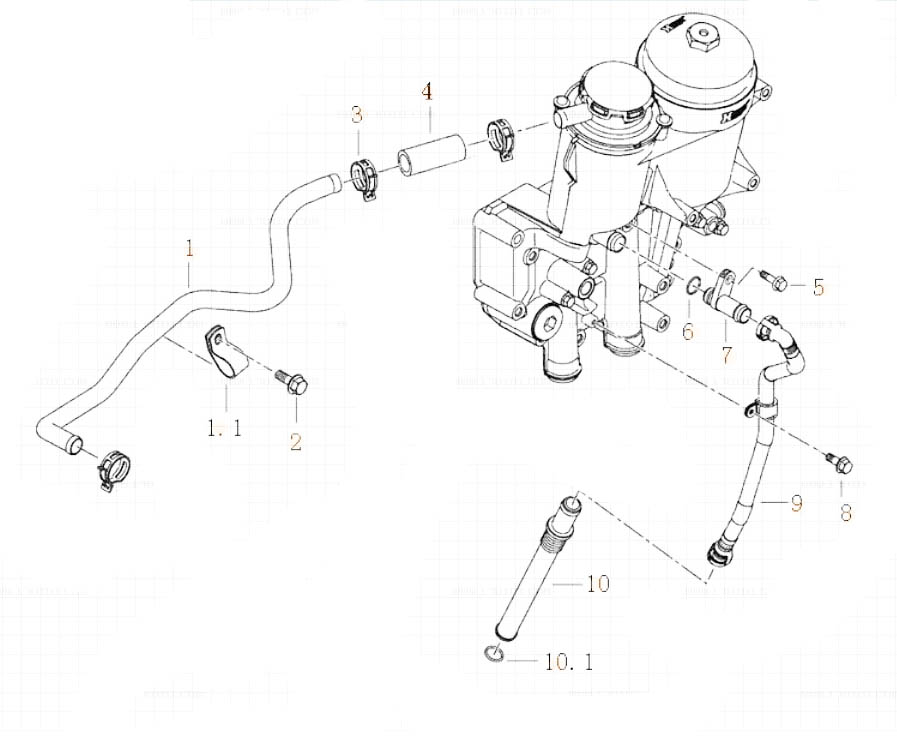

| CRANKSHAFT VENTILATION CASE | ||
| SINOTRUK MC11 ENGINE CATALOG | ||
| Serial | Part Number | Name |
| 1 | 201V01802-5675 | Separator outlet pipe assembly |
| 1.1 | 201V97401-0458 | Pipe clamps |
| 2 | MQ6-03216-8605 | Hexagon flange bolts |
| 3 | MQ6-67420-1229 | Flexible steel clamp |
| 4 | 200V96330-0346 | Connecting hoses |
| 5 | MQ6-03216-8206 | Hexagon flange bolts |
| 6 | MQ6-56936-0893 | O-ring |
| 7 | 200V98130-0549 | Joints |
| 8 | MQ6-03216-8203 | Hexagon flange bolts |
| 9 | 200V01802-5573 | Separator oil return pipe |
| 10 | 200V05701-0374 | Separator return pipe connector |
| 10.1 | MQ6-56936-1300 | O-ring |
