FIRST REAR DRIVING AXLE, SINOTRUK HOWO SPARE PARTS CATALOG

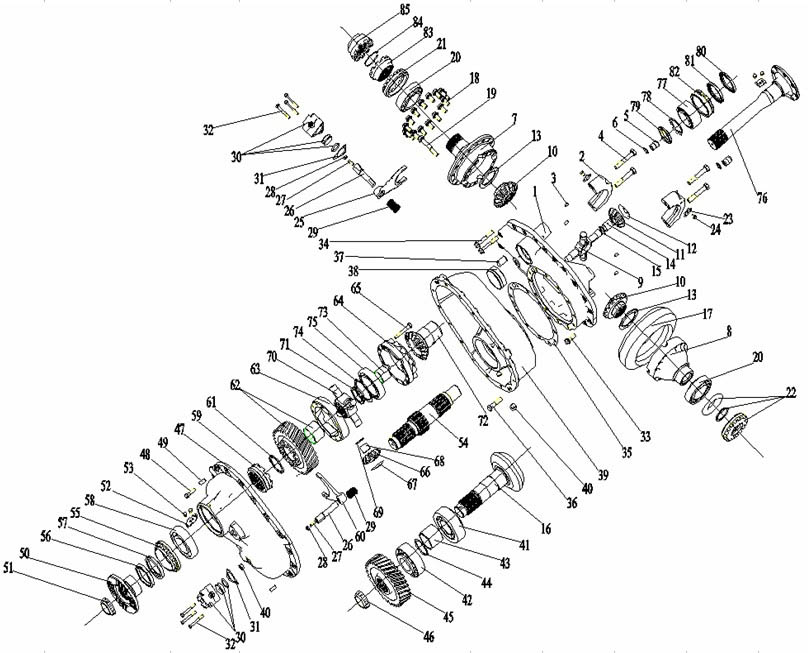

| FIRST REAR DRIVING AXLE, AC16 | |||
| Serial | Number | Name | Quantity |
| 1 | AZ9981320011 | first rear axle reducer case | 1 |
| 2 | AZ9981320015 | bearing cap | 2 |
| 3 | Q5210820 | column pin | 4 |
| 4 | AZ9981320016 | hexagonal flange bearing surface with bolt | 4 |
| 5 | AZ9981320017 | positioning pin | 2 |
| 6 | Q43325 | flatten retaining ring for shaft | 2 |
| 7 | AZ9981320021 | differential half case4 with flange (ratio 5.45/6/5) | 1 |
| 7 | AZ9981320321 | differential half case with flange (ratio 4.77) | 1 |
| 8 | AZ9981320022 | differential half case | 1 |
| 9 | AZ9981320031 | universal joint shaft | 1 |
| 10 | AZ9981320040 | axle shaft gear | 2 |
| 11 | AZ9231320152 | planetary gear | 4 |
| 12 | AZ9231320153 | gasket for planetary gear | 4 |
| 13 | AZ9981320201-AZ9981320205 | adjusting gasket | 2 |
| 14 | AZ9231320159 | bushing | 4 |
| 15 | AZ9231320160 | bushing retaining gasket | 4 |
| 16 | AZ9981320053 | first rear axle driving cone gear (17 teeth, ratio 6.5) | 1 |
| 16 | AZ9981320054 | first rear axle driving cone gear (24 teeth, ratio 4.77) | 1 |
| 16 | AZ9981320052 | first rear axle driving cone gear (21 teeth, ratio 5.45) | 1 |
| 17 | AZ9981320064 | first rear axle driven cone gear (29 teeth, ratio 4.77) | 1 |
| 17 | AZ9981320062 | first rear axle driving cone gear (29 teeth, ratio 5.45) | 1 |
| 17 | AZ9981320063 | first rear axle driving cone gear (28 teeth, ratio 6.5) | 1 |
| 18 | AZ9981320028 | hexagonal flange bearing surface with bolt (ratio 5.45/6.5) | 16 |
| 18 | AZ9981320048 | hexagonal flange bearing surface with bolt (ratio 4.77) | 16 |
| 19 | AZ9981320029 | hexagonal flange bearing surface with bolt (ratio 4.77/5.45/6.5) | 12 |
| 20 | WG9981033115 | column rolling bearing | 2 |
| 21 | AZ9981320041 | adjusting nut for differential | 1 |
| 22 | AZ9981320042 | adjusting nut assy for differential | 1 |
| 23 | AZ9981320043 | locking plate | 2 |
| 24 | Q150B0812 | hexagon head bolt | 2 |
| 25 | AZ9981320073 | shifting fork | 1 |
| 26 | AZ9981320074 | shifting shaft | 2 |
| 27 | Q2821025 | slotting flat head locking screw | 2 |
| 28 | Q350B10 | hexagonal thin nut | 2 |
| 29 | AZ9981320075 | spring | 2 |
| 30 | AZ9981320076 | cylinder assy | 2 |
| 31 | AZ9981320080 | gasket | 2 |
| 32 | Q150B0870 | hexagon head bolt | 6 |
| 33 | AZ9981320018 | hexagonal flange bearing surface with bolt | 18 |
| 34 | AZ9981320019 | hexagonal flange bearing surface with bolt | 2 |
| 35 | AZ9981320081-AZ9981320084 | adjusting gasket | 1 |
| 36 | Q151B1460TF2 | hexagon head bolt | 12 |
| 37 | AZ9981320181 | positioning pin | 1 |
| 38 | WG9981320086 | sealing pipe | 1 |
| 39 | AZ9981320101 | bridge box | 1 |
| 40 | AZ9003960024 | inner hexagonal head screw plug | 2 |
| 41 | WG998132315B | column rolling bearing | 1 |
| 42 | WG9981032313 | column rolling bearing | 1 |
| 43 | AZ9981320091 | spacer bush | 1 |
| 44 | AZ9981320182-AZ9981320197 | adjusting gasket | 1 |
| 45 | AZ9981320107 | driven column gear | 1 |
| 46、51 | AZ9981320106 | locking nut | 1 |
| 47 | AZ9981320102 | bridge box cap | 1 |
| 48 | Q151C1240 | hexagon head bolt | 16 |
| 49 | Q5211230 | column pin | 2 |
| 50 | AZ9981320110 | input flange assy | 1 |
| 52 | AZ9981320121 | locking plate | 2 |
| 53 | Q150B0612 | hexagon head bolt | 4 |
| 54 | AZ9981320105 | input shaft | 1 |
| 55 | AZ9981320120 | adjusting nut | 1 |
| 56 | WG9981320123 | seal for shaft | 1 |
| 57 | WG9981320124 | seal for shaft | 1 |
| 58 | 6313 | ball bearing | 1 |
| 59 | AZ9981320126 | shift sleeve | 1 |
| 60 | AZ9981320127 | shifting fork | 1 |
| 61 | AZ9981320211-AZ9981320215 | adjusting gasket | 1 |
| 62 | AZ9981320130 | driving column gear assy | 1 |
| 63 | AZ9981320137 | front half case for differential | 1 |
| 64 | AZ9981320138 | rear half case for differential | 1 |
| 65 | Q151C1280TF2 | hexagon head bolt | 12 |
| 66 | AZ9231320227 | planetary gear | 4 |
| 67 | AZ9231320224 | planetary gear gasket | 4 |
| 68 | AZ9231320221 | bushing | 4 |
| 69 | AZ9231320222 | bushing retaining gasket | 4 |
| 70 | AZ9981320139 | universal joint shaft | 1 |
| 71 | AZ9981320133 | locking nut | 1 |
| 71 | WG9981320133 | driving shaft nut | |
| 72 | WG9981320140 | rear half axle gear | 1 |
| 73 | WG9981320167 | bushing | 1 |
| 74 | AZ9981320141-AZ9981320145 | adjusting gasket | 1 |
| 75 | 6216 | ball bearing | 1 |
| 76 | AZ9231320147 | driving shaft | 1 |
| 77 | WG9231326212 | cone rolling bearing | 1 |
| 78 | AZ9981320148 | locking gasket | 1 |
| 79 | AZ9981320149 | locking nut | 1 |
| 80 | WG9981320161 | seal for shaft | 1 |
| 81 | WG9981320162 | seal for shaft | 1 |
| 82 | AZ9981320163 | adjusting nut | 1 |
| 83 | AZ9981320071 | fixed shift sleeve | 1 |
| 84 | AZ9981320046 | thrust steel | 1 |
| 85 | AZ9981320072 | sliding shift sleeve | 1 |
