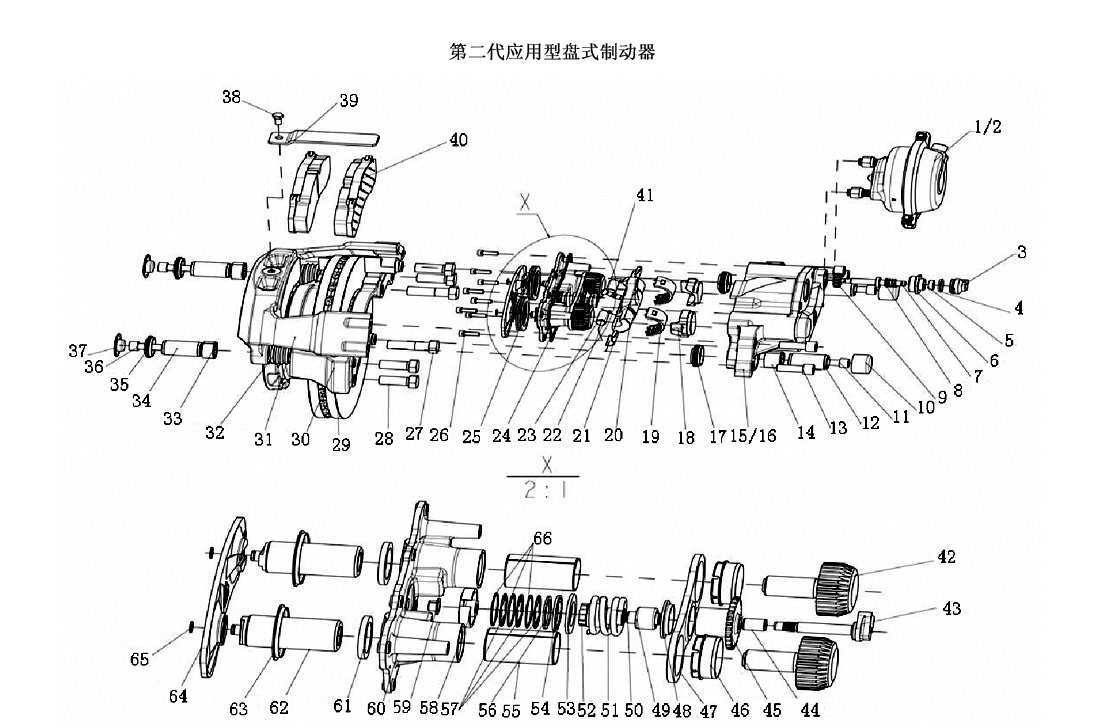

HF7/9 Front Axle, Second Generation Disk Brake, Sinotruk Parts Catalogs
SECOND GENERATION DISK BRAKE, SINOTRUK 2010 | |||
SINOTRUK HOWO SPARE PARTS CATALOG | |||
powered by CHINA HEAVY TRUCK PARTS STORE CO LTD, www.sinotruk-parts-store.com | |||
Serial | Number | Name | Quantity |
1 | WG9100360410 | front left brake chamber 22″ | 1 |
2 | WG9100360420 | front right brake chamber 22″ | 1 |
3 | WG9100443009 | rubber hat | 2 |
4 | AZ9100443010 | hand-adjusting retaining ring | 2 |
5 | WG9100443011 | seal | 2 |
6 | WG9100443008 | head-adjusting seat | 2 |
7 | WG9100443041 | hand-adjusting shaft | 2 |
8 | WG9100443043 | spring | 2 |
9 | WG9100443042 | hand-adjusting gear | 2 |
10 | AZ9100443016 | sliding pin cap | 4 |
11、36 | Q218B1450TF2 | inner hexagon column screw | 4 |
12、34 | AZ9100443013 | sliding pin | 4 |
13 | Q218B1645TF2 | inner hexagon column screw | 8 |
14 | WG9100443014 | sliding pin bushing | 4 |
15 | AZ9100443301 | left clamp | 1 |
16 | AZ9100443401 | right clamp | 1 |
17、32、35 | WG9100443017 | sliding pin protective sleeve | 4 |
18 | AZ9100443023 | half moon bearing block | 4 |
19 | WG9100443022 | half moon bearing assy | 4 |
20 | WG9100443031 | leverage | 2 |
21 | WG9100443033 | bushing | 4 |
22 | WG9100443034 | rivet | 4 |
23 | AZ9100443021 | column pin | 4 |
24 | WG9100443024 | rubber gasket | 2 |
25 | WG9100443027 | piston dust cover | 4 |
26 | Q218B0825TF2 | inner hexagon column screw | 16 |
27 | Q151B2050TF2 | hexagon head bolt | 8 |
28 | Q151B2070TF2 | hexagon head bolt | 4 |
29 | WG9100443001 | disk plate | 2 |
30 | AZ9100443002 | support | 2 |
31 | AZ9100443004 | clamp bridge | 2 |
33 | WG9100443019 | sliding pin bushing | 4 |
37 | AZ9100443018 | sliding cap | 4 |
38 | Q150B1020TF2 | hexagon head bolt | 2 |
39 | AZ9100443006 | pressing plate | 2 |
40 | WG9100443050 | brake block | 4 |
41 | WG9100443032 | driving head | 2 |
42 | WG9100443532 | pushing rod | 4 |
43 | WG9100443511 | main adjusting fork | 2 |
44 | WG9100443528 | main adjusting bushing | 2 |
45 | WG9100443512 | main adjusting gear | 2 |
46 | WG9100443525 | pushing rod isolating bushing | 4 |
47 | AZ9100443518 | main adjusting pressing plate | 2 |
48 | WG9100443524 | main adjusting isolating bushing | 2 |
49 | WG9100443526 | single direction clutch | 2 |
50 | WG9100443529 | clutch shaft bushing | 2 |
51 | WG9100443519 | spring | 2 |
52 | WG9100443515 | overload clutch shaft | 2 |
53 | WG9100443513 | supporting seat | 2 |
54 | WG9100443520 | thrust bearing assy | 2 |
55 | WG9100443530 | piston bushing | 4 |
56 | WG9100443521 | bearing plate | 2 |
57 | WG9100443517 | overload clutch lining | 6 |
58 | WG9100443514 | overload clutch shell | 2 |
59 | WG9100443536 | revers bearing | 2 |
60 | AZ9100443527 | piston support | 2 |
61 | WG9100443539 | oil seal | 4 |
62 | WG9100443531 | piston | 4 |
63 | WG9100443534 | dust cover compressing ring | 4 |
64 | AZ9100443533 | thrust plate | 2 |
65 | Q43112 | elastic retaining ring for shaft | 4 |
66 | WG9100443516 | overload clutch outer lining | 6 |
