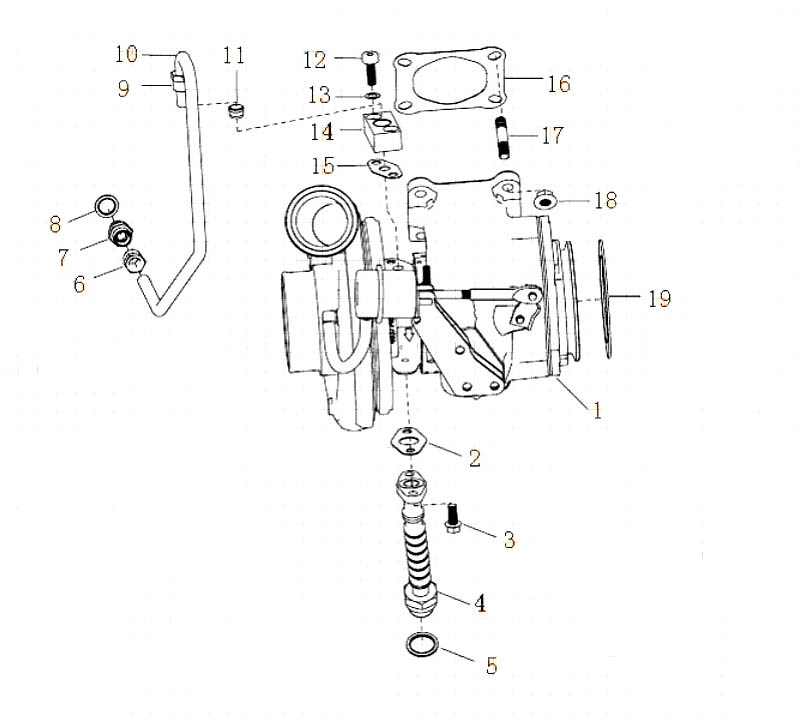

TURBO CHARGER, SITRAK MC11 ENGINE PARTS CATALOG
| TURBO CHARGER | ||
|---|---|---|
| SINOTRUK MC11 ENGINE CATALOG | ||
| Serial | Part Number | Name |
| 1 | 202V09100-7924 | Turbocharger |
| 2 | 200V96601-0576 | Turbocharger return pipe gasket |
| 3 | MQ6-03216-8304 | Hexagon flange bolts |
| 4 | 201V05703-5395 | Turbocharger oil return pipe |
| 5 | MQ6-56631-0111 | Composite gasket |
| 6 | MQ6-71030-2114 | Union nut |
| 7 | MQ6-71060-2104 | Connector |
| 8 | MQ6-56631-0107 | Composite gasket |
| 9 | 190003559513 | Union nut |
| 10 | 201V05702-2913 | Tube |
| 11 | MQ6-71020-0418 | Connector |
| 12 | 190003862428 | Hexagon socket head cap screws |
| 13 | VG188250083 | Self-locking washers |
| 14 | VG1560110152 | Inlet pipe flange |
| 15 | VG609E110050 | Inlet pipe gasket |
| 16 | 201V08901-0182 | Turbocharger gaskets |
| 17 | 200V90210-0017 | Stud |
| 18 | MQ6-11229-0023 | Hexagon flange nuts |
| 19 | 202V08901-0210 | Outlet gasket |
