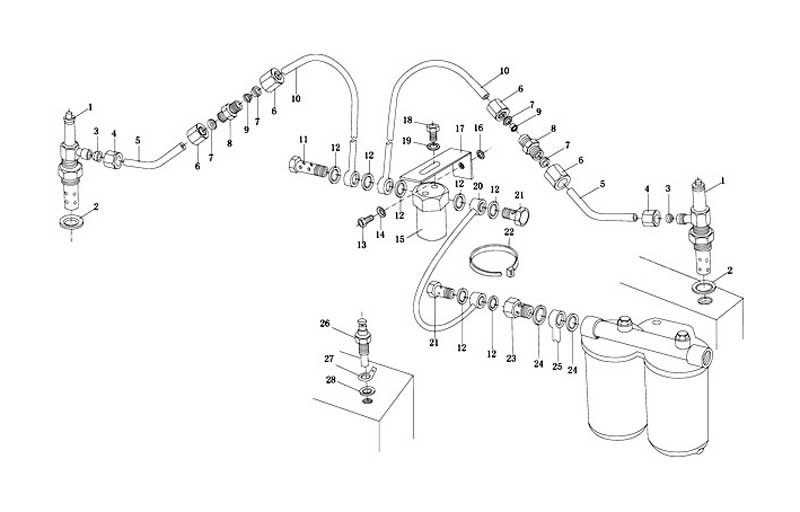

Flame Heat, Howo Parts Catalogue
| FLAME HEAT | ||
| WEICHAI WD615 ENGINE PARTS CATALOG | ||
| Serial | Part No. | Name |
| 1 | 61200090162 | Flamespark plug |
| 2 | 90003098029 | Seal washer |
| 3 | 90003059557 | Clip |
| 4 | 90003559506 | Nut |
| 5 | 81560080327 | Pipe |
| 6 | 90003559516 | Nut |
| 7 | 90003559561 | Clip |
| 8 | 90003559462 | Connector |
| 9 | 90014280016 | Bush |
| 10 | AZ1500080154 | Fuel oil pipe |
| 11 | 81560080212 | Bolt |
| 12 | 90003098010 | Seal washer |
| 13 | 90003802415 | Bolt |
| 14 | 90003932023 | Spring washer |
| 15 | 61200090163 | Electromagnetic valve |
| 16 | 90003930261 | Washer |
| 17 | 99012360441 | Bracket |
| 18 | 90003802307 | Bolt |
| 19 | 90003931082 | Spring washer |
| 20 | AZ1500080159 | Fuel oil pipe |
| 21 | 90003962607 | Bolt |
| 22 | 90003171697 | Plastics fastener |
| 23 | 609E110070 | Bolt |
| 24 | 90003098015 | Seal washer |
| 25 | AZ1500080155 | Fuel pipe |
| 26 | AZ1500090132 | Thermometer Sensor |
| 27 | 79000770116 | Plug |
| 28 | 90003098010 | Seal washer |
