Oil Pump Filter-Two, Howo Parts Catalogue

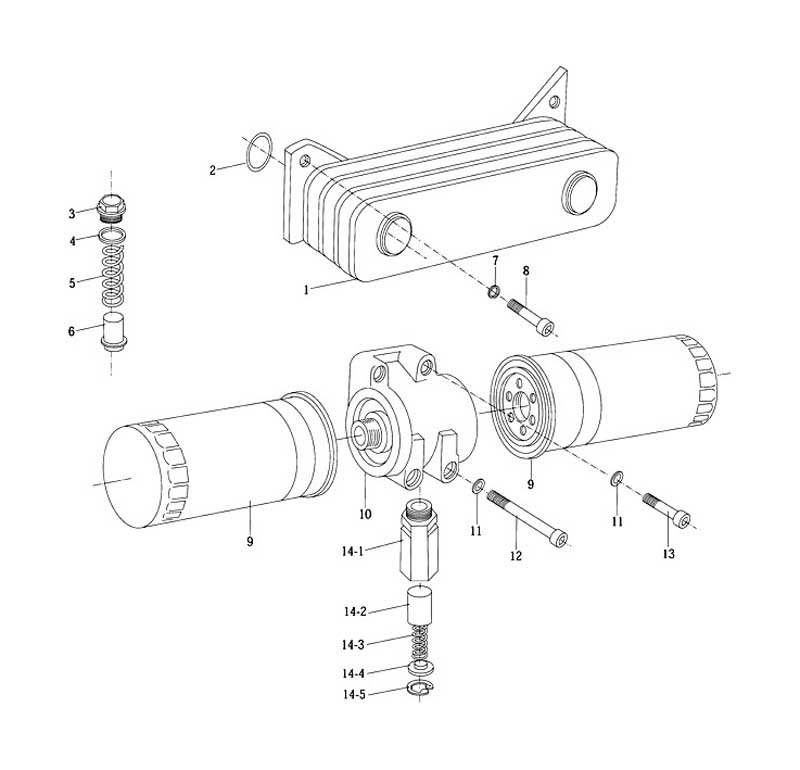

| OIL PUMP & FILTER -TWO | ||
| WEICHAI WD615 ENGINE PARTS CATALOG | ||
| Serial | Part No. | Name |
| 1 | 61500010334 | 0il radiator |
| 2 | 81400010032 | Seal ring |
| 3 | 90003962051 | Plug |
| 4 | 612600010735 | Washer |
| 5 | 614070068 | Relief valve spring |
| 6 | 614070069 | Relief valve |
| 7 | 90003932023 | Spring washer |
| 8 | 90003802419 | Screw |
| 9 | 61000070005 | Filter |
| 10 | 61500070051 | Filter head |
| 11 | 90003932023 | Spring washer |
| 12 | 90003862482 | Screw |
| 13 | 90003862443 | Screw |
| 14 | AZ1500070097 | Control valve |
| 14-1 | AZ1500070096 | Valve body |
| 14-2 | 407070032 | Valve |
| 14-3 | 407070034 | Spring support |
| 14-4 | 4139070059 | Spring |
| 14-5 | AZ90003930012 | Snap ring |
