Door, Glass and Accessories, Howo Cabin Parts Catalogs


Door, Glass and Accessories, Howo Cabin Parts Catalogs

Key Words´╝Üsinotruk parts catalog pdfhowo cabin parts catalog

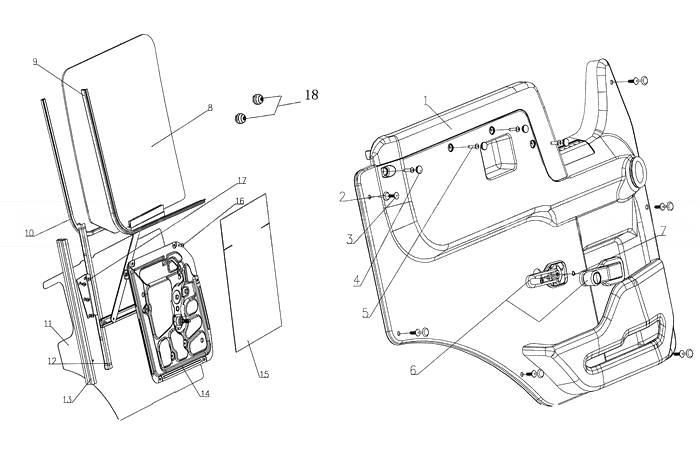

Door, glass and accessories
HOWO TRUCK CAB
Sequence Name Part No.
1 Door guard plate assembly - left door WG1642330020
2 Rivets AZ1642930005
3 Rivets AZ1642930006
4 Screw cap AZ1642930007
5 Cross recessed pan head screws Q2140620
6 Handle WG1642330001
7 Shaft circlip Q43107
8 Left door glass assembly AZ1642330060
9 Sealing strip WG1642330011
10 Outer sealing strip WG1642330013
11 Door protective layer AZ1642330019
12 Left glass slide WG1642330009
13 Chute seal WG1642330015
14 Left glass lifter assembly WG1642330003
15 Film AZ1642330051
16 Cross recessed pan head screws Q2140612
17 Cross recessed pan head screws Q2140610
18 Rubber clog AZ1642930030
19 Left corner window WG1642350003
20 Left corner  window seal WG1642350001
20 Right corner window seal WG1642350002
30 Left door assembly with glass, door accessories AZ1642210001A
30 Left door assembly AZ1642210001
40 Right door assembly with glass, door accessories AZ1642210002A
40 Right door assembly AZ1642210002
12a Right glass slide WG1642330010
14a Right glass lifter assembly WG1642330004
19a Right corner window WG1642350004
1a Door guard plate assembly - the right door WG1642330040
8a Right door glass assembly AZ1642330061
