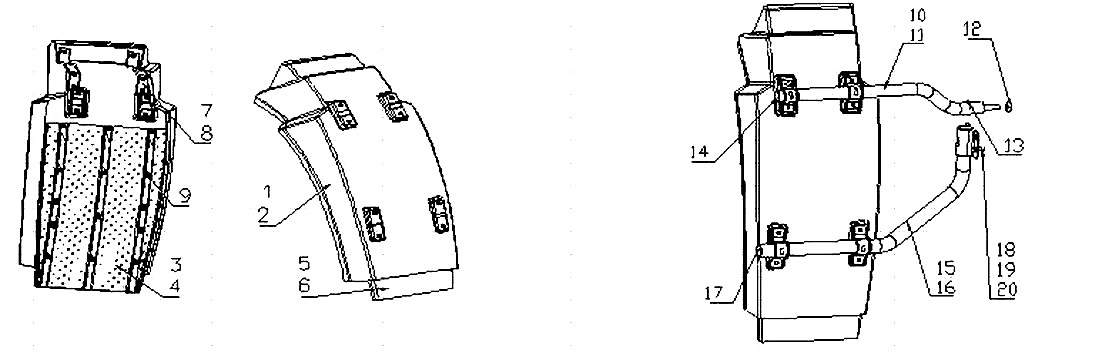

REAR FENDER FOR MID/LONG CAB, HOWO A7 CAB PARTS CATALOG
| REAR FENDER FOR MID/LONG CAB | |||
|---|---|---|---|
| SINOTRUK HOWO A7 CAB | |||
| Serial | Number | Name | Quantity |
| 1 | AZ1664230085 | rear left fender | 1 |
| 2 | AZ1664230086 | rear right fender | 1 |
| 3 | AZ1664230087 | lining of rear left fender 1 | 1 |
| 4 | AZ1664230287 | lining of rear right fender 1 | 1 |
| 5 | AZ1664230088 | lining of rear left fender 2 | 1 |
| 6 | AZ1664230288 | lining of rear right fender 2 | 1 |
| 7 | AZ1664230189 | rear left fender support | 2 |
| 8 | AZ1664230290 | rear right fender support | 2 |
| 9 | Q2204816 | screw and flat gasket set | 32 |
| 10 | AZ1664230180 | left upper support of rear fender | 1 |
| 11 | AZ1664230190 | right upper support of fear fender | 1 |
| 12 | Q33016 | hex flange self locking nut | 2 |
| 13 | Q5280665 | elastic column pin | 2 |
| 14 | AZ1664230185 | upper plug | 2 |
| 15 | AZ1664230200 | left lower support of rear fender | 1 |
| 16 | AZ1664230210 | right lower support of rear fender | 1 |
