Clutch Control Mechanism on Chassis, Howo Clutch

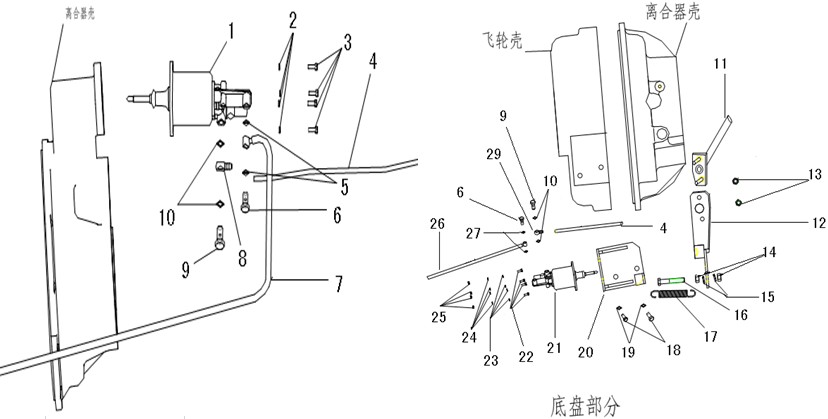

Clutch Control Mechanism on Chassis | ||
Serial | Part Number | Part Name |
1 | WG9114230018 | Clutch booster cylinder 430 |
1 | WG9114230023 | Clutch booster cylinder 420 fuller |
1 | WG9114230029 | Clutch booster cylinder 420 ZF S6-120 |
1 | WG9114230030 | Clutch booster cylinder 420 ZF S6-150 |
2 | Q41208 | Lock washer |
3 | Q150B0830 | bolt |
4 | 190003179781 | tube |
5 | Q72314T5F | Sealing washer |
6 | 190003962621 | Hollow bolt |
7 | WG9719230027 | High-pressure pipeline |
8 | WG99100270119 | Hose connector |
9 | 190003962627 | Hollow bolt |
10 | Q72316T5F | Sealing washer |
11 | 199112230033 | Clutch fork shaft welding assembly |
12 | AZ9114230004 | Separation rocker welding assembly |
13 | Q33210 | Nut |
14 | Q340B10 | Nut |
15 | Q41810 | Elastic washer |
16 | AZ9160230272 | Stop bolt |
17 | 12054230100 | Return spring |
18 | Q151B1425 | bolt |
19 | Q40314 | Spring washer |
20 | AZ9114230016 | Booster cylinder bracket |
21 | WG9114230023 | Clutch booster cylinder |
22 | Q150B0825 | bolt |
23 | Q40108 | Flat Washers |
24 | Q40308 | Spring washer |
25 | Q340B08 | Nut |
26 | WG9123230026 | High-pressure pipeline |
27 | Q72314T5F | Sealing washer |
