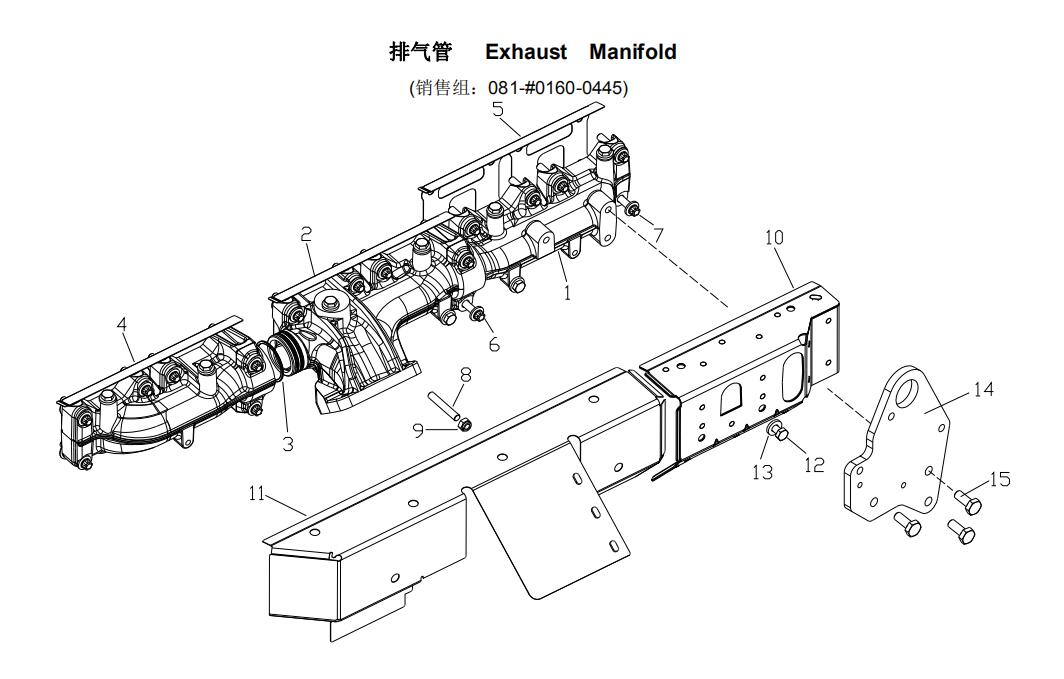

Exhaust Manifold and Lifting Eye, Sitrak Parts Catalogs
Keywords: sitrak parts, sitrak parts catalogs, sitrak mc07 catalogs
| 序号 No. |
图号 Part No. |
单车用量 Qty |
中文名称 Part Name |
Part Name |
| 1 | 081V08101-6327 | 1 | 一、二缸排气歧管 | Exhaust elbow ZYL 1-2 |
| 2 | 081V08102-0209 | 1 | 三、四缸排气歧管 | Exhaust elbow ZYL 3-4 |
| 3 | 080V98701-0085 | 16 | 排气管密封环 | Seal ring |
| 4 | 081V08102-0253 | 1 | 五、六缸排气歧管 | Exhaust elbow ZYL 5-6 |
| 5 | 081V08901-0269 | 3 | 排气管垫片 | Gasket |
| 6 | 080V90490-0090 | 4 | 排气管螺栓 | Screw |
| 7 | 080V90490-0102 | 18 | 排气管螺栓 | Screw |
| 8 | 080V90210-0012 | 2 | 双头螺栓 | Stud |
| 9 | MQ6-11249-0017 | 2 | 六角螺母 | Hexagon nut |
| 10 | 080V08120-5284 | 1 | 隔热罩 1-2 缸 | Heat protection plate ZYL 1-2 |
| 11 | 081V08120-5285 | 1 | 隔热罩 3-6 缸 | Heat protection plate ZYL 1-2 |
| 12 | MQ6-01289-0266 | 10 | 六角头螺栓 | Hex bolt |
| 13 | 080V90710-0314 | 10 | 垫圈 | Washer |
| 14 | 080V19202-0208 | 1 | 吊环 | Lifting Eye |
| 15 | MQ6-01324-5415 | 3 | 六角头螺栓 | Hex Bolt |
