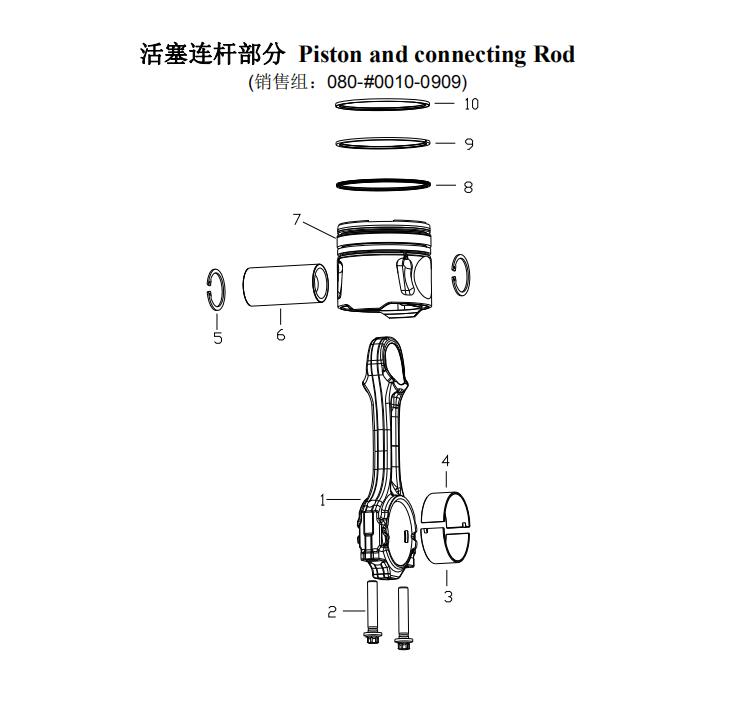

Piston and Connecting Rod, Sitrak Parts Catalogs
| 序号 No. |
图号 Part No. |
单车用量 Qty |
中文名称 Part Name |
Part Name |
| 1 | 080-02400-6045 | 6 | 连杆总成 | Connecting rod |
| 2 | 080V90490-0028 | 12 | 连杆螺栓 | Screw |
| 3 | 081V02410-0693 | 6 | 连杆下瓦 | Bushing（Lower) |
| 4 | 081V02410-0692 | 6 | 连杆上瓦 | Bushing（Upper） |
| 5 | MQ6-29029-0205 | 12 | 活塞销挡圈 | Piston pin retaining ring |
| 6 | 080V02502-0129 | 6 | 活塞销 | Piston pin |
| 7 | 080V02511-0721 | 6 | 活塞 | Piston |
| 8 | 080V02503-0838 | 6 | 螺旋撑簧油环 | Spiral spring oil ring |
| 9 | 080V02503-0814 | 6 | 锥面环 | Taper face compression ring |
| 10 | 080V02503-0813 | 6 | 梯形桶面环 | Keystone ring |
