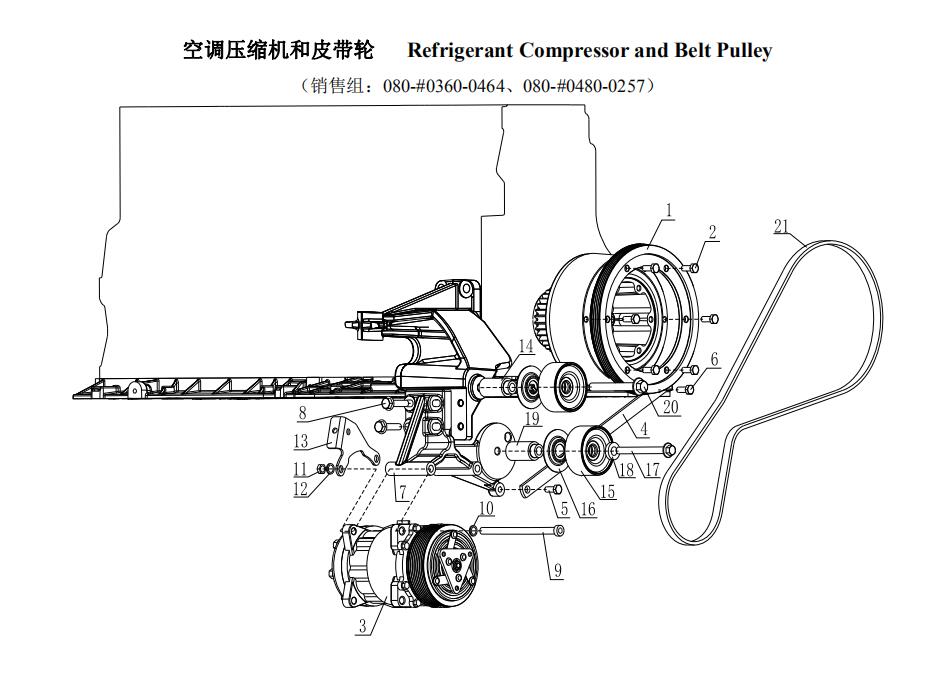

Refrigerant Compressor and Belt, Sitrak Parts Catalogs
| 序号 No. |
图号 Part No. |
单车用量 Qty |
中文名称 Part Name |
Part Name |
| 1 | 080V02601-0607 | 1 | 曲轴皮带轮 | Belt Pulley |
| 2 | MQ6-01283-5113 | 6 | 六角头螺栓 | Hex Bolt |
| 3 | 080V77970-7026 | 1 | 空调压缩机 | Refrigerant Compressor |
| 4 | 080V19101-0303 | 1 | 空调压缩机支架 | Bracket |
| 5 | MQ6-03216-8304 | 1 | 六角法兰面螺栓 | Hex Bolt |
| 6 | MQ6-03216-8405 | 1 | 六角法兰面螺栓 | Hex Bolt |
| 7 | 080V19101-0382 | 1 | 空调压缩机托架 | Bracket |
| 8 | MQ6-03215-6407 | 4 | 六角法兰面螺栓 | Hex Bolt |
| 9 | MQ6-02109-0050 | 2 | 圆柱头螺栓 | Cylinder Screw |
| 10 | MQ6-15033-0814 | 2 | 垫圈 | Washer |
| 11 | MQ6-11064-2115 | 2 | 六角螺母 | Hexagon Nut |
| 12 | MQ6-15013-0412 | 2 | 垫圈 | Washer |
| 13 | 080V19101-0439 | 1 | 托架 | Bracket |
| 14 | 080V95840-0292 | 1 | 张紧轮轴套 | Spacer Sleeve |
| 15 | 080V95800-6099 | 2 | 惰轮 | Cable Roller |
| 16 | 080V91610-0010 | 2 | 球轴承盖 | Cover Plate |
| 17 | MQ6-03216-8417 | 1 | 六角法兰面螺栓 | Hex Bolt |
| 18 | 080V90710-0275 | 1 | 垫片 | Shim |
| 19 | 080V19101-0422 | 1 | 空调压缩机隔片 | Spacer Sleeve |
| 20 | MQ6-03216-8515 | 1 | 六角法兰面螺栓 | Hex Bolt |
| 21 | 080V96820-0372 | 1 | 皮带 | Narrow joined belt |
