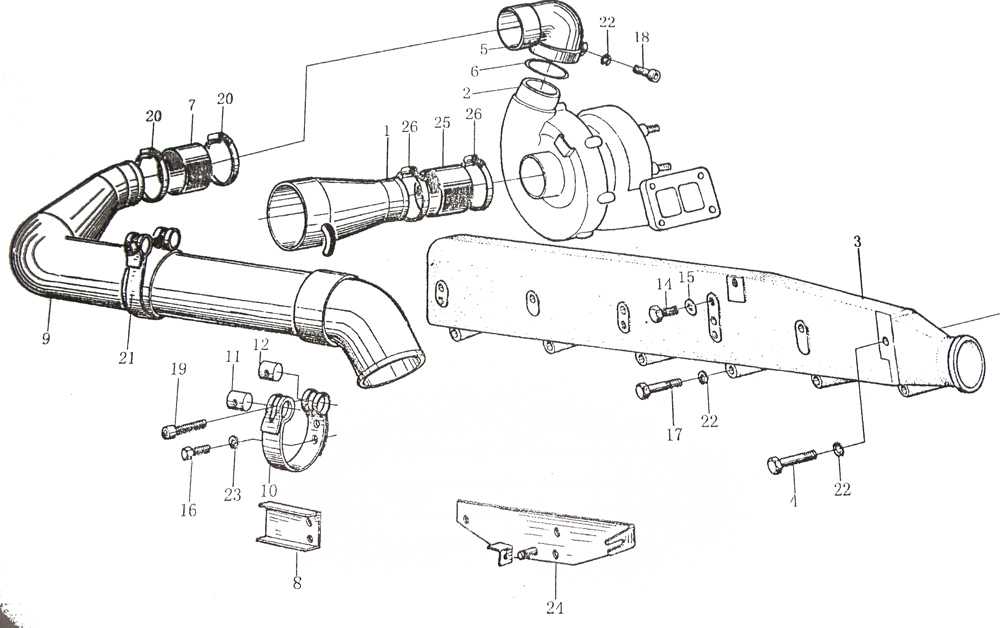

AIR INLET PIPE, WD615-II, HOWO TRUCK PARTS CATALOGS
| AIR INLET PIPE, WD615-II, SINOTRUK HOWO SPARE PARTS CATALOG | |||
| powered by CHINA HEAVY TRUCK PARTS STORE CO LTD, www.sinotruk-parts-store.com | |||
| Serial | Number | Name | Quantity |
| 1 | 612600110505 | components for air compressor | 1 |
| 2 | 615600116227 | turbo charger | 1 |
| 3 | 61560110131 | air inlet pipe assy | 1 |
| 4 | 614110064 | bolt for air inlet pipe | 4 |
| 04a | 90003800497 | hexagon bolt | 2 |
| 5 | 61560110165 | connecting pipe | |
| 6 | 190320035 | sealing ring | 1 |
| 06a | 61560110226 | clip | 1 |
| 7 | 612600110824 | rubber pipe | 1 |
| 8 | 61560110072 | butt strap | |
| 9 | 61560110051 | pipe assy | 1 |
| 10 | 61560110021 | band of clamp | 2 |
| 11 | 209190017 | tightening pin | 2 |
| 12 | 1700550013 | tenshioning pin | 2 |
| 13 | 61500110024 | pad for air inlet pipe | 6 |
| 14 | 90003962014 | plug screw | 1 |
| 15 | 90003098010 | sealing gasket | 1 |
| 16 | 90003802415 | hexagon bolt | 1 |
| 16a | 90003802411 | hexagon bolt | 1 |
| 17 | 90003800465 | hexagon bolt | 6 |
| 18 | 90003862443 | hexagon bolt | 2 |
| 19 | 90003862462 | hexagon bolt | 1 |
| 20 | 90003989312 | clamp for soft pipe | 2 |
| 21 | 90003862456 | screw | 1 |
| 22 | 90003932023 | elastic pad | 20 |
| 23 | 609E110036 | adjusting pad | 3 |
| 24 | 99100570015 | cantilever assy | 1 |
| 25 | 81560110220 | rubber pipe | 1 |
| 26 | 90003989312 | clamp for soft pipe | 2 |
| 26a | 90003989318 | clamp for soft pipe | 2 |
