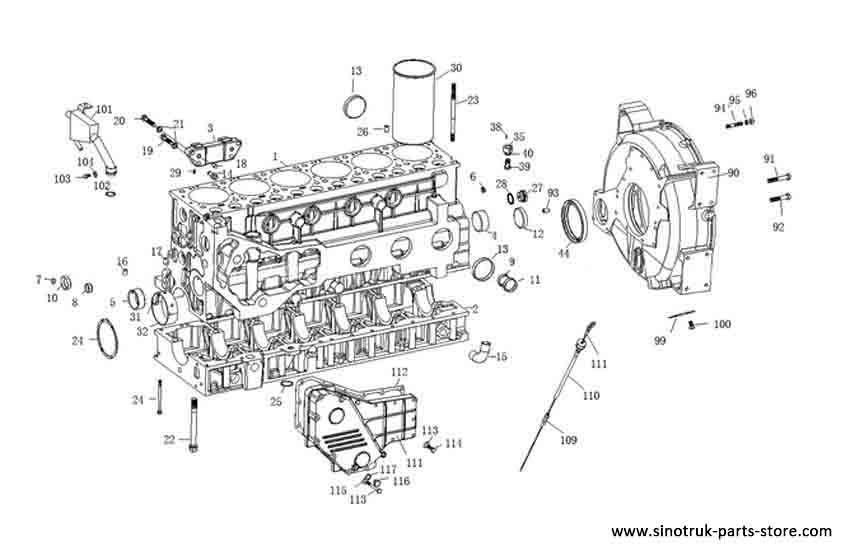

CYLINDER BODY 1#, WD615 EURO-III HOWO TRUCK PARTS CATALOGS
| CYLINDER BODY 1# | ||
| WD615 EURO-III ENGINE PARTS CATALOGS | ||
| Serial | Name | Part Number |
| 1 | Cylinder block ass | AZ1096010190 |
| 1 | Cylinder block ass | AZ1096010020 |
| 1 | Cylinder block ass | AZ1099010077 |
| 1 | Cylinder block ass | AZ1099010081 |
| 1 | Cylinder block | AZ1096010134 |
| 1 | Cylinder block | AZ1095010010 |
| 1 | Cylinder block | AZ1099010078 |
| 1 | Cylinder block | AZ1099010079 |
| 2 | Crankcase | 61500010366C |
| 2 | Crankcase | 161500010369 |
| 3 | Bracket | VG1540010019 |
| 4 | Bush | VG1560010029 |
| 5 | Bush | VG2600010990 |
| 6 | Core plug | 90003984080 |
| 7 | Core plug | 90003989480 |
| 8 | Core plug | 90003989204 |
| 9 | Core plug | 90003989289 |
| 10 | Core plug | 90003982121 |
| 11 | Core plug | 90003989215 |
| 12 | Core plug | 90003989288 |
| 13 | Core plug | 90003989210 |
| 14 | Connecting piece | VG2600130026 |
| 15 | Pipe | VG2600070097 |
| 15 | Pipe | VG1460010011 |
| 16 | Dowel pin | 90003901604A |
| 17 | Dowel pin | Q5211220 |
| 18 | Dowel pin | Q5211216 |
| 19 | Bolt | 90003802650 |
| 20 | Bolt | 90011350045 |
| 21 | Spring washer | 90003931142 |
| 22 | Bolt | VG14010114 |
| 22 | Bolt | VG14010217 |
| 23 | Stud | VG1500010185 |
| 24 | Bolt | 90003802493 |
| 25 | Gasket | VG1400010032 |
| 26 | Dowel pin | 190003901604 |
| 27 | Bolt | VG1460070011 |
| 28 | Spring dowel pin | 90003909626 |
| 29 | Bolt | 90003962051 |
| 30 | Liner | VG1540010006 |
| 31 | Main bearing | VG1500010046 |
| 32 | Main bearing upper half | VG1540010021 |
| 32 | Main bearing upper half | VG1540010022 |
| 34 | Thrust bearing | VG1500010125 |
| 35 | Spraying nozzle assembly | VG2600010659 |
| 35 | Spraying nozzle assembly | VG1560010090 |
| 35 | Spraying nozzle assembly | VG1560019090 |
| 38 | Spring dowel pin | 90003909603 |
| 39 | Bolt | 90003962621 |
| 40 | Gasket | VG9003080001 |
| 90 | Flywheel housing | R61540010010 |
| 91 | Bolt | VG1500010062 |
| 92 | Bolt | VG1500010101 |
| 93 | Dowel pin | 90003901604 |
| 94 | Stud | 90003813537 |
| 95 | Spring washer | 90003931122 |
| 96 | Nut | 90003871305 |
| 97 | Stud | 90003813527 |
| 98 | Nut | 90003888452 |
| 99 | Cover | VG1800210011 |
| 100 | Bolt | 90003802511 |
| 101 | Oil separator | VG1500019045A |
| 101 | Oil separator | VG1099019055 |
| 102 | O-ring | Q734B2650265 |
| 103 | Bolt | 90003802321 |
| 104 | Spring washer | 90003936101 |
| 105 | Clamp | VG31100040007 |
| 106 | Hose | VG12G00040038 |
| 107 | Hose clip | 90003989301 |
| 108 | Hose | VG1500010174 |
| 108 | Hose | VG2600011106 |
| 108 | Hose | VG1500010176 |
| 109 | Clamp | VG609E110049 |
| 110 | Hose clip | 90003171356 |
| 111 | Cover | VG1540010014A |
| 112 | Joint | VG1540010015A |
| 113 | Bolt | 90003800467 |
| 114 | Bolt | 90003802437 |
| 115 | Spring washer | 90003932023 |
| 116 | Bolt | 90003962020 |
| 117 | Washer | 90003098014 |
| 118 | Gauge | VG2600010705 |
| 118 | Gauge | VG1500019077 |
| 119 | Gauge | VG1500010600 |
| 119 | Gauge | VG1500010500 |
| 121 | Clamp piece | VG2600010445 |
| 122 | Hose clip | VG2600010638 |
| 123 | Supporting block | VG1500010031 |
| 124 | Bolt | 9000382511 |
| 125 | Spring washer | 90003931122 |
| 126 | Washer | 90003930271 |
