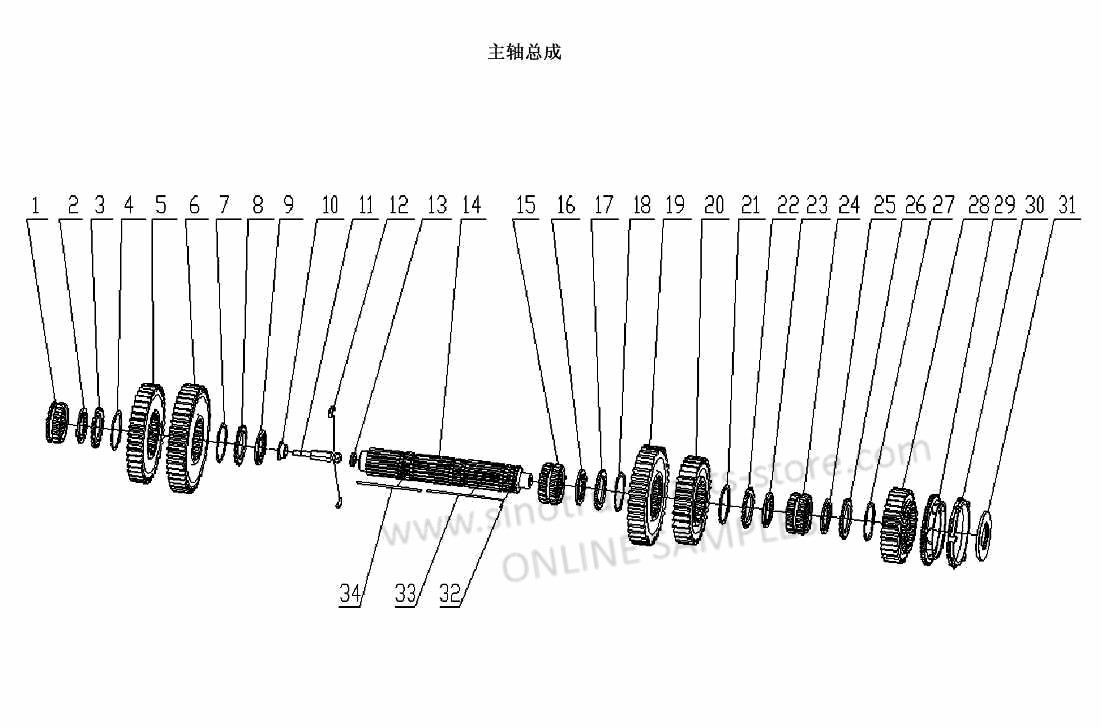

MAIN SHAFT ASSY, SITRAK PARTS CATALOG
| MAIN SHAFT ASSY | |||
| SINOTRUK HW20716 TRANSMISSION | |||
| Serial | Number | Name | Quantity |
| 1 | AZ2210040011 | reverse gear sleeve | 1 |
| 2 | WG2210040021~24 | spline adjusting gasket | 1 |
| 3 | WG2210040012 | spline retaining gasket | 1 |
| 4 | WG2229040003 | clamp | 1 |
| 5 | WG2210040007 | main shaft reverse gear | 1 |
| 6 | WG2210040006 | main shaft first gear | 1 |
| 7 | WG2229040003 | clamp | 1 |
| 8 | WG2210040012 | spline retaining gasket | 1 |
| 9 | WG2210040023 | spline adjusting gasket | 1 |
| 10 | AZ2229040013 | bulb pressure ring | 1 |
| 11 | WG2229040111 | bulb | 1 |
| 12 | AZ2207040001 | bulb seat ring | 1 |
| 13 | AZ2229040012 | bulb seat ring | 1 |
| 14 | WG2210040101 | main shaft | 1 |
| 15 | WG2210040010 | main shaft sliding sleeve | 1 |
| 16 | WG2210040021~24 | spline adjusting gasket | 1 |
| 17 | WG2210040012 | spline retaining gasket | 1 |
| 18 | WG2229040003 | clamp | 1 |
| 19 | WG2210040006 | main shaft second gear | 1 |
| 20 | WG2210040005 | main shaft third gear | 1 |
| 21 | WG2229040003 | clamp | 1 |
| 22 | WG2210040012 | spline retaining gasket | 1 |
| 23 | WG2210040023 | spline retaining gasket | 1 |
| 24 | WG2210040010 | main shaft sliding sleeve | 1 |
| 25 | WG2210040021~24 | spline adjusting gasket | 1 |
| 26 | WG2210040012 | spline retaining gasket | 1 |
| 27 | WG2229040003 | clamp | 1 |
| 28 | WG2210040003 | driving main gear | 1 |
| 29 | WG2210020003 | insert gear synchronizer cone boss | 1 |
| 30 | AZ2210020004 | insert synchronizer ring | 1 |
| 31 | WG2210040002 | main shaft big retaining gasket | 1 |
| 32 | Q5280310 | elastic column pin | 1 |
| 33 | WG2229040001 | hex key | 1 |
| 34 | WG2229040002 | hex key | 1 |
