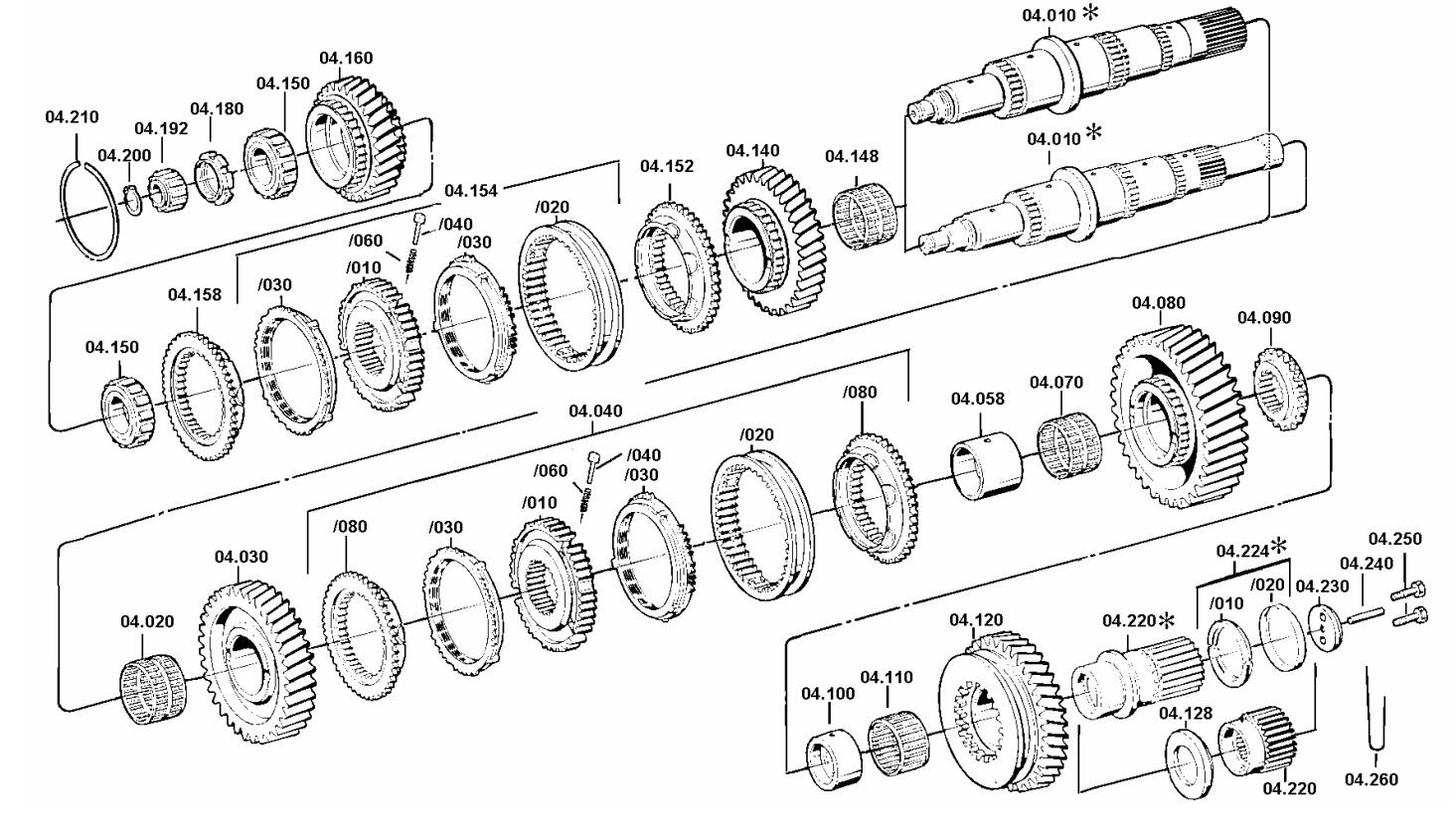

Main Shaft, Sitrak Parts Catalogs
Keywords: sitrak parts, sitrak parts catalogs, sitrak gearbox 16s-1650 catalogs
| FIG. | QTY. | PART-NUMBER | DESCRIPTION | ||
| 010 | 1 | 91304266 | MAIN SHAFT | ||
| 020 | 1 | 735320418 | NEEDLE CAGE | ||
| 030 | 1 | 91304322 | HELICAL GEAR | ||
| 040 | 1 | 91204043 | SYNCHRONIZER | ||
| /010 | 1 | 1316304152 | SYNCHRONIZER BODY | ||
| /020 | 1 | 1316304169 | SLIDING SLEEVE | ||
| /030 | 2 | 1316304170 | SYNCHRONIZER RING | ||
| /040 | 3 | 1297304436 | PRESSURE PIECE | ||
| /060 | 3 | 732040409 | COMPRESSION SPRING | ||
| /080 | 2 | 1316304154 | CLUTCH BODY | ||
| 058 | 1 | 1297304035 | BUSH | ||
| 070 | 1 | 735320487 | NEEDLE CAGE | ||
| 080 | 1 | 91304297 | HELICAL GEAR | ||
| 090 | 1 | 91304207 | CLUTCH BODY | ||
| 100 | 1 | 91304034 | BUSH | ||
| 110 | 1 | 735320486 | NEEDLE CAGE | ||
| 120 | 1 | 91304210 | GEAR | ||
| 128 | 1 | 91304209 | RING | ||
| 140 | 1 | 91304317 | HELICAL GEAR | ||
| 148 | 1 | 735320452 | NEEDLE CAGE | ||
| 150 | 2 | 750118005 | CY.ROLL.BEARING | ||
| 152 | 1 | 91304310 | CLUTCH BODY | ||
| 154 | 1 | 91204034 | SYNCHRONIZER | ||
| /010 | 1 | 91304361 | SYNCHRONIZER BODY | ||
| /020 | 1 | 1310304225 | SLIDING SLEEVE | ||
| /030 | 2 | 1297304484 | SYNCHRONIZER RING | ||
| /040 | 3 | 1297304436 | PRESSURE PIECE | ||
| /050 | 3 | 732040409 | COMPRESSION SPRING | ||
| 158 | 1 | 91304310 | CLUTCH BODY | ||
| 160 | 1 | 91304314 | HELICAL GEAR | ||
| 180 | 1 | LOCKING NUT | |||
| 1 | 501398371 | LOCKING NUT | |||
| 192 | 1 | 735455040 | CY.ROLL.BEARING | ||
| 200 | 1 | 630501028 | RETAINING RING | ||
| 210 | 1 | RING | |||
| 1 | 730005473 | RING | |||
| 1 | 730005472 | RING | |||
| 1 | 730005471 | RING | |||
| 1 | 730005470 | RING | |||
| 1 | 730005469 | RING | |||
| 1 | 730005468 | RING | |||
| 1 | 730005467 | RING | |||
| 1 | 730005466 | RING | |||
| 1 | 730005465 | RING | |||
| 1 | 501398358 | RING | |||
| 1 | 501398362 | RING | |||
| 1 | 501398360 | RING | |||
| 1 | 730005464 | RING | |||
| 1 | 730007747 | RING | |||
| 220 | 1 | 91304194 | SUN GEAR | ||
| 230 | 1 | 91304291 | FIXING WASHER | ||
| 240 | 1 | 730061842 | PIPE | ||
| 250 | 2 | HEXAGON SCREW | |||
| 2 | 636010494 | HEXAGON SCREW | |||
| 260 | 1 | 501099730 | WIRE | ||
