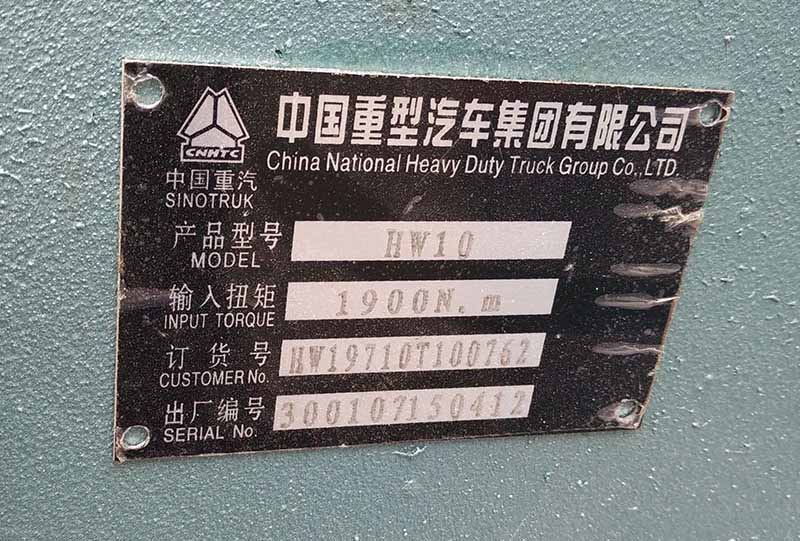

hw19710t, hw10, nameplate


Specifications: Synchronizers installed; Skew Gears; Rear PTO Available;
Single Middle Shaft; Planetary Mechanism for Deputy Box.

Assembly Type: HW19710T

Category: HW10 Series

Gearbox Type: Manual

Truck Engine Range: From 336hp to 420hp

Number of Forward Gears: 10 Gears

Number of Reverse Gears: 2 Gears

Max Input Torque: 1900 NM

Rated Rotation Speed: 2600 RPM

Weight: 430 KG

Oil/Lubricant Capacity: 15 L

1st Gear Ratio: 14.36

2nd Gear Ratio: 10.66

3rd Gear Ratio: 7.88

4th Gear Ratio: 5.82

5th Gear Ratio: 4.38

6th Gear Ratio: 3.28

7th Gear Ratio: 2.44

8th Gear Ratio: 1.8

9th Gear Ratio: 1.33

10th Gear Ratio: 1

1st Reverse Gear Ratio: 14

2nd Reverse Gear Ratio: 3.2

Shift Type: Single H Type.

Stock Quality: OEM & Original.

Suggested Stock in Repair Shop: 0.5 unit/truck/year.

Suggested Way of Shipping: In 40HQ with other light items.

Urgent Order: Sent by air freight, arrive in 7 days.

Urgency Level when Broken: High.

Note: All inner parts are available, and part numbers are printed on most gears.
