FUEL SUPPLY SYSTEM, HOWO PARTS CATALOGS
Category: howo d10 euro-iii parts catalogs, howo parts catalogs pdf

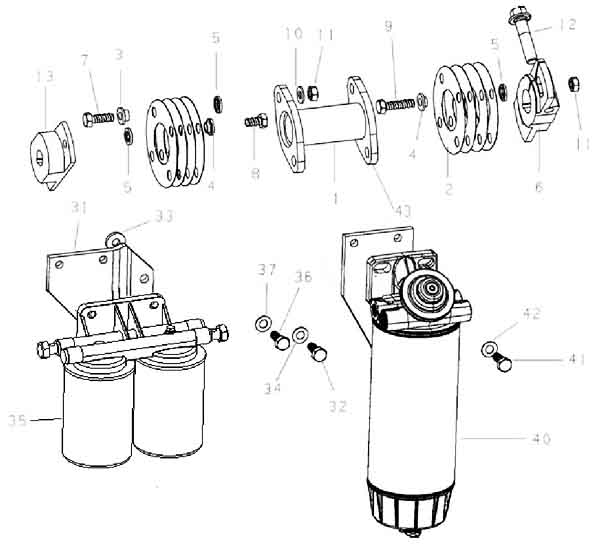

| FUEL SUPPLY, D10 ENGINE EURO-III | ||
| Serial | Name | Number |
| 1 | Coupling flange assembly | VG1540080299 |
| 2 | Flexible connection piece | VG1540080004B |
| 3 | Bush | VG1540080295 |
| 4 | Bush | VG1540080296 |
| 5 | Washer | VG1540080007B |
| 6 | Adjustment plate | VG1540080293 |
| 7 | Hex head bolts | 90003802544 |
| 8 | Hex head bolts | 90003802513 |
| 9 | Hex head bolts | 90003802536 |
| 10 | Washer | VG1540080297 |
| 11 | Hex nuts | 90003871308 |
| 12 | Hexagon flange bolts | VG1500089018 |
| 13 | Flange | VG1540080292A |
| 14 | Fastening nut | R61540080311 |
| 15 | Oil supply pump | R61540080101 |
| 16 | Key | R61540080312 |
| 17 | Spring washer | 90014350010 |
| 18 | Hexagon socket head screws | VG1540080091 |
| 19 | Flat Washers | 90003930261 |
| 20 | Self-locking washer | VG188250083 |
| 21 | Rail component | R61540080016 |
| 22 | Hex head bolts | 90003802455 |
| 23 | Spring washers | 90003932023 |
| 24 | Injector assembly | R61540080017A |
| 24 | Injector assembly | VG1096080010 |
| 25 | Injector seals | VG1096080003 |
| 26 | Injector Washers | VG1540080019B |
| 26 | Injector Washers | VG1540080018A |
| 27 | Seals | VG1540080095 |
| 28 | Injector clamping block | VG1540080021C |
| 28 | Injector clamping block | VG1096080021 |
| 29 | Hex head bolts | Q150B0835TF2 |
| 29 | Hex head bolts | Q150B0840TF2 |
| 30 | Washers | VG1540080024 |
| 31 | Fuel filter bracket | VG1540080126 |
| 32 | Hex head bolts | 90003802523 |
| 33 | Large Washer | 90003930012 |
| 34 | Wave spring washers | 90003932024 |
| 35 | Fuel fine filter assembly | VG1540080030A |
| 36 | Hex head bolts | 90003802527 |
| 37 | Spring washer | 90003931122 |
| 38 | Diesel filter spill valve | VG1540080022 |
| 39 | Gasket | VG2600080200 |
| 40 | Primary fuel filter assembly | VG1540080132A |
| 41 | Hex head bolts | 90003802523 |
| 42 | Spring washer | 90003931122 |
| 43 | Coupling assembly | VG1540080300 |
| 44 | Hollow bolt A8M14 × 1.5 | 90003962621 |
| 45 | Gasket | VG2600080200 |
| 46 | Pump inlet pipe | VG1099089156 |
| 47 | Fuel Pipe | VG1099089098 |
| 48 | Fuel Pipe | VG1099089099 |
| 49 | Hollow bolt A8M14 × 1.5 | 90003962621 |
| 50 | Gasket | VG2600080200 |
| 51 | High-pressure pipeline | VG1540080040 |
| 51 | High-pressure tubing assembly | VG1096080400 |
| 52 | Single pipe clamp assembly | VG1540080057 |
| 53 | Single tube clip | VG1540080048 |
| 54 | Single pipe clamp pad | VG1540080049 |
| 55 | Double pipe clamp assembly | VG1540080058 |
| 56 | Double tube clip | VG1540080052 |
| 57 | Double pipe clamp pad | VG1540080053 |
| 58 | Tube clip topsheet assembly | VG1540080059 |
| 59 | Tube clip | VG1540080055 |
| 60 | Pipe clamp pad | VG1540080056 |
| 61 | Hex head bolts | 90003802331 |
| 62 | Spring washer | 90014350003 |
| 63 | High-pressure tubing assembly (1) | VG1540089093 |
| 63 | High-pressure tubing assembly (1) | VG1096080321 |
| 64 | High-pressure tubing assembly (1) | VG1096080322 |
| 65 | High-pressure pump lubricating oil pipe assembly | VG1560070060 |
| 65 | High-pressure pump lubricating oil pipe assembly | VG1540089094 |
| 66 | Hollow bolt | 90003962607 |
| 67 | Gasket | 90003098010 |
| 68 | Lubricating oil return pipe assembly | VG1540089097 |
| 69 | Hollow bolt | 90003962621 |
| 70 | Gasket | VG2600080200 |
| 71 | Pin | VG1096080022 |
| 73 | Gasket | VG2600080201 |
| 74 | Injector return pipe assembly | VG1099089066 |
| 74 | Injector return pipe assembly | VG1096080310A |
| 75 | Hollow bolt | VG1096080081 |
| 76 | Hollow bolt | 190003962603 |
| 76 | Hollow bolt | VG1540080081 |
| 77 | Composite gasket | VG9003080003 |
| 78 | Fuel temperature sensor seat | VG1540080067 |
| 79 | Hex head bolts | Q150B0645 |
| 80 | Spring washer | 90014350003 |
| 81 | Flat Washers | 90014330002 |
| 82 | Fixing plate | VG1540080298 |
| 83 | Hex head bolts | 90011350026 |
| 84 | Spring washer | 90003931122 |
| 85 | Flat Washers | 90003930271 |
| 86 | Oil return connection seat | VG1540080071 |
| 87 | Hex head bolts | Q150B0645 |
| 88 | Spring washer | 90014350003 |
| 89 | Flat Washers | 90014330002 |
| 90 | Return pipe | VG1540080072 |
| 91 | Hollow bolt | 90003962603 |
| 92 | Gasket | VG2600080201 |
| 93 | Rail assembly return pipe | VG1096080073 |
| 93 | Rail assembly return pipe | VG1540089073 |
| 94 | Hollow bolt A4M10 × 1 | 90003962607 |
| 95 | Gasket | 90003098010 |
| 96 | Diesel filter return pipe | VG1099089074 |
| 97 | Hollow bolt A8M14 × 1.5 | 90003962621 |
| 98 | Gasket | VG2600080200 |
| 99 | Pump return pipe | VG1540089096 |
| 100 | Hollow bolt A8M14 × 1.5 | 90003962621 |
| 101 | Gasket | VG2600080200 |
| 103 | Hollow bolt A8M14 × 1.5 | 90003962621 |
| 104 | Gasket | VG2600080200 |
| 105 | Clamps | 90003171697 |
| 106 | Support bracket (a) | VG1540080076A |
| 106 | A support frame (b) | VG1540080077 |
| 106 | Support frame (c) | VG1540080078A |
| 106 | Support bracket (D) | VG1540080079 |
| 106 | Support bracket (D) | VG1096080314 |
| 107 | Support frame (c) | VG1096080313 |
| 108 | Support bracket (D) | VG1540080079 |
| 109 | Support frame (c) | VG1540080078A |
| 110 | Hexagon nut | 90003871252 |
| 111 | Wave spring washers | 90003932023 |
| 112 | Injector short oil return tube assembly | VG1099089065 |
| 113 | Connector | VG1099089064 |
