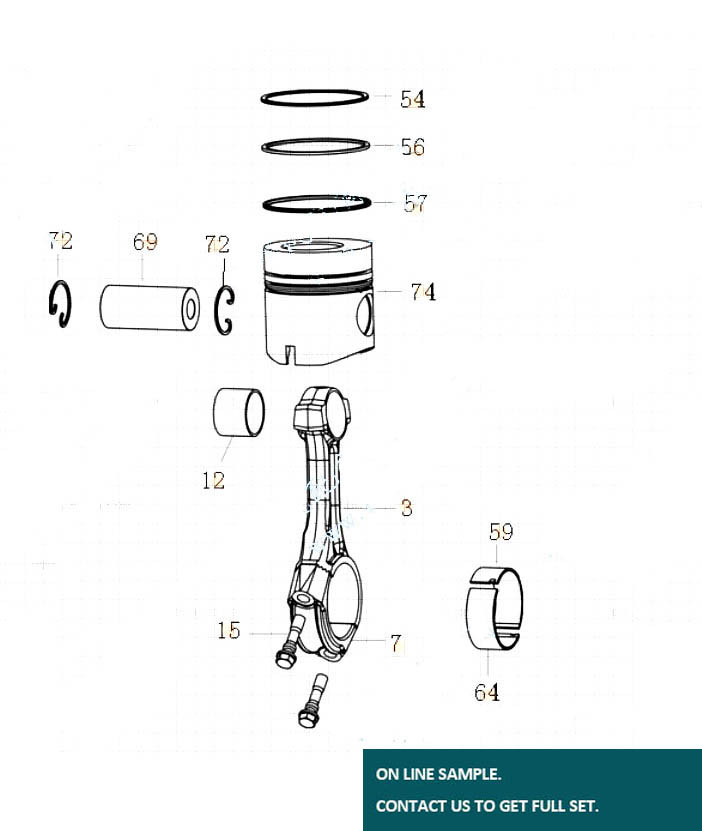

CONNECTING ROD & PISTON, SINOTRUK T10 PARTS CATALOGS
| SINOTRUK T10 LNG / CNG ENGINE CATALOG | ||
| Serial | Part Number | Name |
| 1 | 161500030009 | Rod assembly |
| 3 | 161500030008 | Rod body |
| 7 | 161500030022 | Rod cap |
| 181500030022 | Tightening specification | |
| 12 | VG1500030077 | Rod Bushing |
| 15 | VG1500030023 | Rod bolt |
| 53 | VG1540030011 | Ring Assembly |
| 54 | VG1540030022 | Barrel face ring |
| 56 | VG1540030006 | Cone ring |
| 57 | VG1540030024 | S-type oil ring |
| 59 | VG1540030015 | Link on the tile |
| 64 | VG1540030016 | Link under the tile |
| 69 | VG1560030013 | Piston pin |
| 72 | VG1560030012 | Piston pin retainer |
| 74 | VG1540030030 | Piston |
