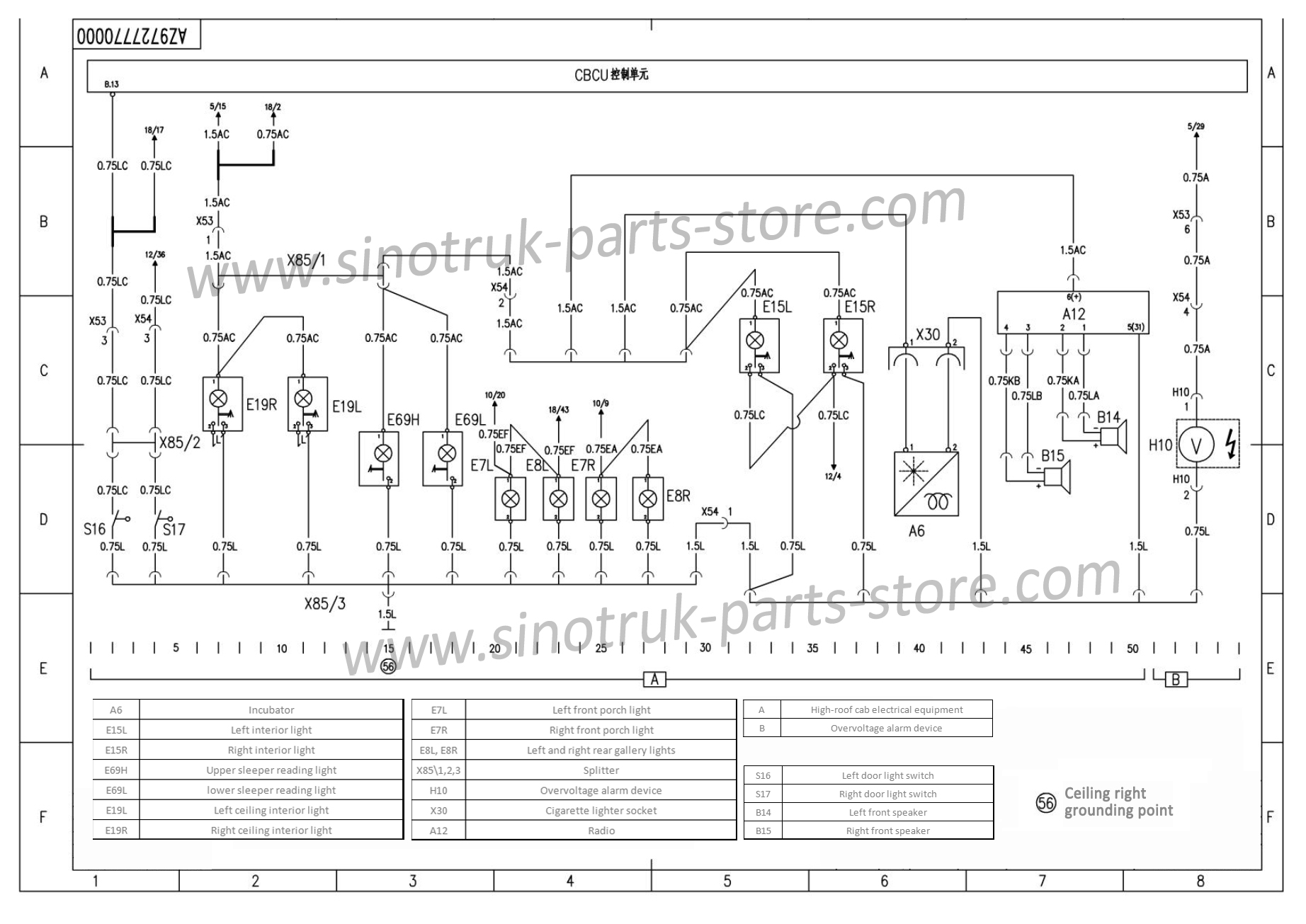

Howo Truck Diagram - High-roof Cab Electrical Equipment



PDF download below:

howo truck diagram

S16 Left door light switch
S17 Right door light switch
B14 Left front speaker
B15 Right front speaker
A High-roof cab electrical equipment
B Overvoltage alarm device

A6 Incubator
E15L Left interior light
E15R Right interior light
E69H Upper sleeper reading light
E69L lower sleeper reading light
E19L Left ceiling interior light
E19R Right ceiling interior light
E7L Left front porch light
E7R Right front porch light
E8L, E8R Left and right rear gallery lights
X85\1,2,3 Splitter
H10 Overvoltage alarm device
X30 Cigarette lighter socket
A12 Radio
