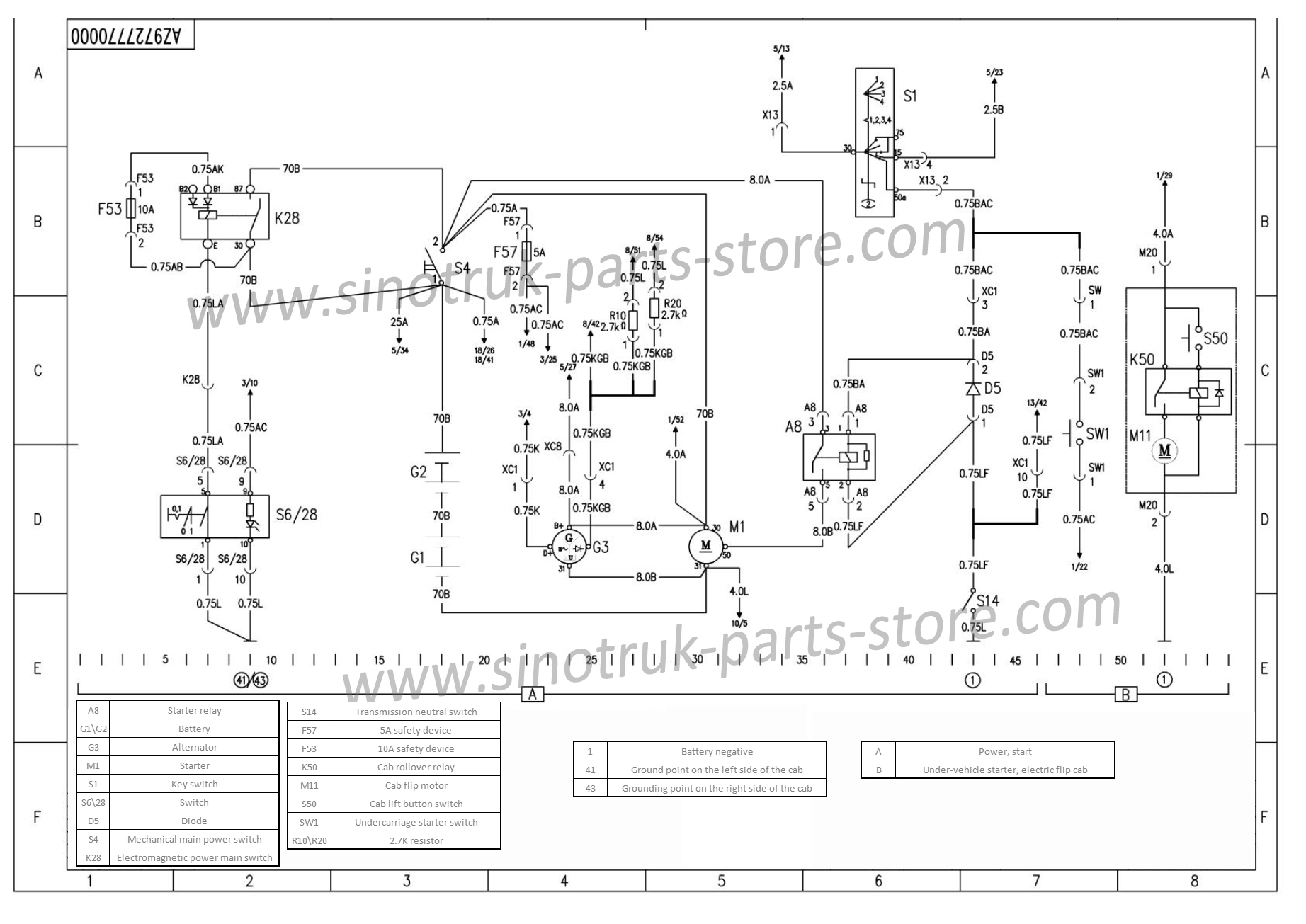

Sinotruk Electrical Diagram - Power, Starter and Cabin Flip
PDF download below:
| A8 | Starter relay |
| G1\G2 | Battery |
| G3 | Alternator |
| M1 | Starter |
| S1 | Key switch |
| S6\28 | Switch |
| D5 | Diode |
| S4 | Mechanical main power switch |
| K28 | Electromagnetic power main switch |
| S14 | Transmission neutral switch |
| F57 | 5A safety device |
| F53 | 10A safety device |
| K50 | Cab rollover relay |
| M11 | Cab flip motor |
| S50 | Cab lift button switch |
| SW1 | Undercarriage starter switch |
| R10\R20 | 2.7K resistor |
