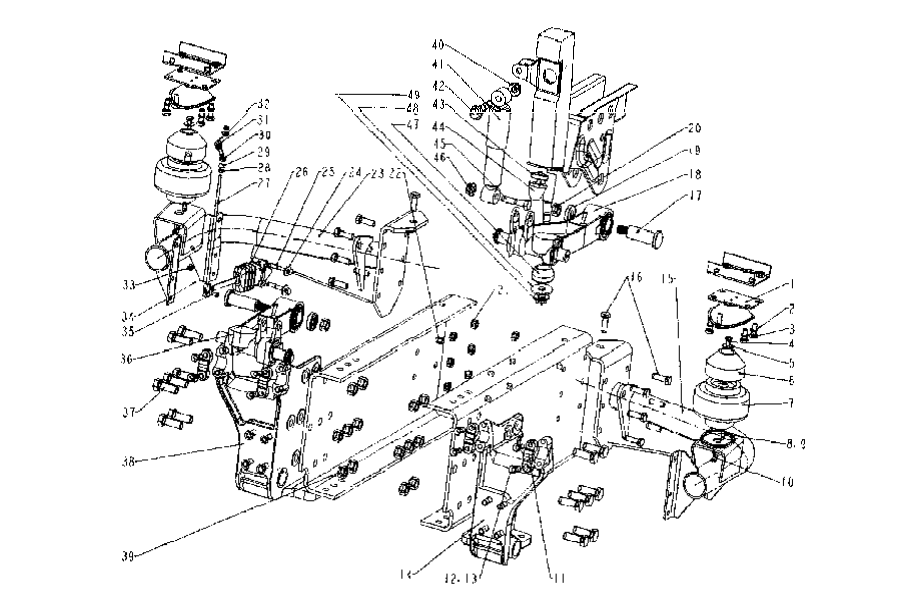

Cabin Front Suspension
No Number of part Quantity Designation
1 AZ1642430030 2 Above base for air spring
1 AZ1642430125 2 Above base for screwy spring
2 Q40310 8 Spring washer
3 Q150B1025 8 Screw
4 Q150B0820 2 Screw
5 Q41208 2 Washer
6 WG1642430033 2 Guide
6 AZ1642430116 2 Washer
7 AZ1642430085 2 Air Spring
7 WG1642430118 2 Screwy spring
7 WG1642430117 2 Screwy spring
8 Q40308 2 Spring washer
9 Q150B0820 2 Screw
10 WG1642430086 2 Nozzle
11 AZ1642430043 4 Cover
12 Q40312 8 Spring washer
13 Q150B1235 8 Screw
14 AZ1642430041 1 Front support left
15 WG1642430010 1 Bottom spring bracket left
15 AZ1642430110 1 Bottom spring bracket left
15 AZ1642430126 1 Bottom spring bracket left
16 Q151C1235 14 Screw
17 AZ1642430071 2 Screw
18 AZ1642430051 1 Left swing arm
19 AZ1642430072 2 Washer
20 190003888459  2 Nut
21 190003888457  2 Nut
22 190003888457  2 Nut
23 WG1642430020 1 Bottom spring bracket right
23 WG1642430120 1 Bottom spring bracket right
23 AZ1642430127 1 Bottom spring bracket right
24 Q40208 2 Washer
25 Q150B0855 2 Screw
26 WG1642440051 1 Height control valve
27 WG1642430035 1 Brace rad I
28 Q340B09 4 Nut
29 AZ1642430036 2 Ball washer
30 AZ1642430034 1 Connecting rod
31 Q340B08 1 Nut
32 Q41208 1 Toothed washer
33 Q340B08 2 Nut
34 Q5002012 1 Split pin
35 Q5100614 1 Bolt
36 AZ1642430052 1 Right swing arm
37 Q151B1645 14 Screw
38 AZ1642430042 1 Front support right
39 190003888459  14 Nut
40 Q33014 2 Nut
41 AZ1642430091 2 Shock absorber
42 Q1841470 2 Nut
43 AZ1642430082 2 Washer
44 WG1642430081 2 Spring stop
45 Q150B1460 2 Screw
46 Q33014 2 Nut
47 AZ1642430097 2 Rubber stop
48 Q40216 2 Washer
49 Q33016 2 Nut
