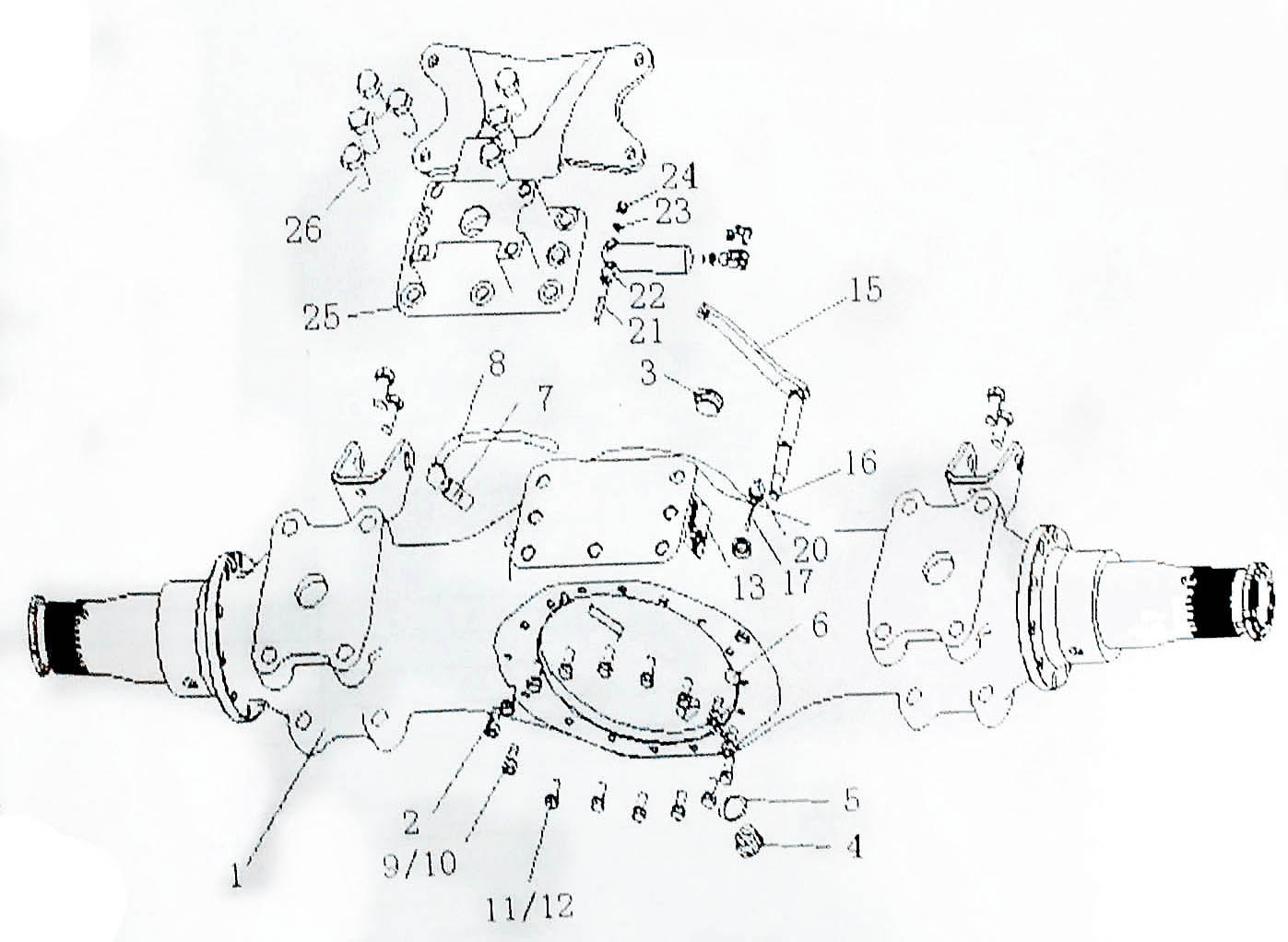

REAR DRIVING AXLE CASE, HC16 AXLE
Serial Number Name Quantity
1   AZ9231330948 rear axle case 1
2   Q5211016 column pin 1
3   WG81500010163 screw plug 1
4   WG9231330015 magnetic screw plug assy 1
5   Q72336 sealing ring 2
6 190003989290  plug 1
7   WG9231330105 air plug 1
8   WG9231330106 rubber tube 1
9   Q151C1230TF2 hexagonal head bolt 12
10   Q40312 spring gasket 16
11 190003810631  double head bolt 4
12 190003888457  self-locking nut 4
13   WG2297Y4835 nameplate 1
14 190003904529  rivet 2
15   WG9014330125 joystick assy 1
16   1680M320015 O type gasket 1
17   WG9112330016 pin 1
18   WG9231330808 pin 1
19   WG9231330809 pin 1
20   Q43705 steel retaining ring for shaft 1
21   Q1200850F3 double head bolt 1
22   WG61000060084 space bushing 1
23   Q40108 flat gasket 1
24   Q33208 hexagonal locking nut 1
25   WG9231340943 support of chamber 1
26   Q151B2045TF2 hexagonal head bolt 7
