FIRST REAR DRIVING AXLE CASE, SINOTRUK HOWO SPARE PARTS CATALOG

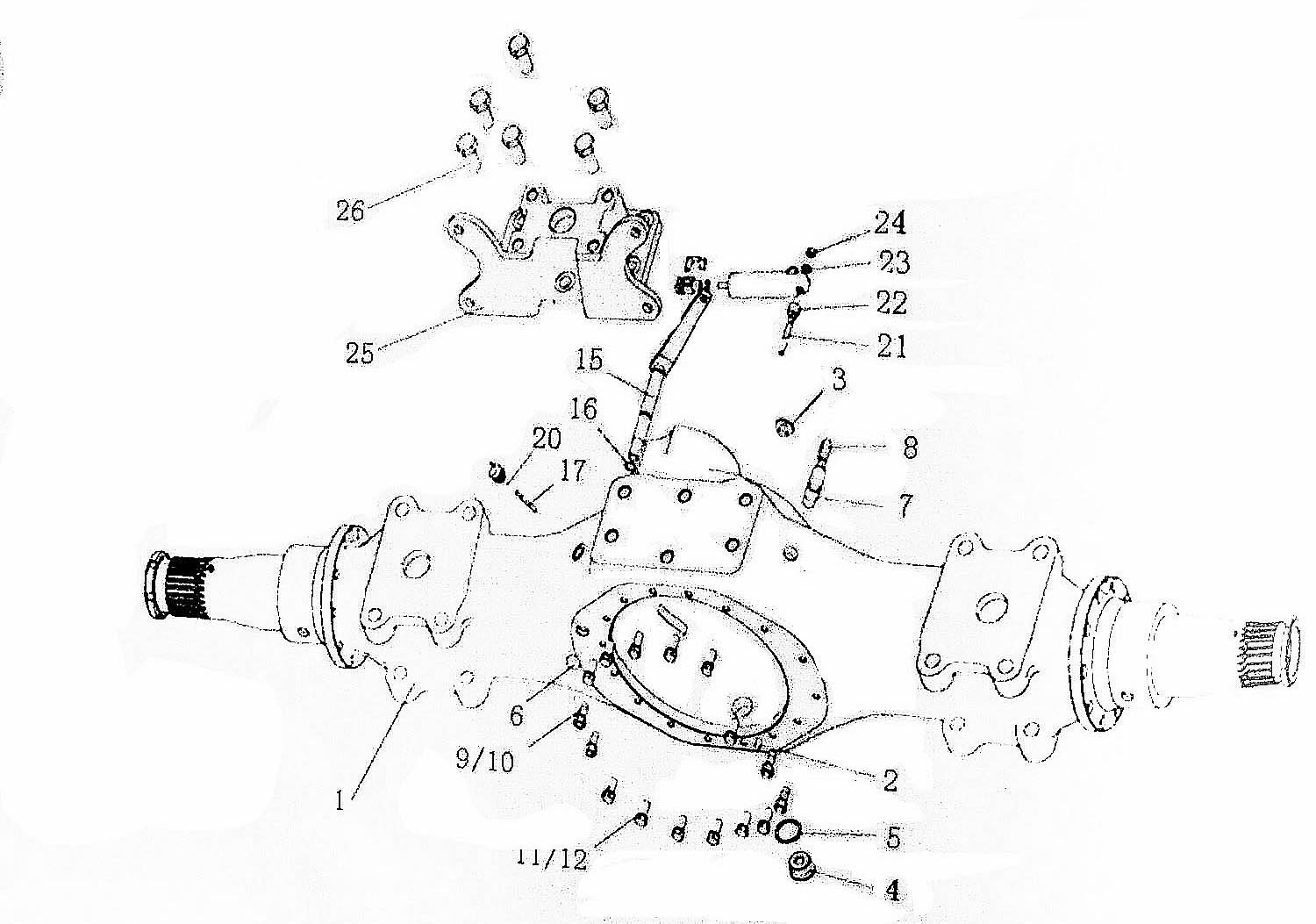

| FIRST REAR DRIVING AXLE CASE, HC16 AXLE | |||
| Serial | Number | Name | Quantity |
| 1 | AZ9231330990 | first rear axle case | 1 |
| 2 | Q5211016 | column pin | 1 |
| 3 | 190003962021 | screw plug | 1 |
| 4 | WG9231330015 | magnetic screw plug assy | 1 |
| 5 | Q72336 | sealing ring | 1 |
| 6 | 190003989290 | plug | 1 |
| 7 | WG9231330105 | air plug | 1 |
| 8 | WG9231330106 | rubber tube | 1 |
| 9 | Q151C1230TF2 | hexagonal head bolt | 1 |
| 10 | Q40312 | spring gasket | 4 |
| 11 | 190003810631 | double head bolt | 4 |
| 12 | 190003888457 | self-locking nut | 16 |
| 13 | WG2297Y4835 | nameplate | 1 |
| 14 | 190003904529 | rivet | 2 |
| 15 | WG9014330126 | joystick assy | 1 |
| 16 | 1680M320015 | O type gasket | 1 |
| 17 | WG9112330016 | pin | 1 |
| 18 | WG9231330808 | pin | 1 |
| 19 | WG9231330809 | pin | 1 |
| 20 | Q43705 | steel retaining ring for shaft | 1 |
| 21 | Q1200850F3 | double head bolt | 1 |
| 22 | WG61000060084 | space bushing | 1 |
| 23 | Q40108 | flat gasket | 1 |
| 24 | Q33208 | hexagonal locking nut | 1 |
| 25 | WG9231340944 | support of chamber | 1 |
| 26 | Q151B2045TF2 | hexagonal head bolt | 1 |
