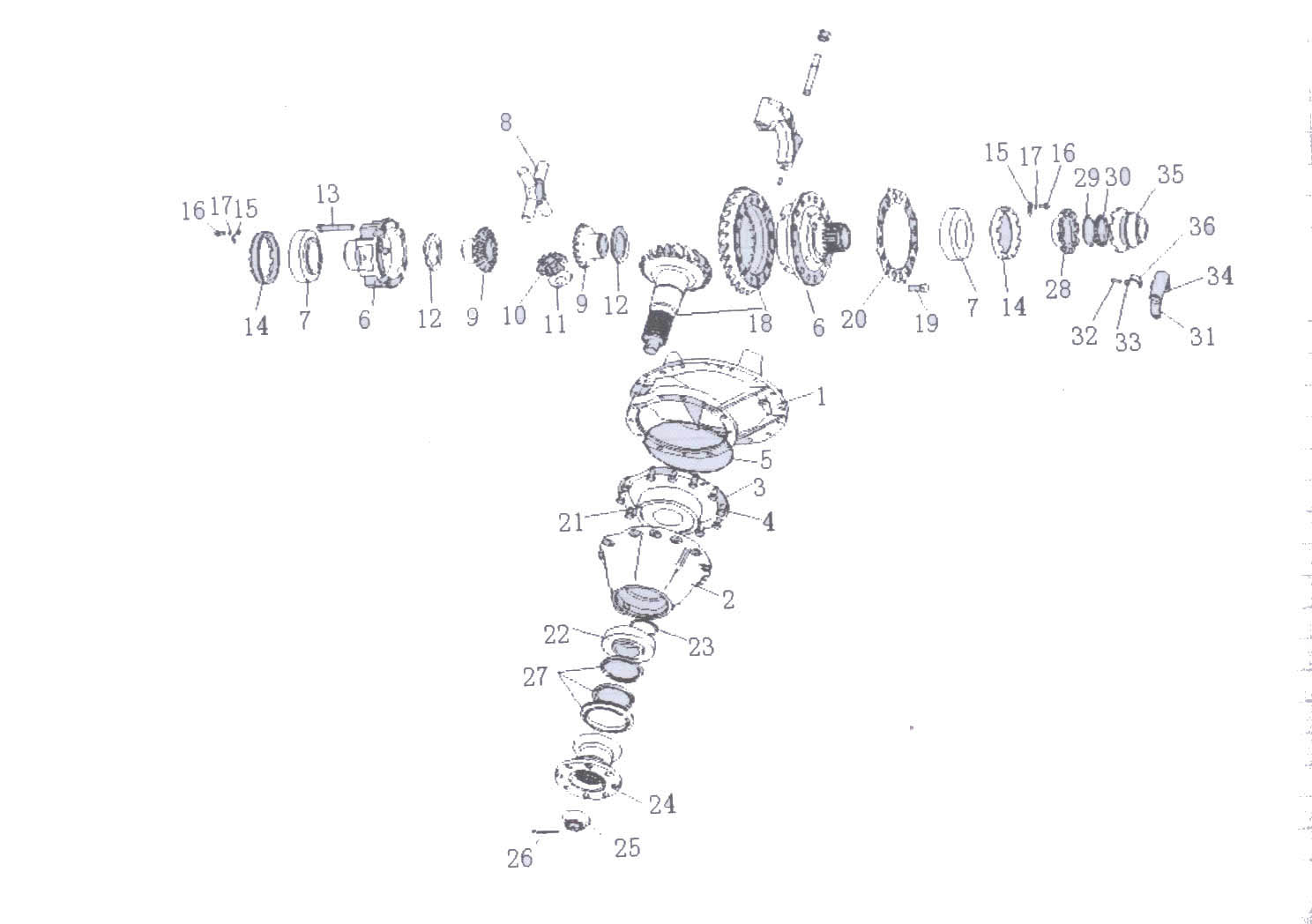

REAR DRIVING AXLE, SINOTRUK HOWO SPARE PARTS CATALOG
| REAR DRIVING AXLE, HC16 AXLE | |||
| Serial | Number | Name | Quantity |
| AZ9231342018 | rear brake lining (8 holes 202x220x14.5) | ||
| AZ9231320273 | differential assy (0273) | ||
| 1 | 199012320098 | main reduction case | 1 |
| 2 | WG9012320131 | bearing seat | 1 |
| 3 | WG9012320173-176 | adjusting gasket | 1 |
| 4 | Q150B1230TF2 | hexagonal head bolt | 12 |
| 5 | WG9012320133 | sealing ring | 1 |
| 6 | AZ9231320274 | differential case | 1 |
| 7 | 190003326148 | cone rolling bearing | 2 |
| 8 | AZ9231320150 | universal joint shaft | |
| 9 | WG9231320151 | half shaft gear | 2 |
| 10 | WG9231320152 | planetary gear | 4 |
| 11 | WG9231320153 | planetary gear gasket | 4 |
| 12 | AZ9231320154-158 | adjusting gasket | 1 |
| 13 | WG9231320169 | hexagonal head bolt | 8 |
| 14 | WG3809320159 | bearing adjusting nut for differential | 2 |
| 15 | WG79000320027 | thrust washer | 2 |
| 16 | Q150B0816 | hexagonal head bolt | 2 |
| 17 | Q40308 | spring gasket | 2 |
| 18 | WG9231320912 | cone gear ratio 4.8 | 1 |
| 18 | WG9231320911 | cone gear ratio 3.93/4.42 | 1 |
| 18 | WG9231320913 | cone gear ratio 5.73 | 1 |
| 19 | Q151B1632TF2 | hexagonal head bolt | 16 |
| 20 | WG9114320003 | locking plate-driven cone gear bolt | 1 |
| 21 | 190003326546 | cone rolling bearing | 1 |
| 22 | 190003326236 | cone rolling bearing | 1 |
| 23 | WG880320002-15 | adjusting gasket | 1 |
| 24 | WG9231320110 | Φ165 flange | 1 |
| 25 | WG79000320013 | flange nut | 1 |
| 26 | Q5005055 | cotter | 1 |
| 27 | WG9231320001 | main reduction oil seal assy | 1 |
| 28 | WG3809320155 | fixed shifting sleeve | 1 |
| 29 | WG3809320158 | thrust washer | 1 |
| 30 | WG3809320157 | nut | 1 |
| 31 | WG9012320014 | shifting fork | 1 |
| 32 | Q2800825 | slotted cone head locking screw | 1 |
| 33 | Q340B08 | I-type hexagon nut | 1 |
| 34 | WG1800320077 | shifting fork moving block | 2 |
| 35 | WG3809320156 | sliding shifting sleeve | 1 |
| 36 | WG9012320023 | bending plate | 1 |
| 37 | WG2297Y4835 | nameplate | 2 |
