Cylinder Cap, Sinotruk Spare Parts Pdf

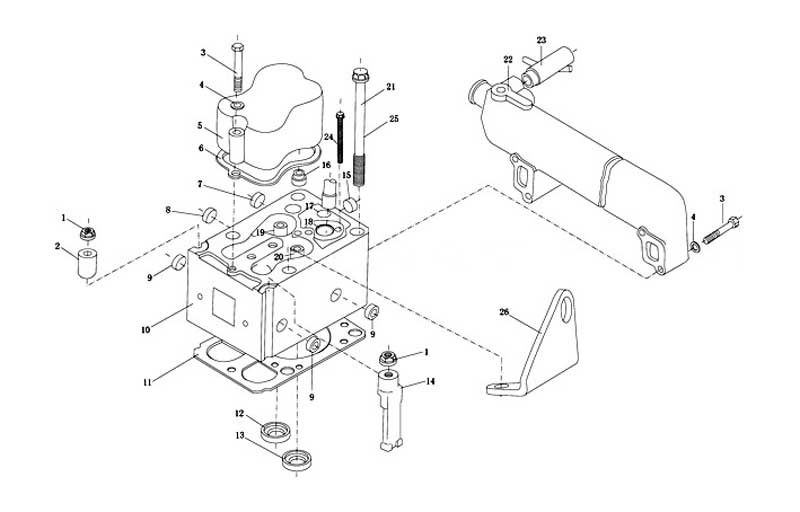

| CYLINDER CAP | ||
| WEICHAI WD615 ENGINE PARTS CATALOG | ||
| Serial | Part No. | Name |
| 1 | 61200040034 | Nut |
| 2 | 61200040023 | Clip |
| 3 | 90003800466 | Bolt |
| 4 | 90003932023 | Spring washer |
| 5 | 612600040149 | Cover |
| 6 | 614040021 | Joint |
| 7 | 90003989277 | Cover plug |
| 8 | 90003989721 | Cover plug |
| 9 | 90003989294 | Cover plug |
| 10 | 612600040294 | Cover |
| 11 | 61500040049 | Joint |
| 11 | 612600040178 | Joint |
| 12 | 61560040057 | Intake valve seat |
| 13 | 81560040037 | Exhaust valve seat |
| 14 | 61200040027 | Clip |
| 15 | 90003909725 | Cover plug |
| 16 | 612600040114 | Scraper |
| 17 | 406060010 | Seal ring |
| 18 | 612600040099 | Nozzle holder |
| 18 | 61560040049 | Nozzle holder |
| 19 | 612600040113 | Valve guide |
| 20 | 61500040014 | Spring base |
| 21 | 61500040023 | Bolt |
| 22 | 61500040102 | Pipe |
| 23 | 61500060045 | Connecting piece |
| 24 | 612600080383 | Bolt |
| 25 | 612600040253 | Bolt |
| 26 | 612600040238 | Swing bracket |
