Cylinder Body-One, Howo Truck Parts Catalog Pdf

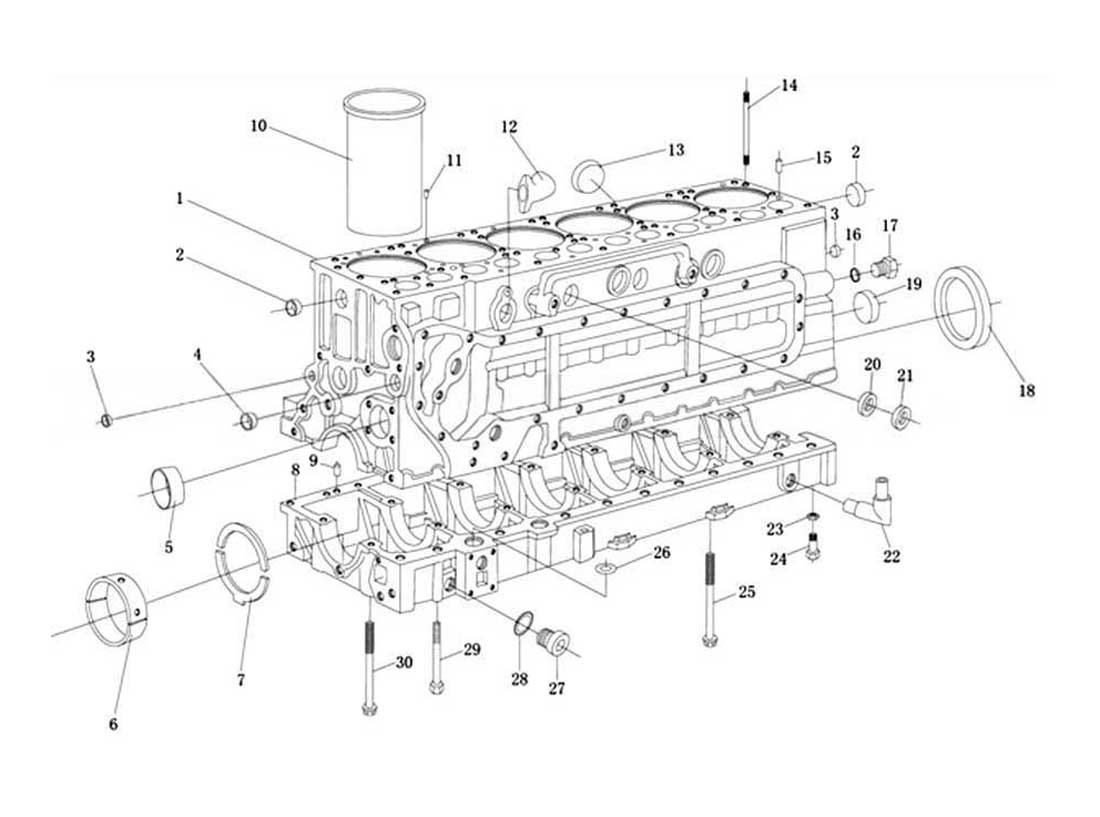

| CYLINDER BODY-ONE | ||
|---|---|---|
| WEICHAI WD615 ENGINE PARTS CATALOG | ||
| Serial | Part No. | Name |
| 1 | 612600011792 | Crankcaase |
| 2 | 90003982121 | Corehole plug |
| 3 | 90003989480 | Corehole plug |
| 4 | 90003989204 | Corehole plug |
| 5 | 61560010029 | Bush |
| 5 | 612300010990 | Bush |
| 6 | 81500010046 | Shell pin |
| 7 | 81500010125 | Stop washer |
| 8 | 61500010366 | Crankcaase |
| 9 | 90003901604A | Dowel pin |
| 10 | 61500010344 | Liner |
| 11 | 90003909626 | Dowl pin |
| 12 | 614010279 | Elbowconnector |
| 13 | 90003989210 | Corehole plug |
| 14 | 61500010185 | Bolt |
| 15 | 90003901604 | Dowel pin |
| 16 | 90003098086 | Seal Ring |
| 17 | 61460070011 | Plug |
| 18 | 61500010100 | Gasket |
| 19 | 90003989288 | Corehole plug |
| 20 | 90003989289 | Corehole plug |
| 21 | 90003982915 | Corehole plug |
| 22 | 612600070097 | Pipe |
| 23 | 188250083 | Washer |
| 24 | 90003862428 | Screw |
| 25 | 614010217 | Bolt |
| 26 | 81400010032 | Sealring |
| 27 | 90003962050 | plug |
| 28 | 9003098086 | Seal washer |
| 29 | 90003802493 | Bolt |
| 30 | 614010114 | Bolt |
