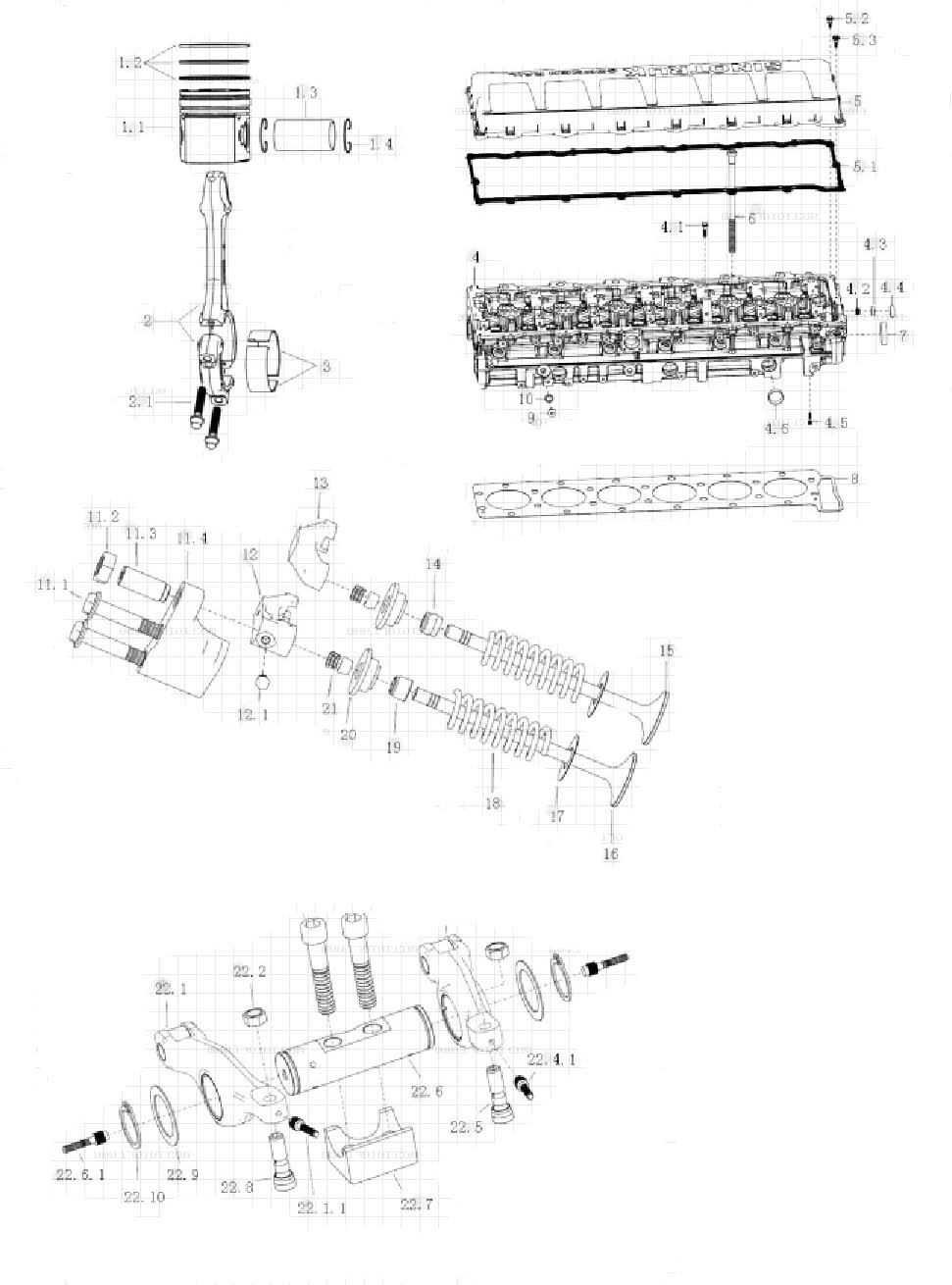

CONNECTING ROD, PISTON & VALVE MECHANISM
| Connecting Rod, Piston & Valve Mechanism | ||
| SINOTRUK MC11 ENGINE CATALOG | ||
| Serial | Part Number | Name |
| 201V02500-6126 | D20 piston kit | |
| 1.1 | 200V02511-0771 | piston |
| 1.2 | 201V02503-6001 | Ring Assembly |
| 1.3 | 200V02502-0120 | Piston pin |
| 1.4 | 200V90810-0038 | Piston pin retaining ring |
| 2 | 201-02400-6120 | Rod assembly |
| 2.1 | 200V90490-0133 | Rod bolt |
| 3 | 201V02410-6698 | Connecting rod bearing |
| 4 | 200-03100-6423 | Cylinder head assembly 70HZ |
| 4.1 | MQ6-03215-6307 | Hexagon flange bolts Q186-M8X35-8.8-MAN183-PHR |
| 4.2 | 200V90310-0272 | Plugs |
| 4.3 | 200V91606-0040 | Bowl plug 25,20 |
| 4.4 | 200V91606-0036 | Bowl plug 32,30 |
| 4.5 | MQ6-21649-0003 | Sealing plug 6X5 |
| 4.6 | 200V91606-0090 | Bowl plug 40, 15 |
| 5 | 201V03401-6024 | Cylinder head cover assembly |
| 5.1 | 201V03905-0177 | Cylinder head cover gasket |
| 5.2 | 201V96210-0087 | Bolt sleeve assembly |
| 5.3 | 201V96210-0080 | Bolt assemblies damping element |
| 6 | 200V90020-0421 | Head bolt |
| 7 | 200V91606-0063 | Bowl plug 63,10 |
| 8 | 201V03901-0403 | Cylinder head gasket |
| 9 | MQ6-08049-0032 | Plugs |
| 10 | MQ6-56631-0107 | Composite gasket BS-16,7 X24,0 -ST / FPM1-80 |
| 200-04251-6000 | EVB platen assembly | |
| 11.1 | MQ6-03216-8412 | Hexagon flange bolts Q186-M10X60-10.9-MAN183-B1 |
| 11.2 | 200V90501-0083 | Hex nut M14X1 |
| 11.3 | 200V04205-0044 | Adjusting screw |
| 11.4 | 200V04251-0006 | EVB platen |
| 12 | 200V04120-6008 | EVB valve bridge assembly |
| 12.1 | 200V90001-0216 | Hex head bolt M6X0,75X5,5 |
| 13 | 200V04120-0019 | Valve bridge |
| 14 | 202V04902-0033 | Intake valve rod seals |
| 15 | 200V04101-0574 | Intake valve |
| 16 | 200V04101-0546 | Exhaust valve |
| 17 | 200V90701-0243 | Spacer |
| 18 | 200V04102-0159 | Valve spring |
| 19 | 202V04902-0035 | Valve rod seals |
| 20 | 200V04103-0108 | Valve spring retainer |
| 21 | 200V04104-0034 | Air lock folder |
| 201-04200-6057 | Rocker mechanism | |
| 22.1 | 202-04201-6004 | Exhaust rocker arm assembly |
| 22.1.1 | MQ6-21649-0005 | Sealing plug 4X3,7 |
| 22.2 | 200V90501-0030 | Hex nut M10X1 |
| 22.3 | MQ6-02191-0616 | Hexagon socket head cap screws |
| 22.4 | 202-04201-6003 | Intake rocker arm assembly |
| 22.4.1 | MQ6-21649-0005 | Sealing plug 4X3,7 |
| 22.5 | 200V04205-5010 | Adjusting screw |
| 22.6 | 200-04203-5065 | Rocker shaft assembly |
| 22.6.1 | MQ6-21649-0003 | Sealing plug 6X5 |
| 22.7 | 200V04202-0136 | Rocker seat |
| 22.8 | 200V04205-0045 | Adjusting screw |
| 22.9 | 200V90701-0234 | washer |
| 22.1 | MQ6-29010-0126 | Shaft circlip 32X1,5 |
