FUEL FILTER, SITRAK PARTS CATALOGS

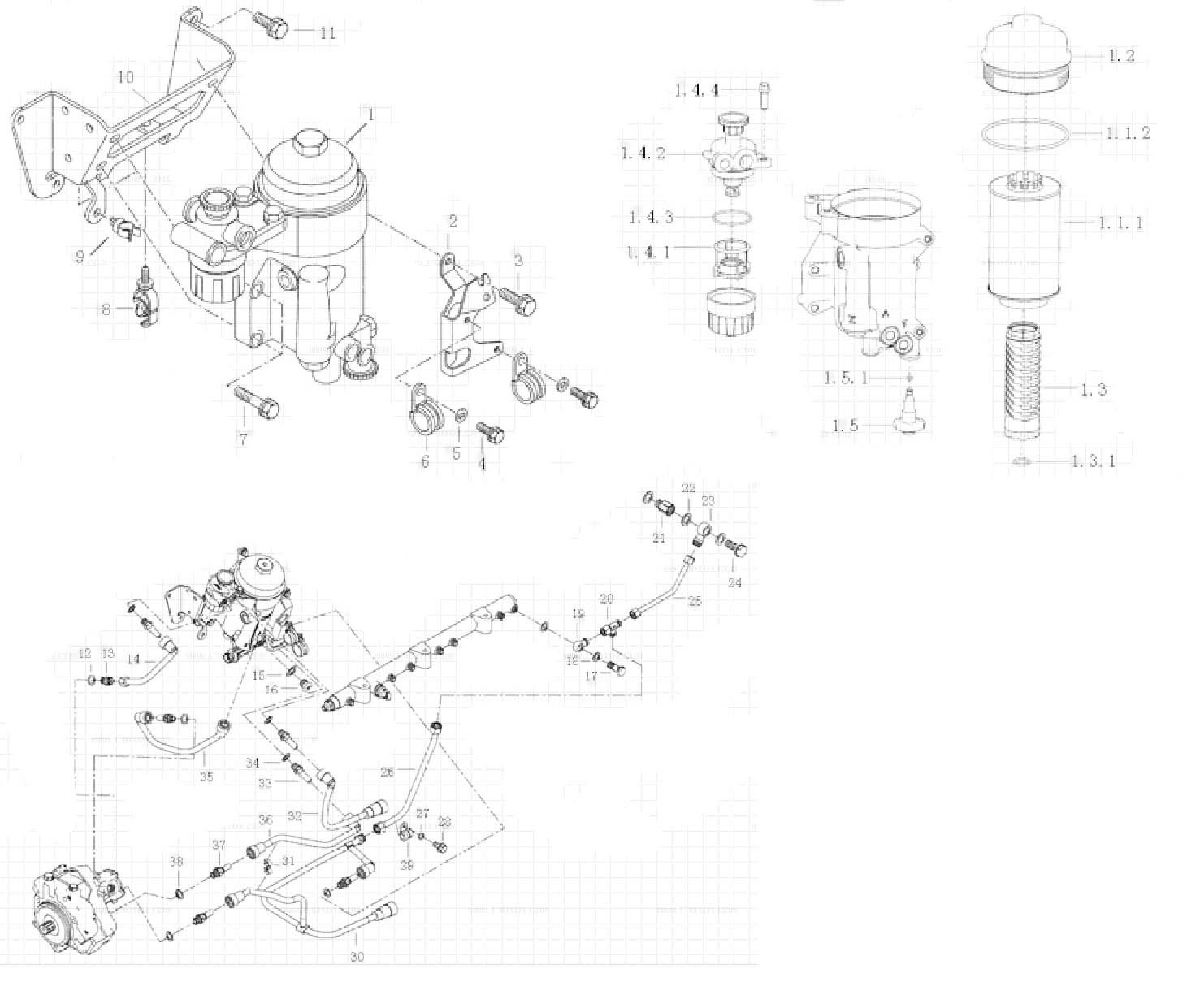

| Fuel Filter | ||
| SINOTRUK MC11 ENGINE CATALOG | ||
| Serial | Part Number | Name |
| 1 | 201V12501-7289 | Fuel filter (without heater) |
| 1.1 | 201V12503-0061 | Core fuel filter with O-ring |
| 1.1.1 | 201V12503-0063 | Fine filter cartridge |
| 1.1.2 | 200V96501-0581 | O-ring D100 + -0,84XD4 + -0,13 HNBR60 + -5 SHORE A |
| 1.2 | 201V12504-0030 | Filter cover with O-ring |
| 1.2.1 | 200V96501-0581 | O-ring D100 + -0,84XD4 + -0,13 HNBR60 + -5 SHORE A |
| 1.3 | 201V12503-0082 | Fuel filter holder with O-ring |
| 1.3.1 | 200V96501-0621 | O-ring 18X2,5 FPM 60 SHORE |
| 1.4 | 201V12150-0002 | Hand pump with bolts |
| 1.4.1 | 201V12503-0084 | Hand pump filter with O-ring 100 MYM |
| 1.4.1.1 | 201V12503-0083 | Hand pump filter 100 MYM |
| 1.4.1.2 | 200V96501-0604 | O-Ring 50 X 2,5 HNBR |
| 1.4.2 | 201V12502-0014 | Hand oil pump cover with O-ring |
| 1.4.2.1 | 200V96501-0604 | O-Ring 50 X 2,5 HNBR |
| 1.4.3 | 200V96501-0604 | O-Ring 50 X 2,5 HNBR |
| 1.4.4 | 201V90020-0428 | Hexagon shoulder bolts SF-M8X25 |
| 1.5 | 201V90310-0268 | Drain cock with O-ring |
| 1.5.1 | 200V96501-0605 | O-Ring 4,5 X 2 FPM |
| 2 | 200V12540-5110 | Check valve support |
| 3 | MQ6-03216-8304 | Hexagon flange bolts Q186-M8X20-10.9-MAN183-B1 |
| 4 | MQ6-03216-8203 | Hexagon flange bolts Q186-M6X16-10.9-MAN183-B1 |
| 5 | MQ6-15013-0409 | Washer GB / T97.1- 6-MAN183-B1 |
| 6 | MQ6-67300-2525 | Retaining clip D1-25X15-W3-EPDM WW CR |
| 7 | MQ6-03216-8308 | Hexagon flange bolts Q186-M8X40-10.9-MAN183-B1 |
| 8 | 200V97401-0565 | Single pipe clamp |
| 9 | 200V97430-0001 | Bellows clamp |
| 10 | 200-12540-6008 | Fuel filter bracket assembly with a pipe clamp |
| 11 | MQ6-03216-8303 | Hexagon flange bolts Q186-M8X16-10.9-MAN183-B1 |
| 12 | MQ6-56631-0106 | Composite gasket BS-14,7 X22,0 -ST / FPM1-80 |
| 13 | 200V98130-0579 | Connector M14X1,5-NW10 |
| 14 | 200V12304-5849 | Fuel filter - fuel pump |
| 15 | MQ6-56631-0106 | Composite gasket BS-14,7 X22,0 -ST / FPM1-80 |
| 16 | MQ6-08049-0031 | Plug M14X1,5-ST-M3360-RK10-K |
| 17 | 200V98150-0175 | Hollow bolt |
| 18 | MQ6-56631-0106 | Composite gasket BS-14,7 X22,0 -ST / FPM1-80 |
| 19 | 200V98103-0037 | Annular connector |
| 20 | MQ6-71270-2103 | T-joint L10-A4C |
| 21 | 200V98130-0671 | Screw-in connector |
| 22 | MQ6-56631-0106 | Composite gasket BS-14,7 X22,0 -ST / FPM1-80 |
| 23 | 200V98103-0037 | Annular connector |
| 24 | 200V98150-0175 | Hollow bolt |
| 25 | 200V12305-5298 | Injector return pipe - pressure limiting valve |
| 26 | 200V12305-5364 | Return line pressure limiting valve - Reducing fittings |
| 27 | MQ6-15013-0411 | Washer GB / T97.1-8-200HV-MAN183-B1 |
| 28 | MQ6-03216-8303 | Hexagon flange bolts Q186-M8X16-10.9-MAN183-B1 |
| 29 | MQ6-67300-1036 | Retaining clip D1-10X20-W1-2-EPDM |
| 30 | 200V12305-5300 | Return pipe |
| 31 | 200V97401-0552 | Dual hose clamp |
| 32 | 200V12304-5848 | Fuel strainer inlet pipe |
| 33 | 200V98130-0458 | Screw-fitting M14X1,5 / SAE12 |
| 34 | MQ6-56631-0106 | Composite gasket BS-14,7 X22,0 -ST / FPM1-80 |
| 35 | 200V12304-5850 | Fuel pipe pump - Filter |
| 36 | 200V12304-5851 | Fuel pipe filters - high pressure pump |
| 37 | 200V98130-0458 | Screw-fitting M14X1,5 / SAE12 |
| 38 | MQ6-56631-0106 | Composite gasket BS-14,7 X22,0 -ST / FPM1-8 |
