ENGINE SURVAILLANCE & ECU CABLE, MC11 SITRAK PARTS CATALOG
ENGINE SURVAILLANCE |
SINOTRUK MC11 ENGINE CATALOG |
Serial |
Part Number |
Name |
1 |
200V27120-7038 |
Speed Sensor |
2 |
MQ6-03216-8202 |
Hexagon flange bolts |
3 |
MQ6-03216-8203 |
Hexagon flange bolts |
4 |
200V27120-7038 |
Speed Sensor |
5 |
MQ6-56631-0109 |
Composite sealing gasket |
6 |
VG1092090311 |
Electronic oil pressure sensor |
7 |
VG1557090012 |
Temperature and pressure sensors |
8 |
Q150B0414 |
Hex head bolt |
9 |
Q41804 |
Wave spring washers |
10 |
201V27421-0190 |
Water temperature sensor |
11 |
MQ6-56631-0105 |
Composite sealing gasket |

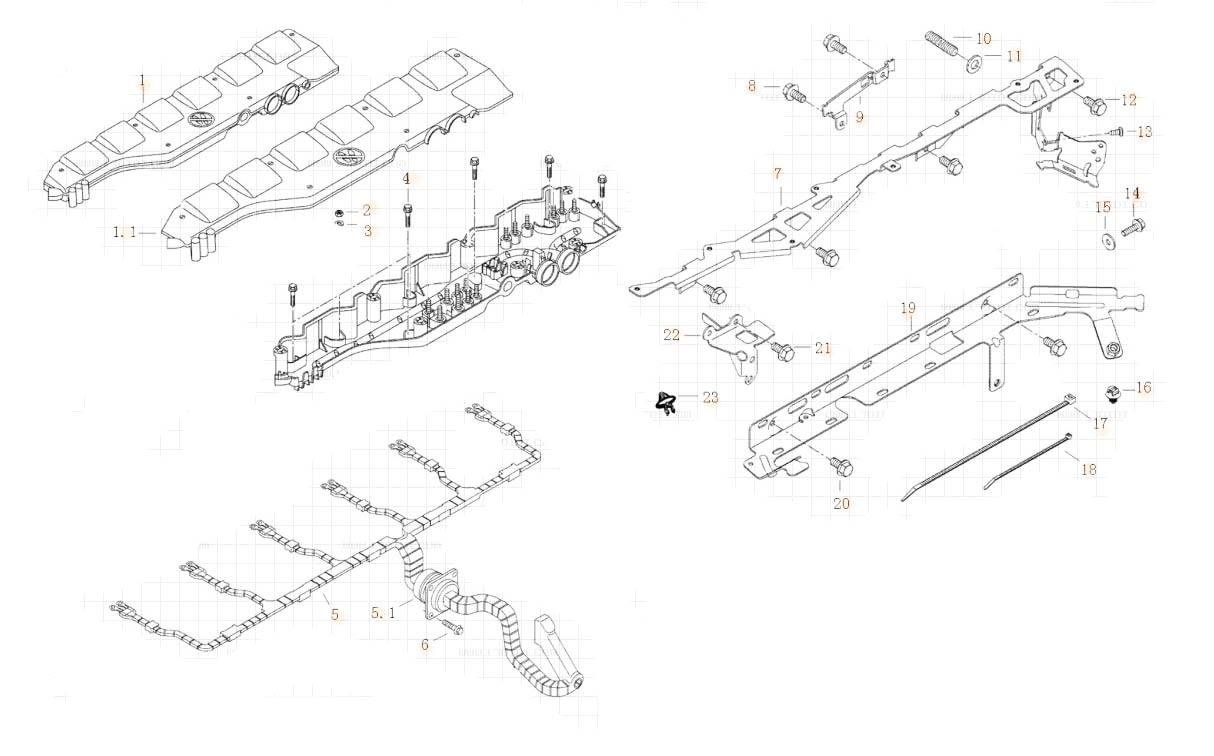

ECU CABLE |
SINOTRUK MC11 ENGINE CATALOG |
Serial |
Part Number |
Name |
1 |
812W25424-6343 |
Cable assy |
1.1 |
810W25424-0033 |
Cable tube |
1.2 |
812W25458-6745 |
Cable assy |
2 |
MQ6-11099-0043 |
Screw nut |
3 |
MQ6-15013-0911 |
Washer |
4 |
MQ6-03216-8203 |
Hexagon flange bolts |
5 |
202V25413-6256 |
Injector cable |
5.1 |
202V25413-6258 |
Injector cable sealing ring |
6 |
MQ6-03216-8203 |
Hexagon flange bolts |
7 |
200V25441-5081 |
Harness pipe support |
8 |
MQ6-03216-8303 |
Hexagon flange bolts |
9 |
200V25441-0342 |
Harness Bracket |
10 |
200V91020-0310 |
Stud |
11 |
MQ6-16169-0047 |
Lock washer |
12 |
MQ6-03216-8303 |
Hexagon flange bolts |
13 |
MQ6-07159-0014 |
Self-tapping screws |
14 |
MQ6-03216-8204 |
Hexagon flange bolts |
15 |
MQ6-15193-0307 |
Large Washer |
16 |
200V97401-0557 |
Single line bundle Ties |
17 |
190003171392 |
Plastic fastening tape |
18 |
190003171390 |
Plastic fastening tape |
19 |
200V25441-6109 |
Cable Bracket |
20 |
MQ6-03216-8303 |
Hexagon flange bolts |
21 |
MQ6-03216-8303 |
Hexagon flange bolts |
22 |
200V27440-5035 |
Rail pressure sensor bracket |
23 |
200V97430-0005 |
Bellows clamp |
