Shroud & Windshield, Howo Cabin Parts Catalogs

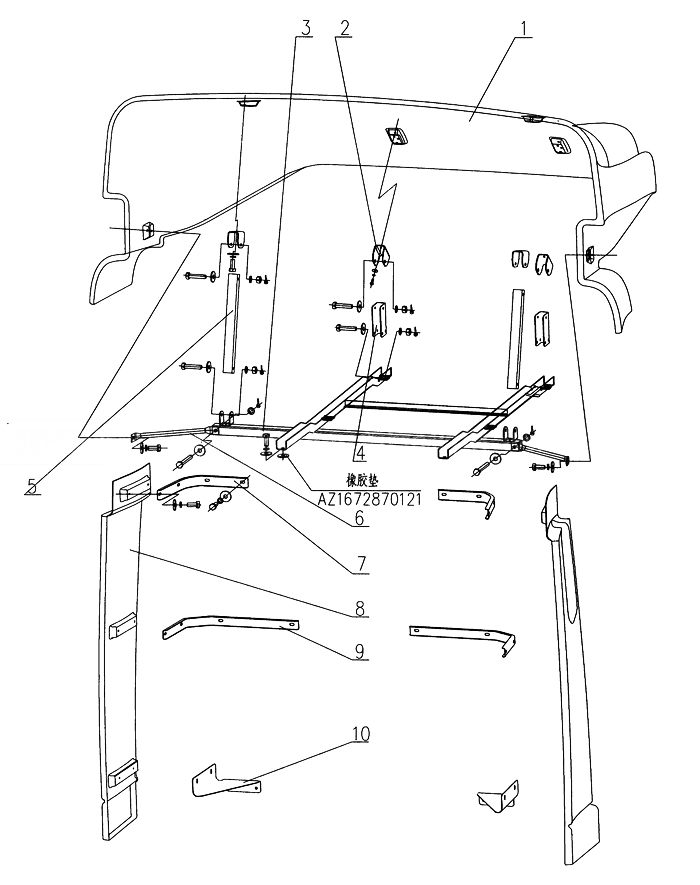

| Shroud & Windshield | ||
| HOWO TRUCK CAB | ||
| Sequence | Name | Part No. |
| 20 | Spoiler | WG1644870016 |
| 1 | Shroud assembly | WG1642870141 |
| 2 | Supports | AZ1642870145 |
| 3 | Bracket welding assembly | AZ1642870143 |
| 4 | Front bracket | AZ1642870148 |
| 5 | After the stent | AZ1642870146 |
| 6 | Side stand | AZ1642870147 |
| 7 | Left bracket | WG1644870013 |
| 7 | Right upper bracket | WG1644870019 |
| 7 | Side deflector bracket (on) | AZ1642870153 |
| 8 | Under the deflector (right) | WG1644870011 |
| 9 | Side deflector bracket (in) | AZ1642870014 |
| 10 | Lower bracket (right) | AZ1644870015 |
| 11 | Rubber shock pad | AZ1630230125 |
| 12 | Rubber mat | AZ1672870121 |
| 13 | Nut plate assembly | AZ1642930061 |
| 21 | Deflector on the side bracket | WG1644870017 |
| 22 | Deflector bracket | WG1644870020 |
| 10a | Lower bracket (left) | AZ1644870018 |
| 10b | Hex head bolts | Q150B0820 |
| 10c | Large Washer | Q40208 |
| 10d | Spring washer | Q40308 |
| 2a | Hex head bolts | Q150B0820 |
| 2b | Large Washer | Q40208 |
| 2c | Spring washer | Q40308 |
| 3a | Rubber mat | AZ1672870121 |
| 3b | Hex head bolts | Q150B0820 |
| 3c | Large Washer | Q40208 |
| 3d | Spring washer | Q40308 |
| 4a | Hex head screw bolt hole | Q173B0870 |
| 4b | Cotter | Q5002020 |
| 4c | Large Washer | Q40208 |
| 4d | Serrated lock washers | Q41208 |
| 4e | I type hexagon nuts - fine tooth | Q241B08 |
| 5a | Hex head screw bolt hole | Q173B0870 |
| 5b | Cotter | Q5002020 |
| 5c | Large Washer | Q40208 |
| 5d | Serrated lock washers | Q41208 |
| 5e | I type hexagon nuts - fine tooth | Q341B08 |
| 6a | Hex head screw bolt hole | Q173B0870 |
| 6b | Cotter | Q5002020 |
| 6c | Serrated lock washers | Q41208 |
| 6d | I type hexagon nuts - fine tooth | Q341B08 |
| 6e | Large Washer | Q40208 |
| 6f | Hex head bolts | Q150B0820 |
| 7a | Hex head bolts | Q150B0820 |
| 7b | Large Washer | Q40208 |
| 7c | Spring washer | Q40308 |
| 8a | Lower baffles (left) | AZ1644870012 |
| 9a | Hex head bolts | Q150B0820 |
| 9b | Large Washer | Q40208 |
| 9c | Spring washer | Q40308 |
