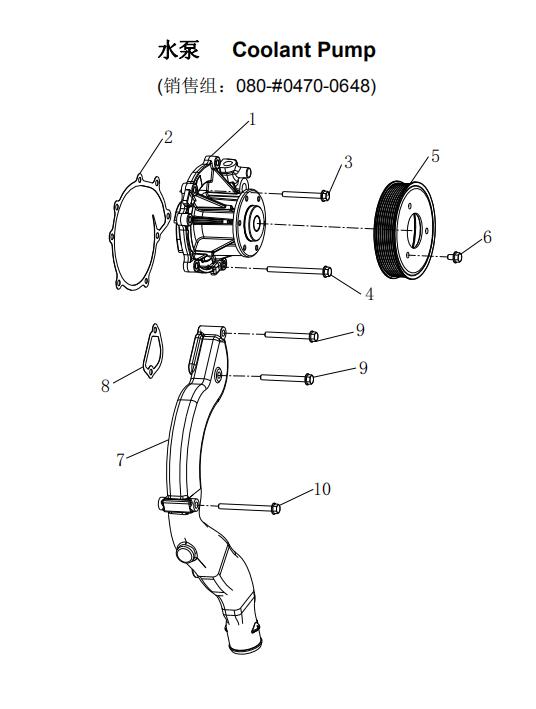

Coolant Pump, Sitrak Parts Catalogs
| 序号 No. |
图号 Part No. |
单车用量 Qty |
中文名称 Part Name |
Part Name | 规格 Standard Specification |
| 1 | 080V06500-6680 | 1 | 水泵 | Coolant pump | |
| 2 | 080V06901-0196 | 1 | 密封垫 | Gasket | |
| 3 | MQ6-03216-8314 | 5 | 六角头螺栓 | Hex bolt | M8X70-10.9-MAN183-B1 |
| 4 | MQ6-03216-8317 | 3 | 六角头螺栓 | Hex bolt | M8X100-10.9-MAN183-B1 |
| 5 | 201V06503-0384 | 1 | 水泵皮带轮 | Pulley | |
| 6 | MQ6-03215-8302 | 3 | 六角头螺栓 | Hex bolt | M8X12-10.9-MAN183-B1 |
| 7 | 080V06302-0861 | 1 | 冷却液弯管 | Coolant elbow | |
| 8 | 080V06903-0059 | 1 | 密封垫 | Gasket | |
| 9 | MQ6-03216-8315 | 2 | 六角头螺栓 | Hex bolt | M8X80-10.9-MAN183-B1 |
| 10 | MQ6-03216-8333 | 1 | 六角头螺栓 | Hex bolt | M8X95-10.9-MAN183-B1 |
