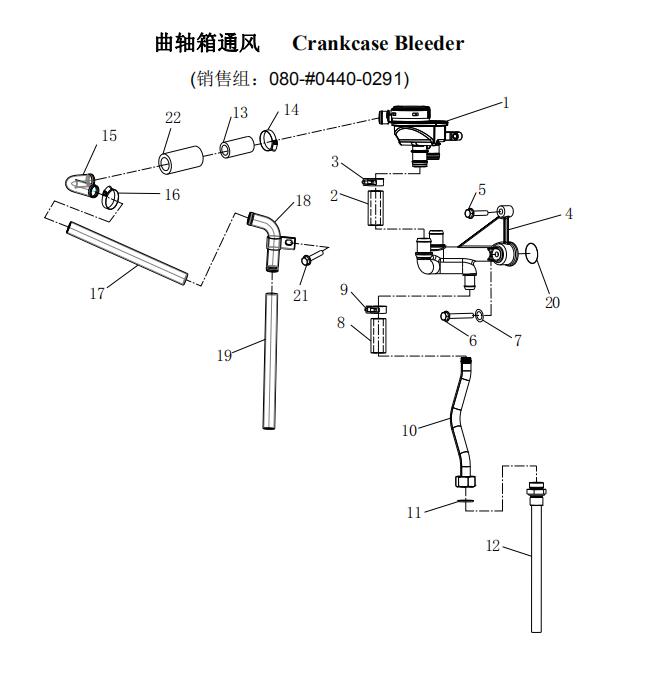

Crankcase Bleeder, Sitrak Parts Catalogs
| 序号 No. |
图号 Part No. |
单车用量 Qty |
中文名称 Part Name |
Part Name | 规格 Standard Specification |
| 1 | 082V01804-0011 | 1 | 油气分离器 | Oil separator | |
| 2 | MQ4-27199-1260 | 2 | 软管 | Hose | N1 -25 X 60 |
| 3 | MQ6-67420-1235 | 4 | 弹簧夹 | Spring clip | A-35X12 |
| 4 | 080V01802-0448 | 1 | 通风道 | BLEEDER LINE | |
| 5 | MQ6-03216-8307 | 1 | 六角头螺栓 | Hex bolt | Q186- M8X35-10.9-MAN183-B1 |
| 6 | MQ6-03216-8332 | 1 | 六角头螺栓 | Hex bolt | Q186- M8X85-10.9-MAN183-B1 |
| 7 | MQ6-56631-0125 | 1 | 密封圈 | Sealing ring | BS-8,7 X14,0 -ST/FPM1-80 |
| 8 | MQ4-27199-1270 | 1 | 软管 | Hose | N1 -18 X 60 |
| 9 | MQ6-67420-1226 | 2 | 弹簧夹 | Spring clip | A-26X12 |
| 10 | 080V05703-5799 | 1 | 回油管 | Oil return pipe | |
| 11 | MQ6-56190-0722 | 2 | 密封圈 | Sealing ring | A24X29-Cu |
| 12 | 080V05702-5948 | 1 | 回油管 | Oil return pipe | |
| 13 | 082V96330-0246 | 1 | 连接软管 | Hose | 22-1x 45 |
| 14 | MQ6-67420-1232 | 2 | 弹簧夹 | Spring clip | A-32X12 |
| 15 | 082V01802-5670 | 1 | 连接弯管 | Tube | |
| 16 | 90003989340 | 3 | 软管卡箍 | Hose clamp | |
| 17 | 082V96330-0333 | 1 | 带纤维夹层的橡胶 软管 |
Hose | |
| 18 | 082V01802-5600 | 1 | 连接弯管总成 | Tube | |
| 19 | 082V96330-0334 | 1 | 带纤维夹层的橡胶 | Hose | |
| 20 | MQ6-56332-2167 | 1 | O 型圈 | O-RING | 32X2,5 B-ACM 1-60 |
| 21 | MQ6-03216-8305 | 1 | 六角头螺栓 | Hex bolt | Q186-M8X25-10.9-MAN183-B1 |
| 22 | 080V96330-0366 | 1 | 隔热软管 | Insulating hose |
