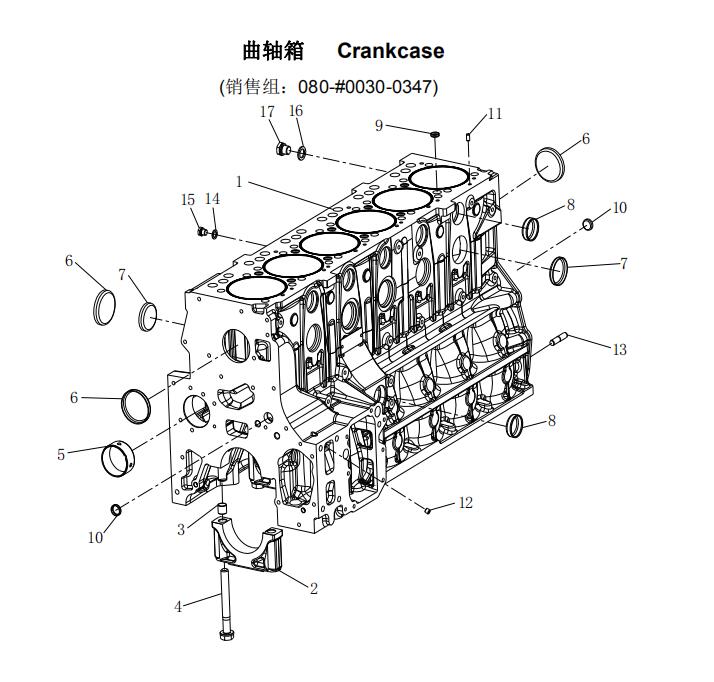

Crankcase, Sitrak Engine Parts Catalogs
| 序号 No. |
图号 Part No. |
单车用量 Qty |
中文名称 Part Name |
Part Name |
| 1 | 080-01101-0723 | 1 | 曲轴箱 | Crankcase |
| 2 | 080V01105-1205 | 6 | 曲轴轴承盖 | Bearing cap |
| 080V01105-1204 | 1 | 曲轴轴承盖 | Bearing cap | |
| 3 | 080V91730-0049 | 14 | 定位套 | Sleeve |
| 4 | 080V90020-0352 | 14 | 主轴承螺栓 | Hex collar bolt |
| 5 | 081V04410-1034 | 4 | 凸轮轴衬套 | Camshaft bush |
| 081V04410-1038 | 1 | 凸轮轴衬套 | Camshaft bush | |
| 6 | 080V91606-0100 | 8 | 碗形塞 | Cover |
| 7 | 080V91606-0091 | 11 | 碗形塞 | Cover |
| 8 | 200V91606-0090 | 8 | 碗形塞 | Cover |
| 9 | MQ6-15094-4109 | 10 | 碗形塞 | Cover |
| 10 | MQ6-15094-4113 | 2 | 碗形塞 | Cover |
| 11 | 080V91301-0083 | 6 | 圆柱销 | Pin |
| 12 | MQ6-21649-0004 | 1 | 碗形塞 | Cover |
| 13 | 080V91301-0087 | 2 | 圆柱销 | Pin |
| 14 | MQ6-56631-0104 | 1 | 复合密封垫圈 | Sealing ring |
| 15 | MQ6-08092-2142 | 1 | 闭锁螺栓 | Screw plug |
| 16 | MQ6-56631-0114 | 2 | 复合密封垫圈 | Sealing ring |
| 17 | MQ6-08042-0211 | 2 | 闭锁螺栓 | Screw plug |
