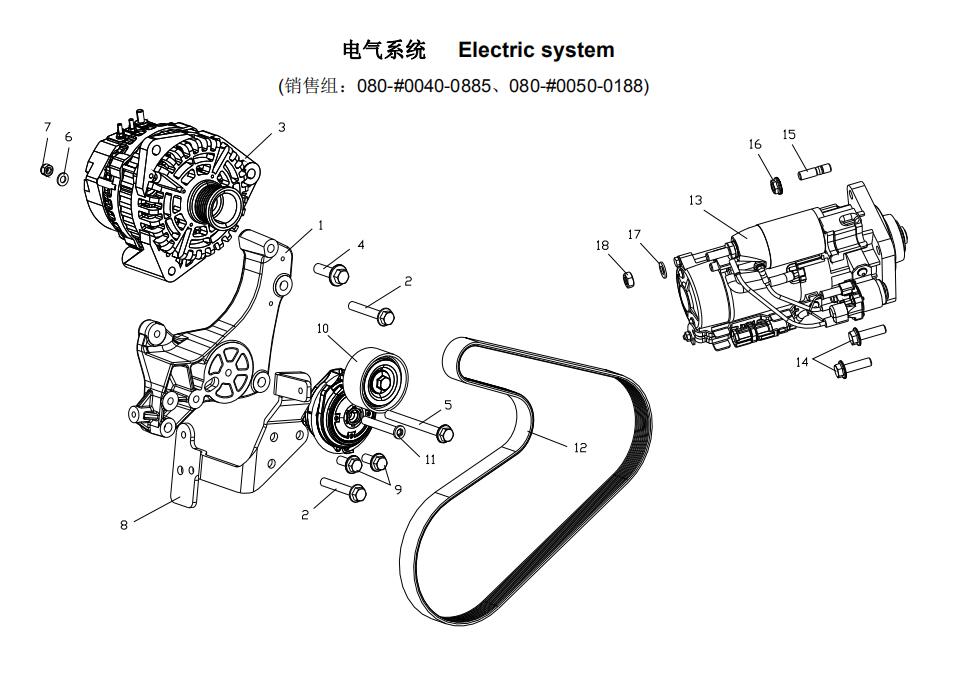

Electric System, Sitrak Parts Catalogs
Keywords: sitrak parts, sitrak parts catalogs, sitrak mc07 catalogs
| 序号 No. |
图号 Part No. |
单车用量 Qty |
中文名称 Part Name |
Part Name |
| 1 | 080V19101-0360 | 1 | 发电机托架 | Bracket for alternator |
| 2 | MQ6-03216-8413 | 3 | 六角法兰面螺栓 | Hex bolt |
| 3 | 082V26101-7271 | 1 | 发电机 | Alternator |
| 4 | MQ6-03216-8508 | 1 | 六角法兰面螺栓 | Hex bolt |
| 5 | MQ6-03216-8418 | 1 | 六角法兰面螺栓 | Hex bolt |
| 6 | MQ6-15013-0911 | 1 | 垫圈 | Washer |
| 7 | MQ6-11099-0043 | 1 | 螺母 | Nut |
| 8 | 080V19101-5294 | 1 | 发电机支架 | Bracket for alternator |
| 9 | MQ6-03216-8405 | 2 | 六角法兰面螺栓 | Hex bolt |
| 10 | 080V95800-7479 | 1 | 自动张紧轮 | Automatic Tensioner |
| 11 | 080V90040-0007 | 1 | 沉头螺栓 | Countersunk screw |
| 12 | 080V96820-0243 | 1 | 多楔带 | Narrow joined belt |
| 13 | 080V26201-7236 | 1 | 起动机 | Starter |
| 14 | MQ6-03216-8407 | 2 | 六角法兰面螺栓 | Hex bolt |
| 15 | MQ6-06226-8807 | 1 | 双头螺柱 | Stud |
| 16 | MQ6-11251-2001 | 1 | 螺母 | Nut |
| 17 | MQ6-15016-0312 | 1 | 垫圈 | Washer |
| 18 | MQ6-11181-0115 | 1 | 螺母 | Nut |
