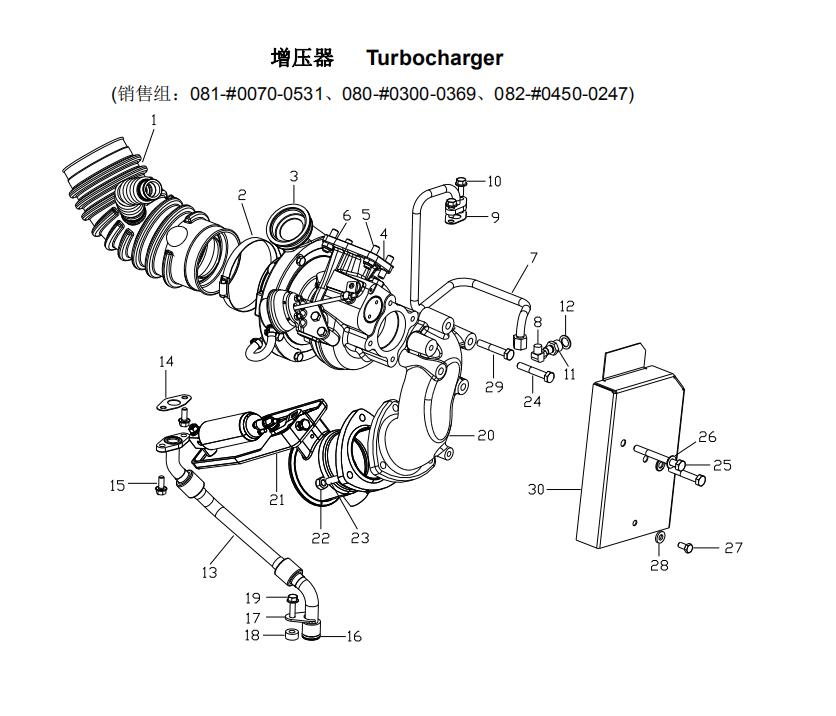

Turbocharger, Sitrak Engine Parts Catalogs
Keywords: sitrak parts, sitrak parts catalogs, sitrak mc07 catalogs
| 序号 No. |
图号 Part No. |
单车用量 Qty |
中文名称 Part Name |
Part Name |
| 1 | 082V09402-0185 | 1 | 增压器进气接管 | Air intake adapter |
| 2 | MQ6-67129-0022 | 1 | 软管卡箍 | Hose clamp |
| 3 | 082V09100-7576 | 1 | 增压器 | Turbocharger |
| 4 | 080V09901-0051 | 1 | 增压器垫片 | Shim |
| 5 | 080V90201-0251 | 4 | 双头螺栓 | Stud |
| 6 | 080V90501-0202 | 4 | 六角螺母 | Nut |
| 7 | 081V05703-5593 | 1 | 增压器进油管 | Tube |
| 8 | MQ6-71230-2104 | 1 | 弯头套管 | Elbow union |
| 9 | 080V96601-0577 | 1 | 垫片 | Shim |
| 10 | MQ6-03216-8304 | 2 | 六角法兰面螺栓 | Hex bolt |
| 11 | MQ6-71259-0008 | 1 | 直活通节 | Straight union |
| 12 | MQ6-56631-0106 | 1 | 复合密封垫圈 | Sealing ring |
| 13 | 081V05701-0379 | 1 | 增压器回油管 | Tube |
| 14 | 080V96601-0576 | 1 | 垫片 | Shim |
| 15 | MQ6-03216-8304 | 2 | 六角法兰面螺栓 | Hex bolt |
| 16 | MQ6-56333-1252 | 1 | O 型圈 | Topic seal |
| 17 | 080V05740-0157 | 1 | 增压器回油管压板 | Bracket |
| 18 | 080V91701-0356 | 1 | 垫圈 | Washer |
| 19 | MQ6-03216-8306 | 1 | 六角法兰面螺栓 | Hex bolt |
| 20 | 081V15201-0111 | 1 | 排气弯管 | Exhaust elbow |
| 21 | 082V15600-6134 | 1 | 排气蝶阀 | Integrated brake flap |
| 22 | MQ6-11241-0106 | 3 | 六角螺母 | Hexagon nut |
| 23 | 080V90201-0254 | 3 | 双头螺栓 | Stud |
| 24 | 082V90001-0129 | 1 | 六角头螺栓 | Hex bolt |
| 25 | 082V90001-0128 | 2 | 六角头螺栓 | Hex bolt |
| 26 | 080V90710-0207 | 2 | 垫圈 | Washer |
| 27 | MQ6-01289-0266 | 1 | 六角头螺栓 | Hex bolt |
| 28 | 080V90710-0314 | 1 | 垫圈 | Washer |
| 29 | 082V90001-0123 | 1 | 六角头螺栓 | Hex bolt |
| 30 | 081V15215-5011 | 1 | 隔热罩 | Heal shield |
