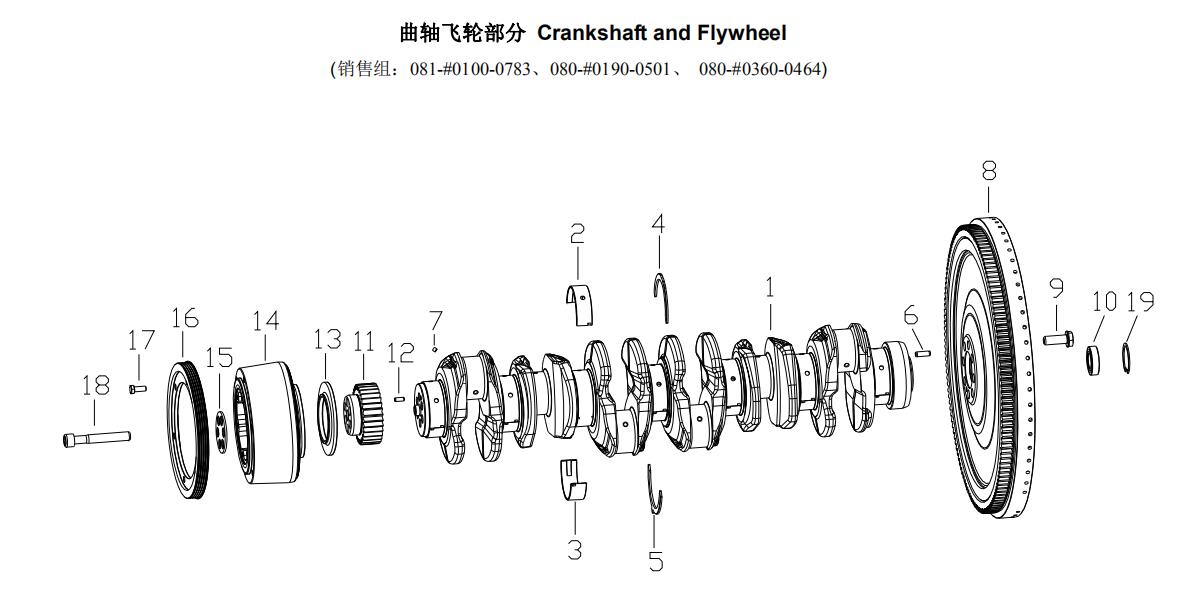

Crankshaft and Flywheel, Sitrak Parts Catalogs
| 序号 No. |
图号 Part No. |
单车用量 Qty |
中文名称 Part Name |
Part Name |
| 1 | 080-02101-0638 | 1 | 曲轴 | Crankshaft |
| 2 | 081V01113-0129 | 7 | 主轴瓦上瓦 | Main-bearing(Upper) |
| 3 | 081V01113-0130 | 7 | 主轴瓦下瓦 | Main-bearing(Lower) |
| 4 | 080V01114-0222 | 2 | 止推片上片 | Trust washer(Upper) |
| 5 | 080V01114-0223 | 2 | 止推片下片 | Trust washer(Lower) |
| 6 | MQ6-22220-1212 | 1 | 销 | Pin |
| 7 | MQ6-21649-0003 | 6 | 密封塞 | Jam |
| 8 | 081-02301-5203 | 1 | 飞轮 | Flywheel |
| 9 | 080V90020-0344 | 8 | 飞轮螺栓 | Hex collar bolt |
| 10 | 080V93410-0149 | 1 | 径向滚动球轴承 | Ball bearing |
| 11 | 080V02115-0251 | 1 | 曲轴分油齿轮 | Crankshaft gear |
| 12 | MQ6-22120-1008 | 1 | 弹性销 | Spring pin |
| 13 | 080V01505-0169 | 1 | 油环 | Oil ring |
| 14 | 080V02201-0158 | 1 | 减震器 | Vibration damper |
| 15 | 080V02205-0021 | 1 | 垫片 | Shim |
| 16 | 080V02601-0607 | 1 | 曲轴皮带轮 | Belt pulley |
| 17 | MQ6-01283-5113 | 6 | 六角头螺栓 | Hex bolt |
| 18 | 080V90030-0036 | 6 | 内六角圆柱头螺栓 | Cylinder screw |
| 19 | MQ6-29020-0128 | 1 | 孔用弹性挡圈 | Retaining Ring |
