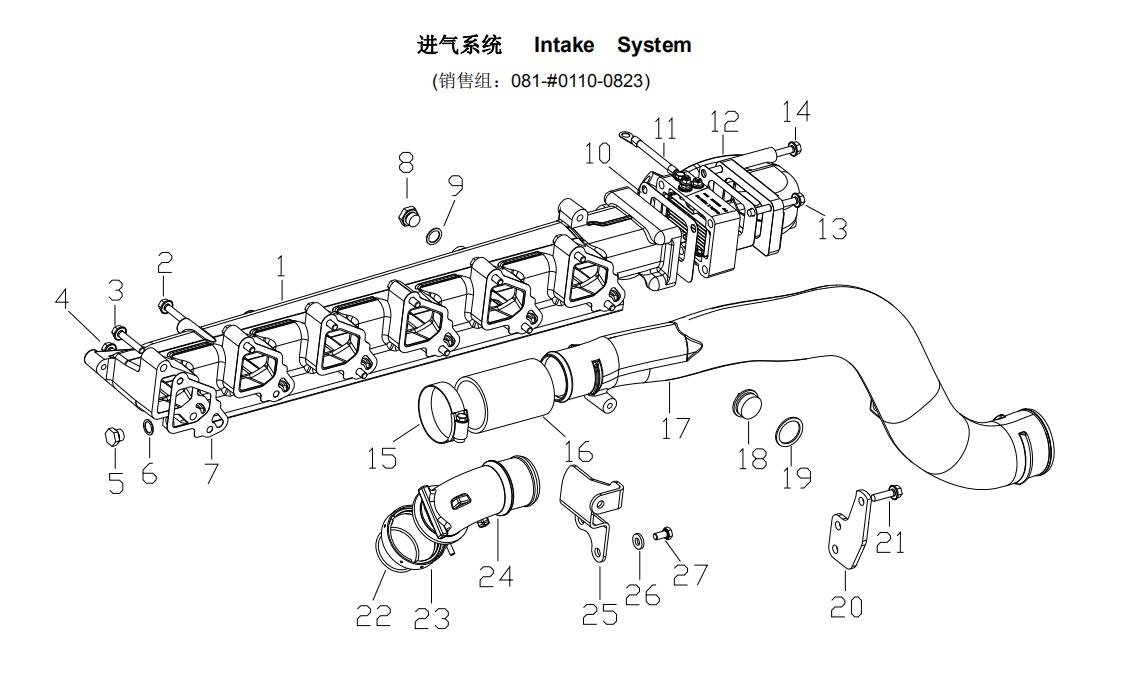

Intake System, Sitrak Engine Parts Catalogs
Keywords: sitrak parts, sitrak parts catalogs, sitrak mc07 catalogs
| 序号 No. |
图号 Part No. |
单车用量 Qty |
中文名称 Part Name |
Part Name |
| 1 | 081V08201-0467 | 1 | 进气管 | Intake manifold |
| 2 | MQ6-03216-8319 | 5 | 六角法兰面螺栓 | Hex bolt |
| 3 | MQ6-03216-8309 | 6 | 六角法兰面螺栓 | Hex bolt |
| 4 | MQ6-03216-8317 | 1 | 六角法兰面螺栓 | Hex bolt |
| 5 | MQ6-08092-0144 | 1 | 闭锁螺栓 | Screw plug |
| 6 | MQ6-56631-0106 | 1 | 复合密封垫圈 | Sealing ring |
| 7 | 081V08902-0212 | 6 | 进气管垫片 | Gasket |
| 8 | MQ6-08092-0145 | 1 | 闭锁螺栓 | Screw plug |
| 9 | MQ6-56631-0107 | 1 | 复合密封垫圈 | Sealing ring |
| 10 | 082V08902-0203 | 2 | 垫片 | Shim |
| 11 | 082V08902-0204 | 1 | 进气加热装置 | Intake heating system |
| 11 | 082V08902-0205 | 1 | 进气法兰 | intake flange |
| 12 | 081V09411-0743 | 1 | 进气弯管 | Intercooler elbow |
| 13 | MQ6-03216-8314 | 1 | 六角法兰面螺栓 | Bolt |
| 14 | MQ6-03216-8320 | 2 | 六角法兰面螺栓 | Bolt |
| 15 | MQ6-67129-0021 | 1 | 管夹 | Hose clamp |
| 16 | 080V96301-0108 | 1 | 管 | Hose |
| 17 | 081V09411-0916 | 1 | 中冷管 | Charge air-pipe |
| 18 | MQ6-08042-0211 | 1 | 闭锁螺栓 | Screw plug |
| 19 | MQ6-56631-0114 | 复合密封垫圈 | Sealing ring | |
| 20 | 081V09440-0165 | 1 | 进气管支架 | Braket |
| 21 | MQ6-03216-8408 | 1 | 六角法兰面螺栓 | Hex bolt |
| 22 | MQ6-56343-1313 | 1 | 密封圈 | Rund |
| 23 | 080V97445-0052 | 1 | 夹子 | Clip |
| 24 | 081V09411-0647 | 1 | 增压进气弯管 | Tube |
| 25 | 081V09440-0127 | 1 | 中冷管支架 | Braket |
| 26 | MQ6-15013-0411 | 2 | 垫圈 | Washer |
| 27 | MQ6-01289-0272 | 2 | 六角头螺栓 | Hex bolt |
