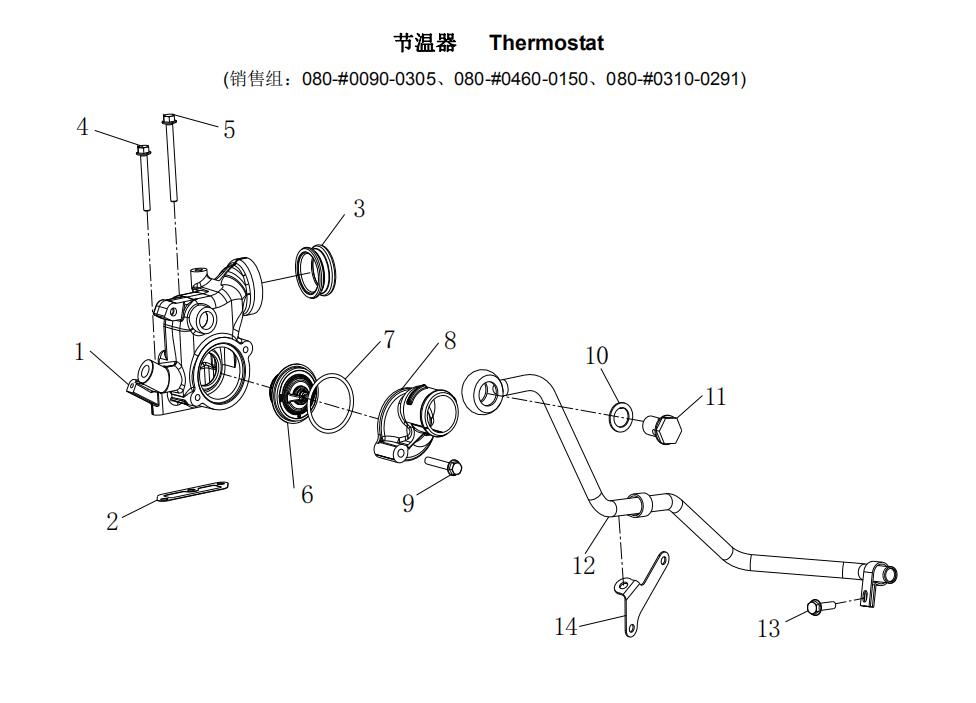

Thermostat, Sitrak MC07 Engine Parts Catalogs
Keywords: sitrak parts, sitrak parts catalogs, sitrak mc07 catalogs
| 序号 No. |
图号 Part No. |
单车用量 Qty |
中文名称 Part Name |
Part Name |
| 1 | 080V06404-0098 | 1 | 节温器壳 | Thermostat housing |
| 2 | 080V06904-0044 | 1 | 节温器垫片 | Gasket |
| 3 | 080V98182-0009 | 1 | 插管 | Extension tube |
| 4 | MQ6-03216-8313 | 2 | 六角头螺栓 | Hex bolt |
| 5 | MQ6-03216-8316 | 1 | 六角头螺栓 | Hex bolt |
| 6 | 080V06402-0099 | 1 | 节温器 | Thermostat |
| 7 | MQ6-56939-0040 | 1 | O 型圈 | O-ring |
| 8 | 080V06405-0041 | 1 | 出水短管 | Outlet pipe |
| 9 | MQ6-03216-8312 | 1 | 六角头螺栓 | Hex bolt |
| 10 | MQ6-56631-0110 | 2 | 密封垫片 | Gasket |
| 11 | MQ6-78340-0109 | 1 | 空心螺栓 | Hollow screw |
| 12 | 080V06303-5863 | 1 | 冷却液管 | Coolant pipe |
| 13 | MQ6-03216-8304 | 2 | 六角头螺栓 | Hex bolt |
| 14 | 080V06340-5111 | 1 | 托架 | Bracket |
