EXHAUST SYSTEM, MC11 ENGINE PARTS CATALOGS

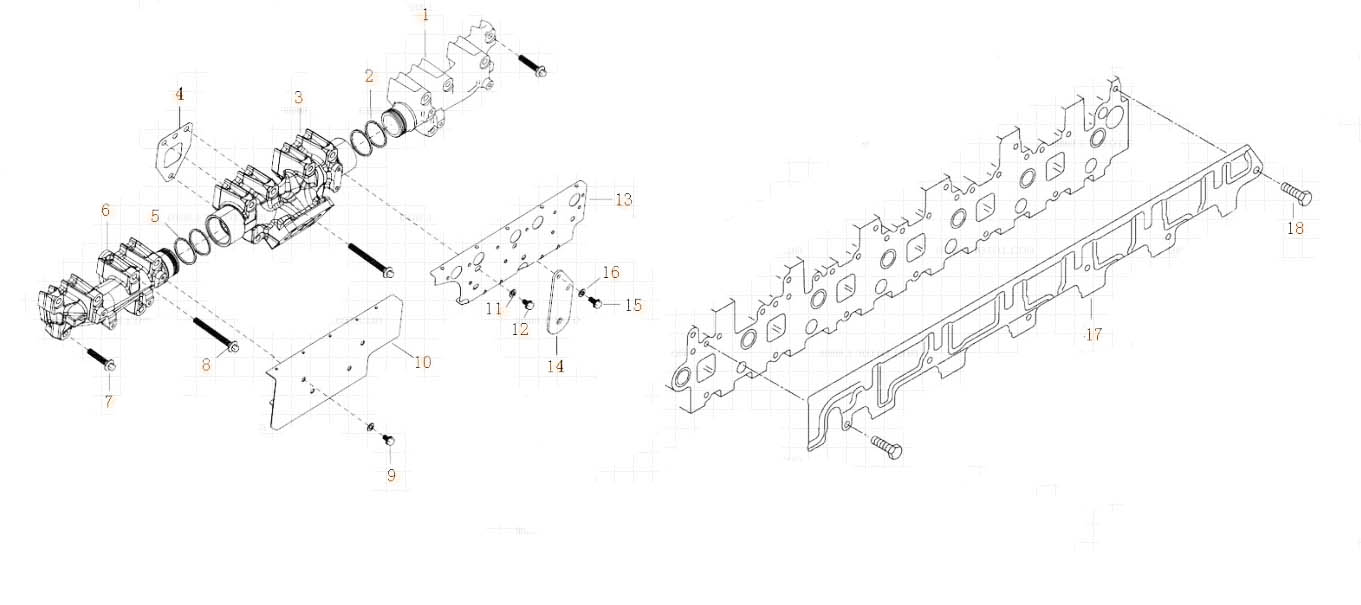

| EXHAUST SYSTEM | ||
| SINOTRUK MC11 ENGINE CATALOG | ||
| Serial | Part Number | Name |
| 1 | 200V08102-0116 | Front exhaust manifold |
| 2 | 200V98701-0120 | Exhaust pipe sealing ring |
| 3 | 200V08102-0234 | The exhaust manifold |
| 4 | 201V08901-0284 | Exhaust pipe gasket |
| 5 | 200V98701-0120 | Exhaust pipe sealing ring |
| 6 | 200V08102-0189 | After the exhaust manifold |
| 7 | 200V90490-0051 | Heat bolt M10X50 |
| 8 | 200V90490-0032 | Heat bolt M10X95 |
| 9 | MQ6-01289-0274 | Hex head bolt |
| 10 | 201V08120-5286 | 4-6 cylinder insulation board |
| 11 | MQ6-15013-0411 | washer |
| 12 | MQ6-01289-0274 | Hex head bolt |
| 13 | 201V08120-5276 | 1-3 cylinder insulation board |
| 14 | VG1092110148 | Air filter holder plate |
| 15 | MQ6-01289-0266 | Hex head bolt |
| 16 | MQ6-15013-0411 | washer |
| 17 | 201V08120-0403 | Insulation panels - Head |
| 18 | MQ6-03215-8403 | Hexagon flange bolts |
