OIL PAN, SITRAK MC11 ENGINE PARTS CATALOGS

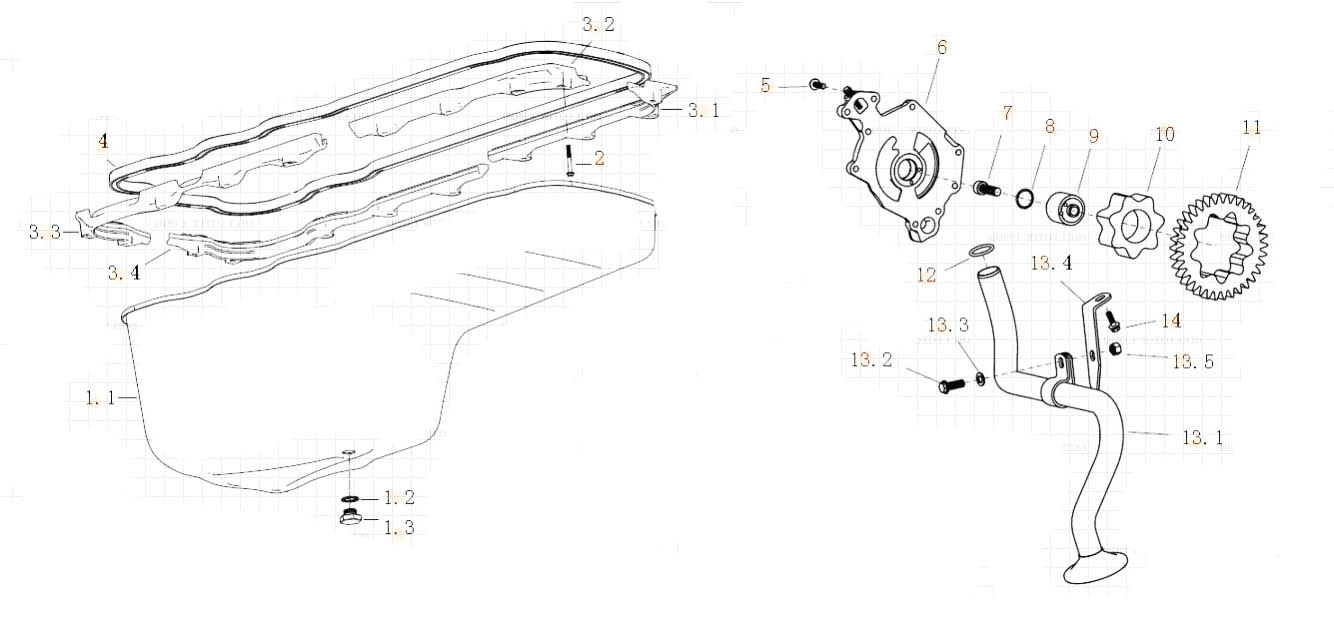

| OIL PAN | ||
| SINOTRUK MC11 ENGINE CATALOG | ||
| Serial | Part Number | Name |
| 201V05800-6370 | Oil pan | |
| 1.1 | 201V05801-5741 | Oil pan component |
| 1.2 | MQ6-56631-0110 | Combination gasket |
| 1.3 | MQ6-08042-0207 | Plugs |
| 2 | MQ6-03216-8310 | Hexagon flange bolts |
| 3.1 | 200V05840-0126 | Oil pan support |
| 3.2 | 200V05840-0139 | Oil pan support |
| 3.3 | 200V05840-0128 | Oil pan support |
| 3.4 | 200V05840-0129 | Oil pan support |
| 4 | 200V05904-0212 | Oil pan gasket |
| 5 | MQ6-03216-8204 | Hexagon flange bolts |
| 6 | 200V05103-5036 | Oil pump cover |
| 7 | MQ6-02191-0511 | Hexagon socket head cap screws |
| 8 | MQ6-56936-1150 | O-ring |
| 9 | 200V05105-5000 | Internal oil pump rotor shaft |
| 10 | 200V05104-0234 | Oil pump inner rotor |
| 11 | 200V05104-0251 | Oil pump outer rotor |
| 12 | MQ6-56333-3363 | O-ring |
| 13 | 200V05701-6055 | Suction pipe assembly |
| 13.1 | 200V05703-5364 | Suction tube assembly |
| 13.2 | MQ6-03216-8305 | Hexagon flange bolts |
| 13.3 | 200V90710-0080 | washer |
| 13.4 | 200V05740-0174 | Suction pipe bracket |
| 13.5 | MQ6-11240-0404 | Hexagon nuts |
| 14 | MQ6-03216-8303 | Hexagon flange bolts |
