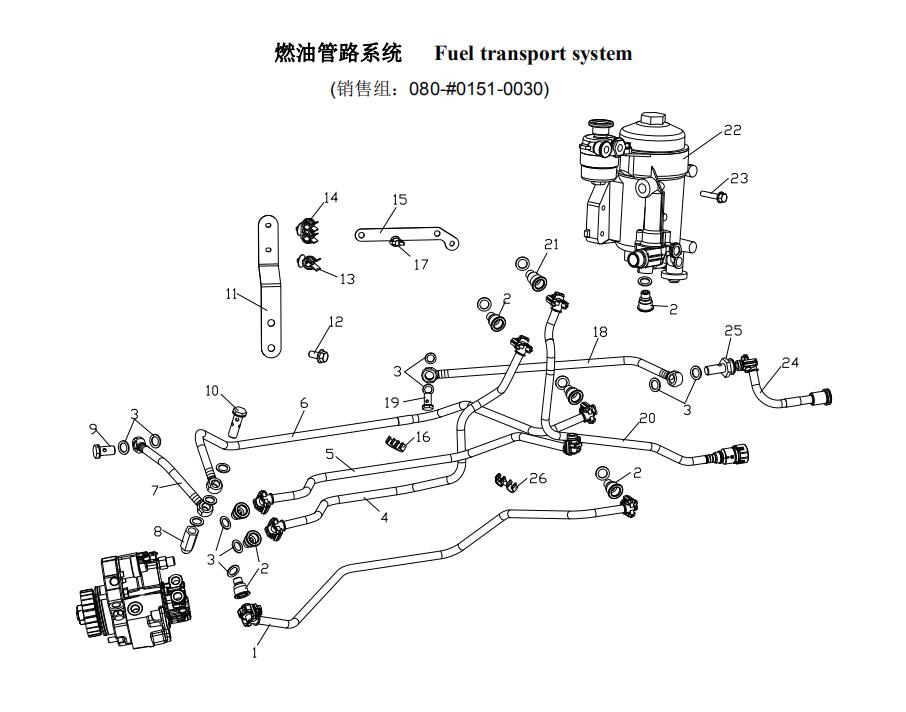

Fuel Transport System, Sitrak Truck Parts Catalogs
Keywords: sitrak parts, sitrak parts catalogs, sitrak mc07 catalogs
| 序号 No. |
图号 Part No. |
单车用量 Qty |
中文名称 Part Name |
Part Name |
| 1 | 081V12307-5001 | 1 | 喷油泵进油管 | Fuel pipe from filter to pump |
| 2 | 082V98150-0173 | 7 | 快插接头 | Quick-fit connector |
| 3 | MQ6-56631-0106 | 17 | 复合密封垫圈 | Sealing ring |
| 4 | 081V12304-5939 | 1 | 输油泵进油管 | Fuel pipe from pre-filter to feedpump |
| 5 | 081V12304-5695 | 1 | 滤清器进油管 | Fuel pipe from feedpump to filter |
| 6 | 081V12305-5304 | 1 | 喷油泵回油管 | Fuel leakage pipe from pump to filter |
| 7 | 080V12305-5303 | 1 | 喷油器回油管 | Fuel leakage pipe from injector |
| 8 | 080V98130-0052 | 1 | 螺栓接头 | Bolt connector |
| 9 | 90003962621 | 1 | 空心螺栓 | Hollow bolt |
| 10 | 080V98150-0176 | 1 | 空心螺栓 | Hollow bolt |
| 11 | 080V97485-0195 | 1 | 托架 | Bracket |
| 12 | MQ6-03216-8404 | 2 | 六角法兰面螺栓 | Hex bolt |
| 13 | 080V97401-0560 | 1 | 单管管夹 | Single pipe bracket |
| 14 | 080V97401-0551 | 1 | 双管管夹 | Double pipe bracket |
| 15 | 080V12340-0106 | 1 | 托架 | Bracket |
| 16 | 080V97401-0559 | 4 | 双管管夹 | Double pipe bracket |
| 17 | 080V97401-0557 | 1 | 扣紧装置 | Cord |
| 18 | 080V12305-7001 | 1 | 共轨回油管 | Fuel leakage pipe from rail |
| 19 | 080V98150-0175 | 1 | 空心螺栓 | Hollow bolt |
| 20 | 081V12304-5942 | 1 | 预滤器进油管 | Fuel pipe from tank to pre-filter |
| 21 | 082V98150-0172 | 1 | 快插接头 | Quick-fit connector |
| 22 | 201V12501-7289 | 1 | 燃油滤清器 | Filter |
| 23 | MQ6-03216-8308 | 3 | 六角法兰面螺栓 | Hex bolt |
| 24 | 081V12305-5261 | 1 | 滤清器回油管 | Fuel leakage pipe from filter |
| 25 | 082V98150-0171 | 1 | 空心快插接头 | Hollow quick-fit connector |
| 26 | 080V97401-0552 | 6 | 双管管夹 | Double pipe bracket |
