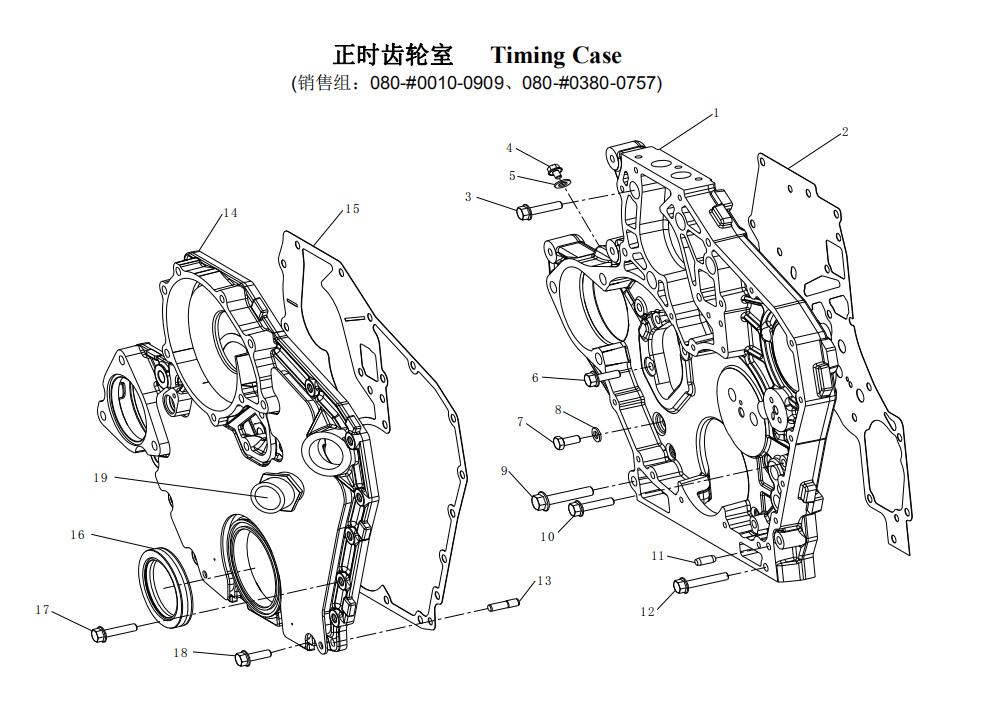

Time Case, Sitrak Truck Parts Catalogs
| 序号 No. |
图号 Part No. |
单车用量 Qty |
中文名称 Part Name |
Part Name |
| 1 | 080V01304-0066 | 1 | 正时齿轮室 | Timing case |
| 2 | 080V01903-0333 | 1 | 正时齿轮室垫片 | Timing case gasket |
| 3 | MQ6-03216-8307 | 4 | 六角头螺栓 | Hex bolt |
| 4 | MQ6-03219-0019 | 1 | 六角头螺栓 | Hex bolt |
| 5 | MQ6-56631-0101 | 1 | 密封圈 | Sealing ring |
| 6 | MQ6-03216-8305 | 4 | 六角头螺栓 | Hex bolt |
| 7 | MQ6-01284-7112 | 2 | 六角头螺栓 | Hex bolt |
| 8 | MQ6-15013-0411 | 2 | 垫圈 | Washer |
| 9 | MQ6-03216-8410 | 1 | 六角头螺栓 | Hex bolt |
| 10 | MQ6-03216-8307 | 2 | 六角头螺栓 | Hex bolt |
| 11 | MQ6-22220-1208 | 2 | 弹性销 | Spring pin |
| 12 | MQ6-03216-8309 | 2 | 六角头螺栓 | Hex bolt |
| 13 | 080V91301-0086 | 2 | 定位销 | Centering pin |
| 14 | 080V01305-5144 | 1 | 正时齿轮室盖 | Timing cover |
| 15 | 080V01903-0322 | 1 | 正时齿轮室盖垫片 | Timing cover gasket |
| 16 | 080V01510-0280 | 1 | 前油封 | Radial shaft seal gasket |
| 17 | MQ6-03216-8307 | 6 | 六角头螺栓 | Hex bolt |
| 18 | MQ6-03216-8305 | 3 | 六角头螺栓 | Hex bolt |
| 19 | 200V01810-0043 | 1 | 加油接管 | Oil Filler Pipe |
