GP Housing & Cover, Sitrak 16S-1650 Parts Catalogs
Keywords: sitrak parts, sitrak parts catalogs, sitrak gearbox 16s-1650 catalogs

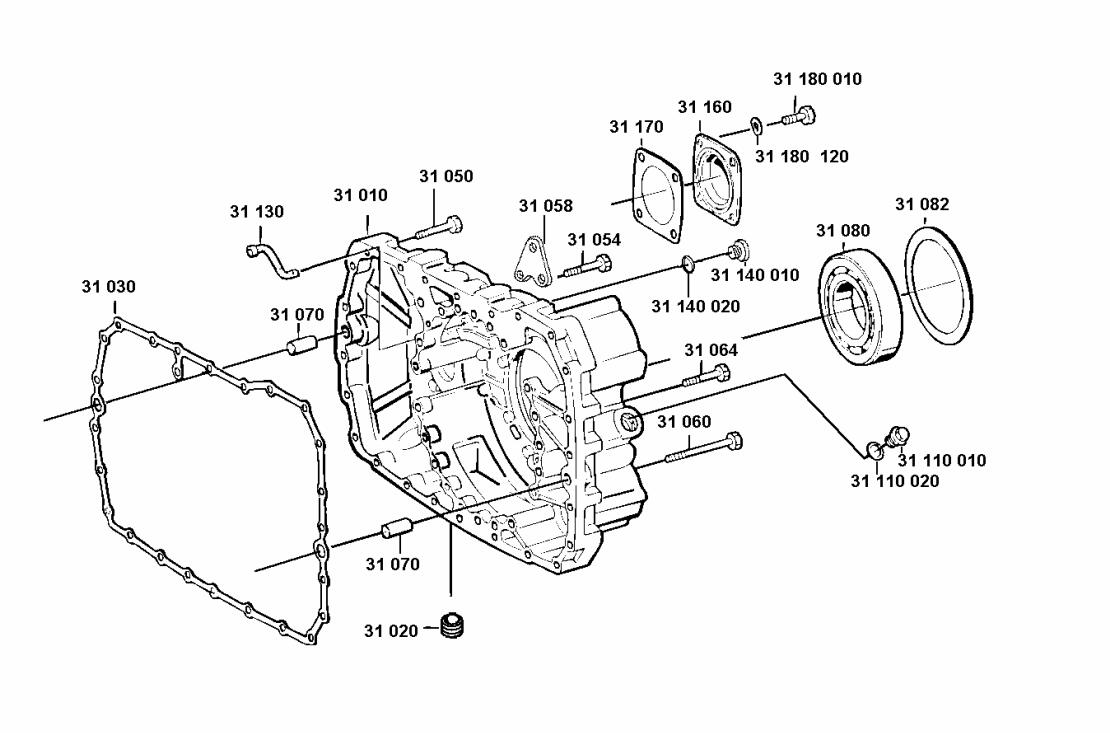

| FIG. | QTY. | PART-NUMBER | DESCRIPTION | ||
| 010 | 1 | 91301162 | HOUSING | ||
| 020 | 1 | SCREW PLUG | |||
| 1 | 736303005 | SCREW PLUG | |||
| 030 | 1 | 1313301037 | GASKET | ||
| 050 | 17 | HEX CAP SCREW | |||
| 17 | 636010168 | HEX CAP SCREW | |||
| 052 | 9 | HEX CAP SCREW | |||
| 9 | 636010168 | HEX CAP SCREW | |||
| 054 | 2 | HEX CAP SCREW | |||
| 2 | 636010168 | HEX CAP SCREW | |||
| 058 | 1 | 91301115 | SUPPORT PLATE | ||
| 060 | 2 | HEX CAP SCREW | |||
| 2 | 636010190 | HEX CAP SCREW | |||
| 064 | 1 | 636010494 | HEX CAP SCREW | ||
| 068 | 2 | 636010172 | HEX CAP SCREW | ||
| 070 | 2 | 501398808 | CYLINDRICAL PIN | ||
| 080 | 1 | 750116394 | BALL BEARING | ||
| 082 | 1 | SHIM | |||
| 1 | 730003515 | SHIM | |||
| 1 | 4005302034 | SHIM | |||
| 1 | 730100115 | SHIM | |||
| 1 | 730100846 | SHIM | |||
| 1 | 730100116 | SHIM | |||

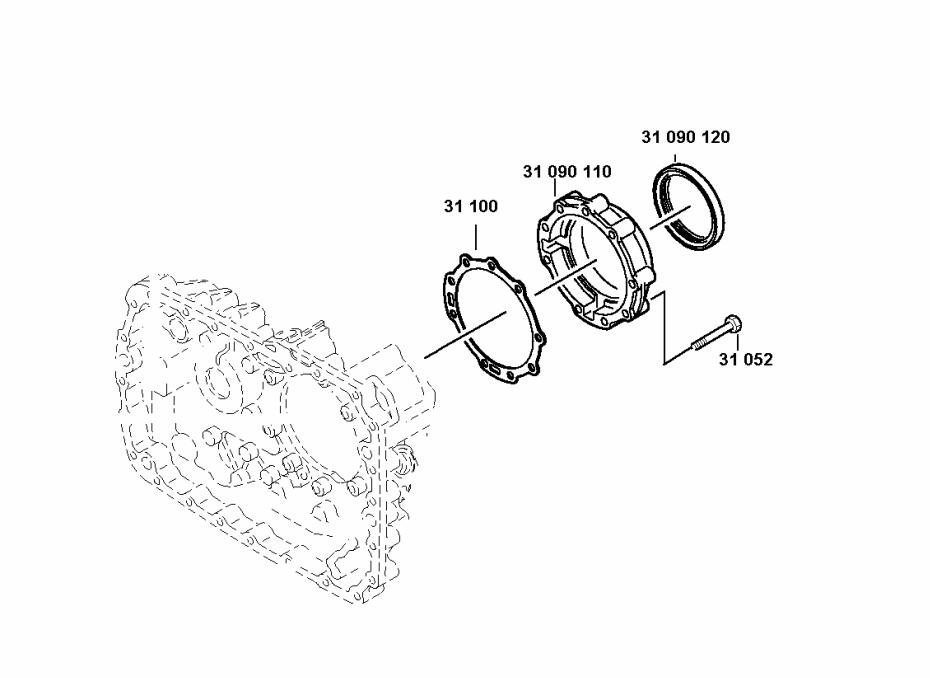

| 090 | 1 | COVER | |||
| /110 | 1 | 1296301006 | COVER | ||
| /120 | 1 | 750111341 | SHAFT SEAL | ||
| 100 | 1 | 1313301036 | GASKET | ||
| 110 | 1 | SCREW PLUG | |||
| /010 | 1 | 636302066 | SCREW PLUG | ||
| /020 | 1 | 634801324 | SEALING RING | ||
| 130 | 1 | 1296301008 | SPRAY TUBE | ||
| 140 | SCREW PLUG + RING | ||||
| /010 | 1 | 636302053 | SCREW PLUG | ||
| /020 | 1 | 634801013 | SEALING RING | ||
| 160 | 1 | 1304301034 | COVER | ||
| 170 | 1 | 1238 308 201 | GASKET | ||
| 180 | 4 | HEX CAP SCREW | |||
| /010 | 4 | 636016005 | HEX CAP SCREW | ||
| /020 | 4 | 630302021 | SPRING WASHER | ||
