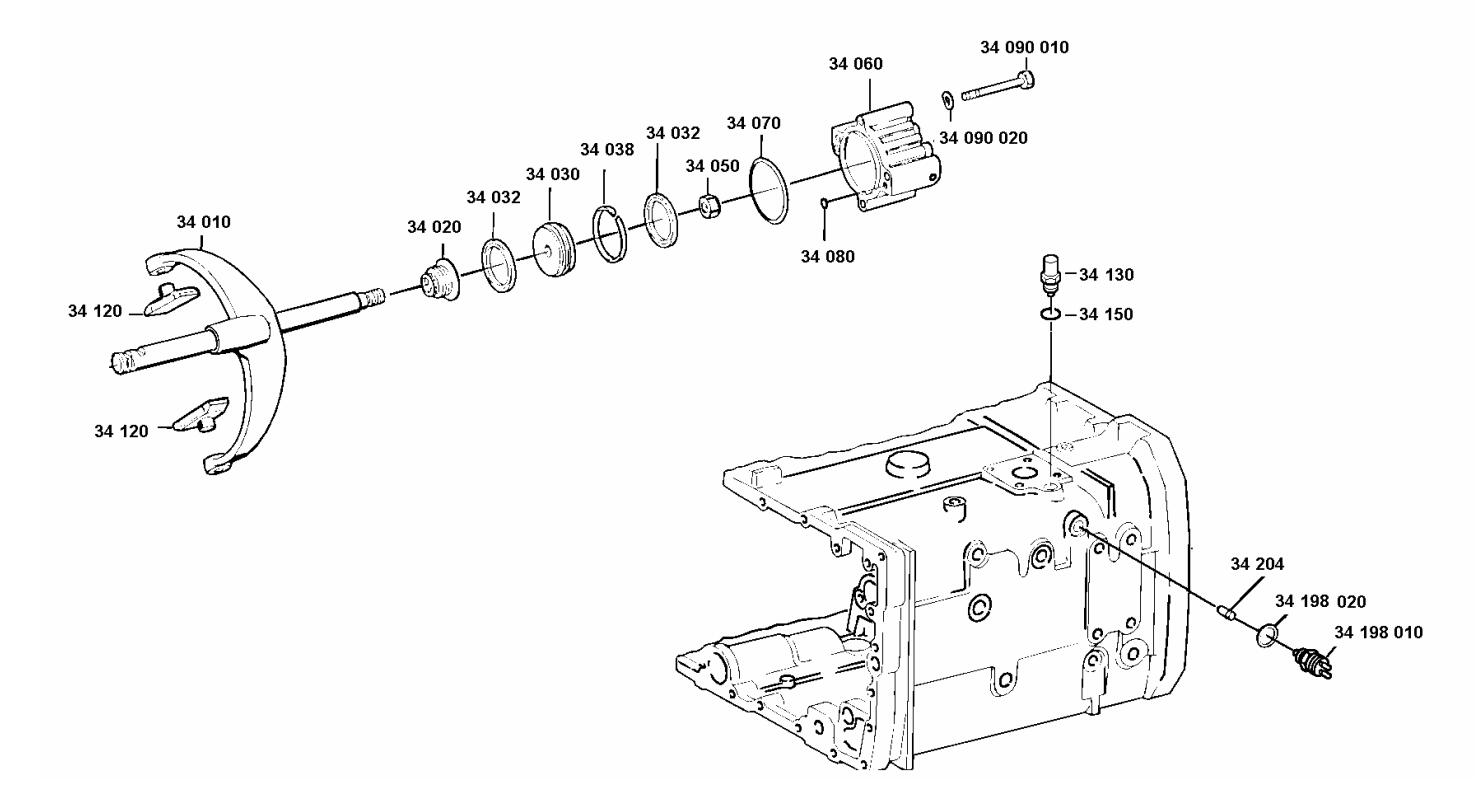

GP Shift System, Sitrak Parts Catalogs
| FIG. | QTY. | PART-NUMBER | DESCRIPTION | ||
| 010 | 1 | 91,234,006 | GEAR SHIFT RAIL | ||
| 020 | 1 | 750,112,034 | FLANGE PACKING | ||
| 030 | 1 | 1,296,334,039 | PISTON | ||
| 032 | 2 | 734,317,150 | U-RING | ||
| 038 | 1 | 750,112,066 | GUIDE RING | ||
| 050 | 1 | 637,011,574 | LOCKING NUT | ||
| 060 | 1 | 1,295,334,075 | CYLINDER | ||
| 070 | 1 | 634,314,019 | O-RING | ||
| 080 | 1 | 634,314,020 | O-RING | ||
| 090 | 4 | HEX CAP SCREW | |||
| /010 | 4 | 636,010,550 | HEX CAP SCREW | ||
| /020 | 4 | 630,302,091 | SPRING WASHER | ||
| 120 | 2 | 1,296,334,004 | SLIDING PAD | ||
| 130 | 1 | 1,313,207,004 | DETENT PLUNGER | ||
| 150 | 1 | 634,801,050 | SEALING RING | ||
| 198 | 1 | SWITCH | |||
| /010 | 1 | 501,210,058 | SWITCH | ||
| /020 | 1 | 634,801,062 | SEALING RING | ||
| 204 | 1 | 1,295,212,006 | PIN | ||
