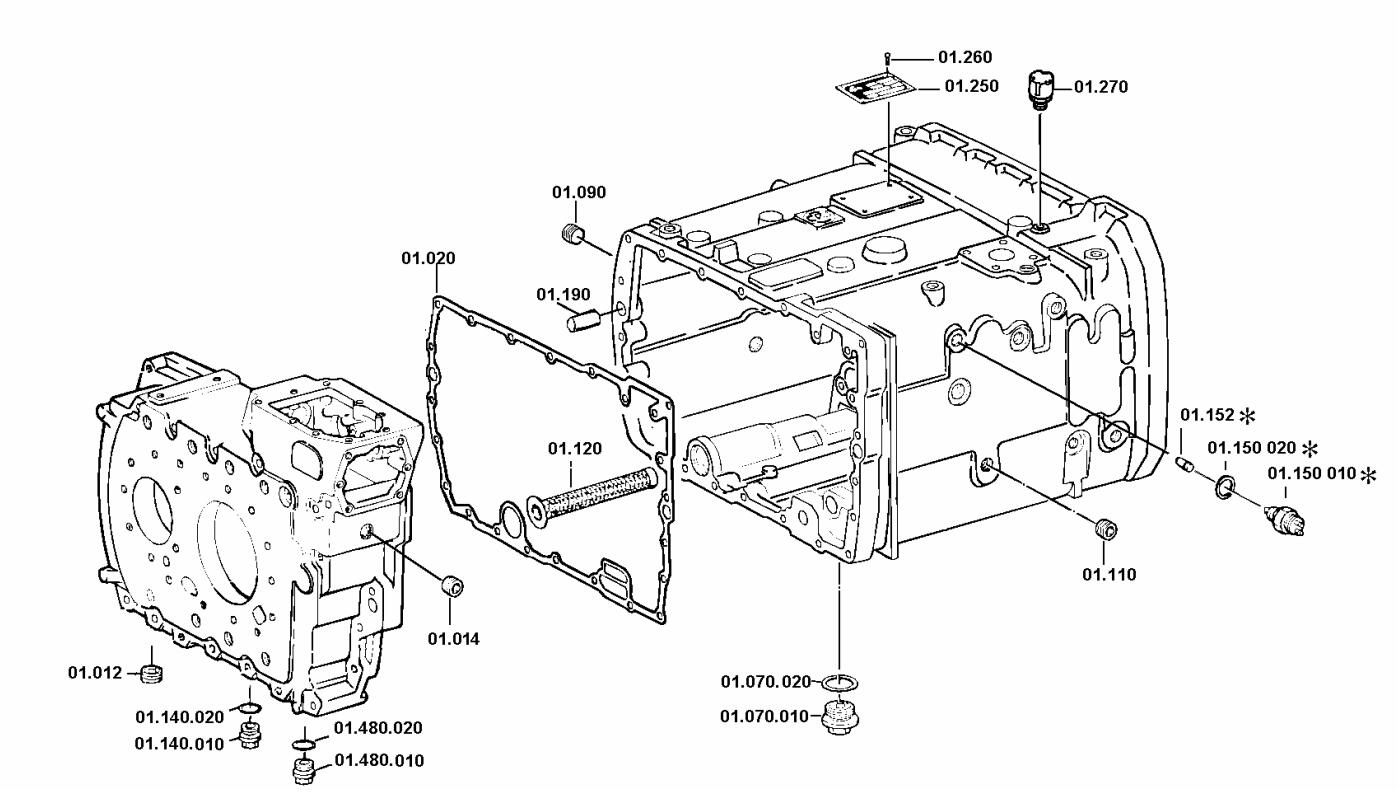

Gearbox Housing, Sitrak Parts Catalogs
| FIG. | QTY. | PART-NUMBER | DESCRIPTION | ||
| 010 | 1 | 91301136 | HOUSING I | ||
| 012 | 1 | SCREW PLUG | |||
| 1 | 736303005 | SCREW PLUG | |||
| 014 | 1 | 501398708 | SCREW PLUG | ||
| 020 | 1 | 1313301038 | GASKET | ||
| 030 | 1 | 91301164 | HOUSING II | ||
| 042 | 2 | HEX CAP SCREW | |||
| 2 | 636010172 | HEX CAP SCREW | |||
| 050 | 6 | HEX CAP SCREW | |||
| 6 | 636010172 | HEX CAP SCREW | |||
| 058 | 13 | HEXAGON SCREW | |||
| 13 | 0636 010 205 | HEXAGON SCREW | |||
| 064 | 2 | HEXAGON SCREW | |||
| 2 | 636010205 | HEXAGON SCREW | |||
| 070 | 1 | MAGNETIC SCREW PLUG | |||
| /010 | 1 | 501398755 | MAGNETIC SCREW PLUG | ||
| /020 | 1 | 634801321 | SEALING RING | ||
| 090 | 1 | SCREW PLUG | |||
| 1 | 736303005 | SCREW PLUG | |||
| 110 | 1 | SCREW PLUG | |||
| 1 | 736303005 | SCREW PLUG | |||
| 120 | 1 | 750131001 | FILTER | ||
| 130 | 1 | 91201013 | SPRAY TUBE | ||
| 140 | 1 | SCREW PLUG | |||
| /010 | 1 | 636302045 | SCREW PLUG | ||
| /020 | 1 | 634801074 | SEALING RING | ||
| 150 | 1 | SWITCH | |||
| /010 | 1 | 501210058 | SWITCH | ||
| /020 | 1 | 634801062 | SEALING RING | ||
| 152 | 1 | 1295212007 | PIN | ||
| 160 | 1 | 501398714 | ROLLER BEARING | ||
| 170 | 1 | RETAINING RING | |||
| 1 | 630502097 | RETAINING RING | |||
| 1 | 630502166 | RETAINING RING | |||
| 1 | 630502167 | RETAINING RING | |||
| 1 | 630502168 | RETAINING RING | |||
| 1 | 630502169 | RETAINING RING | |||
| 1 | 630502170 | RETAINING RING | |||
| 1 | 630502216 | RETAINING RING | |||
| 1 | 0630 502 217 | RETAINING RING | |||
| 180 | 1 | 1297301004 | OIL COLL.PLATE | ||
| 190 | 2 | 501398808 | CYLINDRICAL PIN | ||
| 200 | 1 | 1295305052 | SPUR GEAR REVERSE | ||
| 210 | 2 | 750115011 | NEEDLE CAGE | ||
| 220 | 1 | 730150064 | THRUST WASHER | ||
| 230 | 1 | 1295305056 | REV.IDLER SHAFT | ||
| 234 | 1 | 1295305057 | WASHER | ||
| 240 | 1 | 501398785 | LOCKING SCREW | ||
| 250 | 1 | 91307299 | TYPE PLATE | ||
| 260 | 4 | 501398460 | BLIND RIVET | ||
| 270 | 1 | BREATHER | |||
| 1 | 501202797 | BREATHER | |||
| 320 | 1 | 91301176 | GEARBOX SUPPORT | ||
| 330 | 2 | 636015264 | HEX CAP SCREW | ||
| 480 | 1 | SCREW PLUG | |||
| /010 | 1 | 636302045 | SCREW PLUG | ||
| /020 | 1 | 634801074 | SEALING RING | ||
