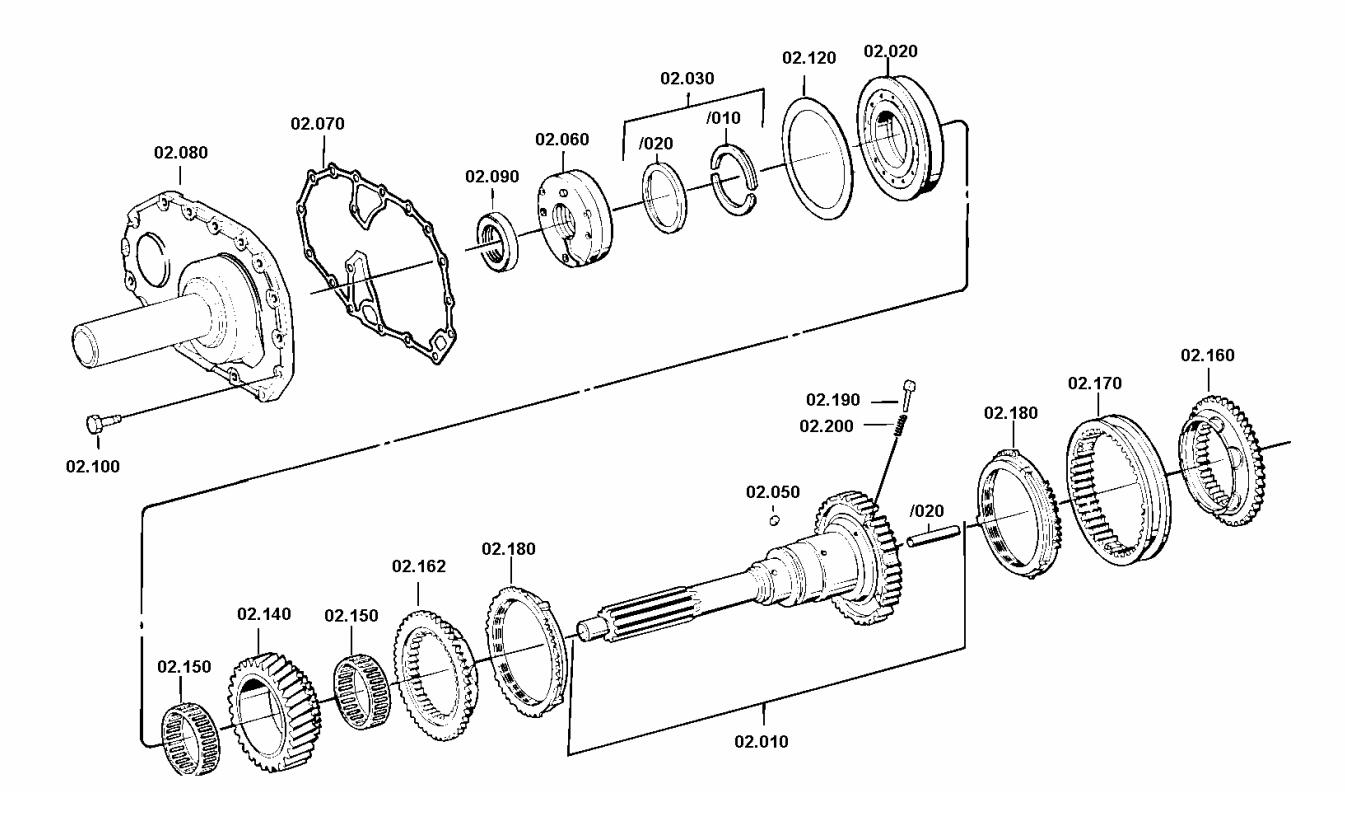

Input Shaft, Sitrak 16S-1650 Gearbox Parts Catalogs
Keywords: sitrak parts, sitrak parts catalogs, sitrak gearbox 16s-1650 catalogs
| FIG. | QTY. | PART-NUMBER | DESCRIPTION | ||
| 010 | 1 | 91202062 | INPUT SHAFT | ||
| /020 | 1 | 730062323 | PIPE | ||
| 020 | 1 | 750118130 | CY.ROLL.BEARING | ||
| 030 | 1 | SPLIT RING | |||
| /010 | 1 | 1295202034 | SPLIT RING | ||
| 1 | SPLIT RING | ||||
| 1 | 730105156 | SPLIT RING | |||
| 1 | 730105155 | SPLIT RING | |||
| 1 | 730105154 | SPLIT RING | |||
| /020 | 1 | 730062579 | RETAINING RING | ||
| 1 | 1295202033 | SPLIT RING | |||
| /010 | 1 | SPLIT RING | |||
| 1 | 730103244 | SPLIT RING | |||
| 1 | 730104338 | SPLIT RING | |||
| 1 | 730104337 | SPLIT RING | |||
| 1 | 730103941 | SPLIT RING | |||
| 1 | 730103940 | SPLIT RING | |||
| 1 | 730103939 | SPLIT RING | |||
| 1 | 730103938 | SPLIT RING | |||
| 1 | 730103937 | SPLIT RING | |||
| 1 | 730103936 | SPLIT RING | |||
| 1 | 730103935 | SPLIT RING | |||
| /020 | 1 | 730061816 | RETAINING RING | ||
| 050 | 1 | 635470012 | CYL.ROLLER | ||
| 060 | 1 | 1295202054 | PUMP | ||
| 070 | 1 | 1313302014 | GASKET | ||
| 080 | 1 | 91302306 | CONN. PLATE | ||
| 090 | 734310111 | SHAFT SEAL | |||
| 100 | 16 | HEX.CAP.SCREW | |||
| 16 | 636015120 | HEX.CAP.SCREW | |||
| 120 | 1 | SHIM | |||
| 1 | 730103804 | SHIM | |||
| 1 | 730108096 | SHIM | |||
| 1 | 730102505 | SHIM | |||
| 1 | 730102504 | SHIM | |||
| 1 | 730102503 | SHIM | |||
| 140 | 1 | 91302294 | HELICAL GEAR | ||
| 150 | 2 | 735320896 | NEEDLE CAGE | ||
| 160 | 1 | 91304311 | CLUTCH BODY | ||
| 162 | 1 | 91304310 | CLUTCH BODY | ||
| 170 | 1 | 1310304202 | SLIDING SLEEVE | ||
| 180 | 2 | 1297304484 | SYNCHRONIZER RING | ||
| 190 | 3 | 1297304436 | PRESSURE PIECE | ||
| 200 | 3 | 732040409 | COMPRESSION SPRING | ||
