Planetary Drive & Output Flange, Sitrak Parts Catalogs
| FIG. | QTY. | PART-NUMBER | DESCRIPTION | ||

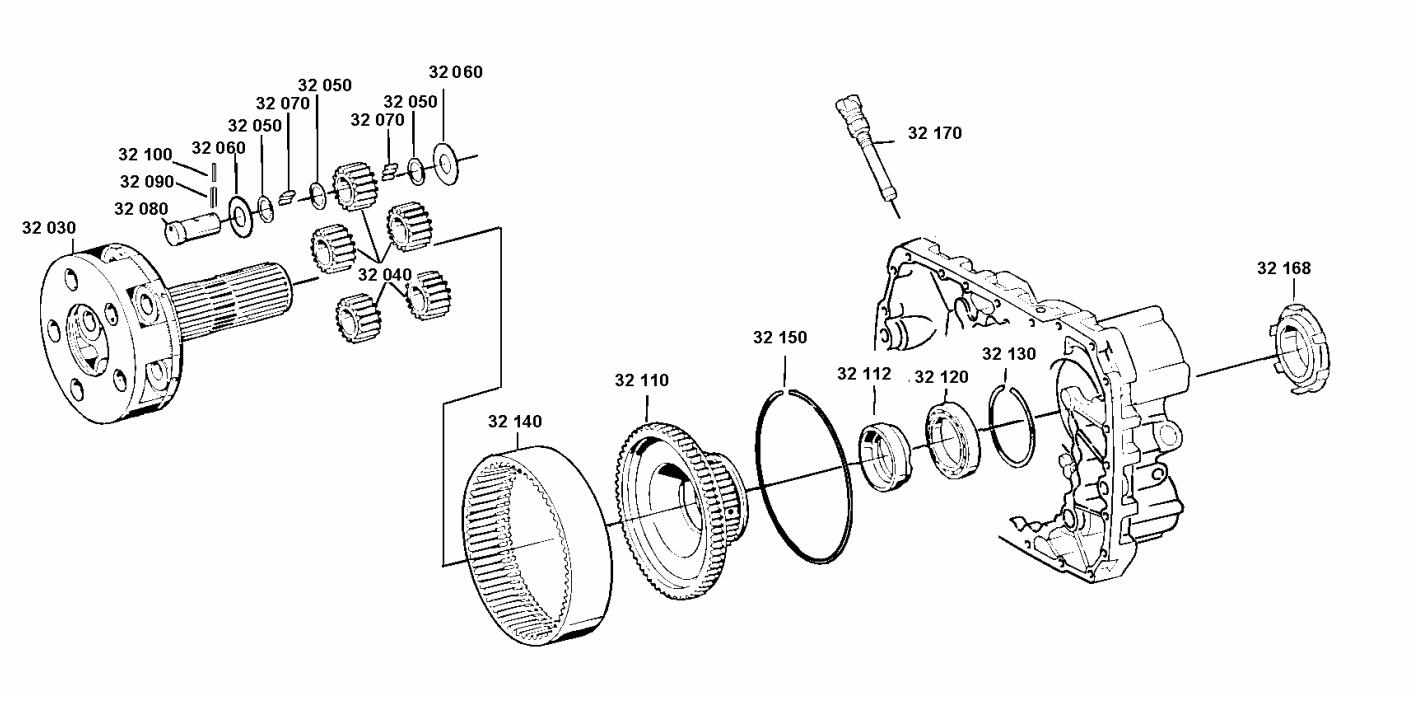

| 030 | 1 | 91232022 | PLANET CARRIER | ||
| 040 | 1 | 1297232023 | GEAR SET | ||
| 050 | 15 | 730103846 | INTERM.WASHER | ||
| 060 | 10 | 501306212 | SHIM | ||
| 070 | 120 | 750119109 | ROLLER | ||
| 080 | 5 | 1297332109 | PLANET SHAFT | ||
| 090 | 5 | 631329050 | SLOT.PIN | ||
| 100 | 5 | 631329017 | SLOT.PIN | ||
| 110 | 1 | 91332022 | DIFFERENTIAL GEAR | ||
| 112 | 1 | INTERMEDIATE RING | |||
| 1 | 1297332122 | INTERMEDIATE RING | |||
| 1 | 1297332002 | INTERMEDIATE RING | |||
| 120 | 1 | 750116165 | BALL BEARING | ||
| 130 | 1 | SNAP RING | |||
| 1 | 730513755 | SNAP RING | |||
| 1 | 730513756 | SNAP RING | |||
| 1 | 730513757 | SNAP RING | |||
| 1 | 730513758 | SNAP RING | |||
| 1 | 730513759 | SNAP RING | |||
| 1 | 730513760 | SNAP RING | |||
| 140 | 1 | 1297332080 | RING GEAR | ||
| 150 | 1 | 730505055 | LOCKING WIRE | ||
| 168 | 1 | PULSE WASHER | |||
| /010 | 1 | 91338045 | PULSE WASHER | ||
| /020 | 1 | 91338042 | PULSE WASHER | ||
| 170 | 1 | 501210859 | PULSE SENSOR | ||

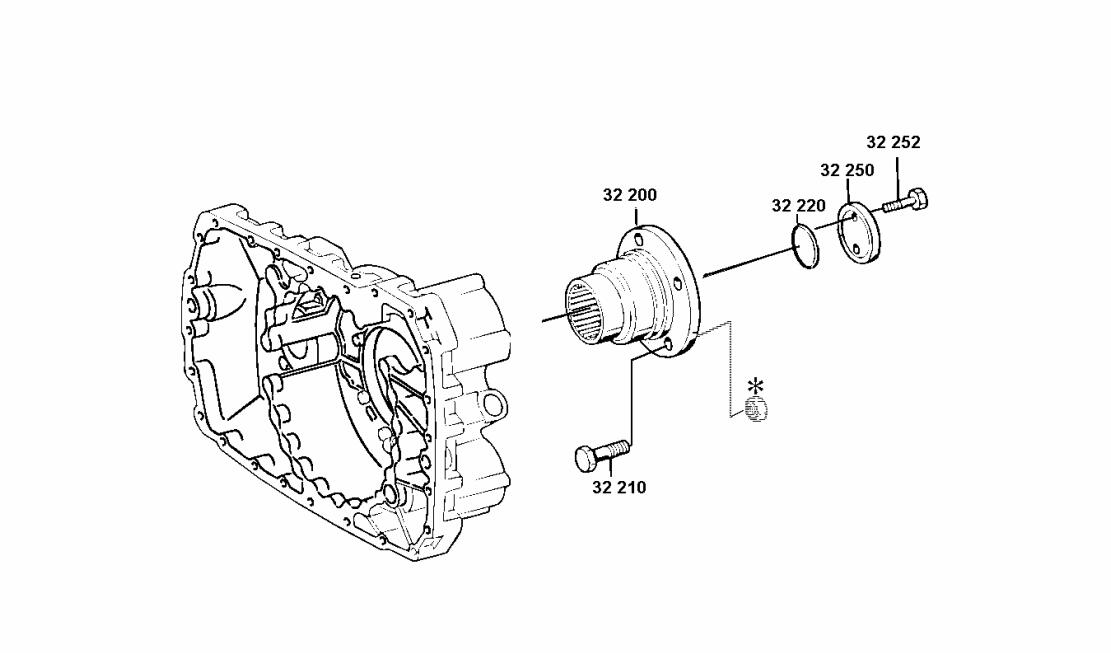

| 200 | 1 | 1297338041 | OUTPUT FLANGE | ||
| 210 | 4 | HEXAGON SCREW | |||
| 4 | 636020211 | HEXAGON SCREW | |||
| 220 | 1 | 634314015 | O-RING | ||
| 250 | 1 | 1295332051 | FIXING WASHER | ||
| 252 | 2 | 636011540 | HEX CAP SCREW | ||
